Brand:Bently Nevada PLC Item No.:3500/42M Product Origin:USA Product Dimensions:241.3 x 24.4 x 241.8 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

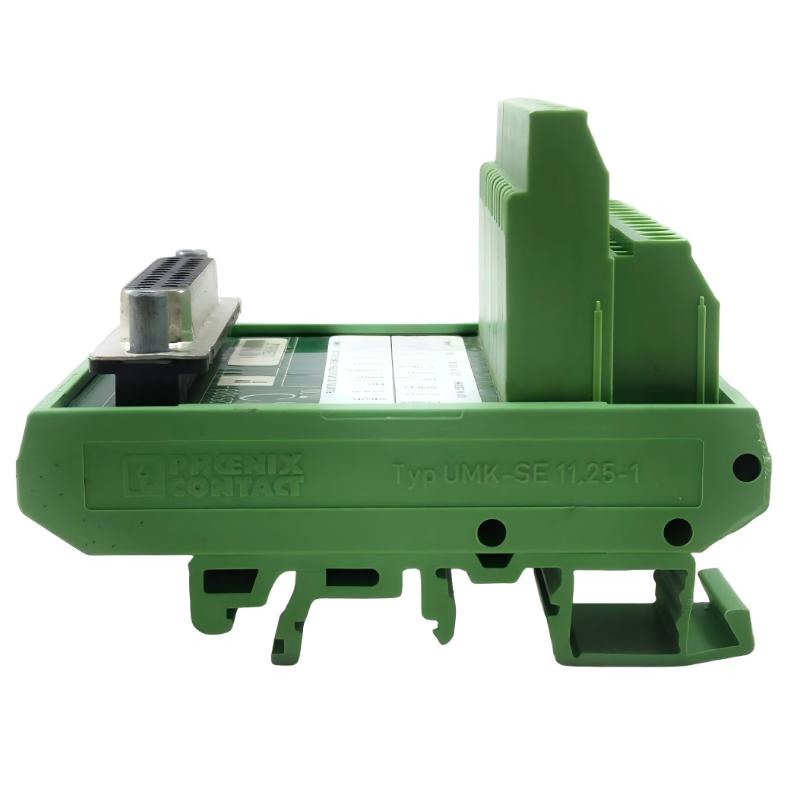

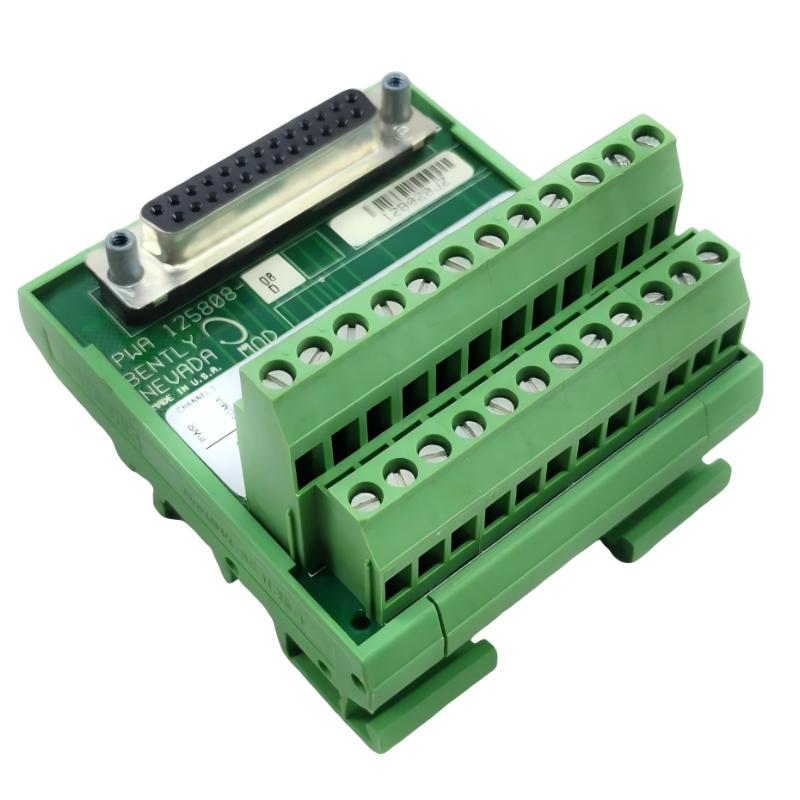

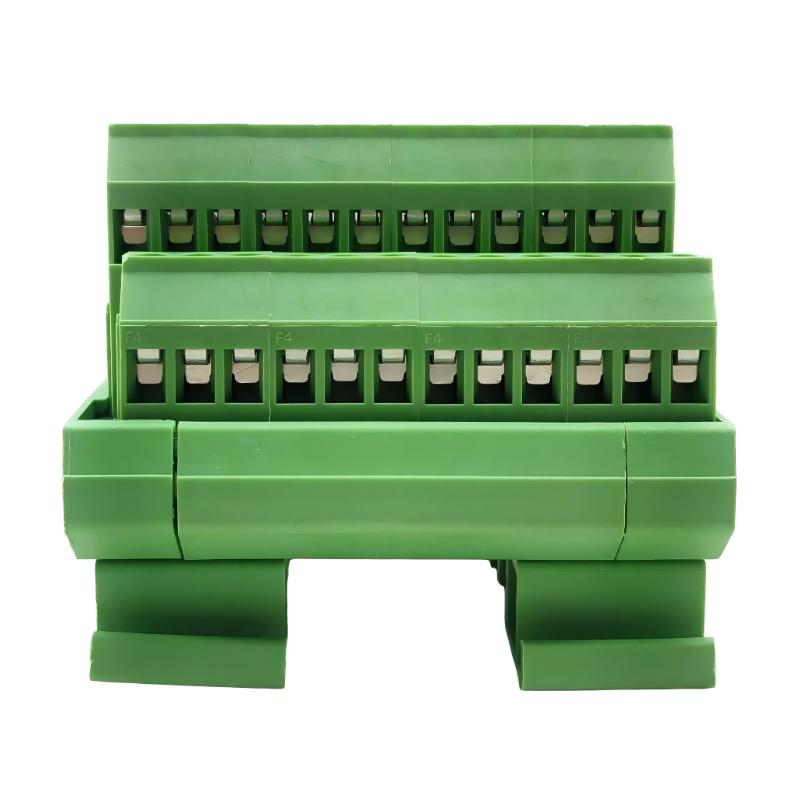

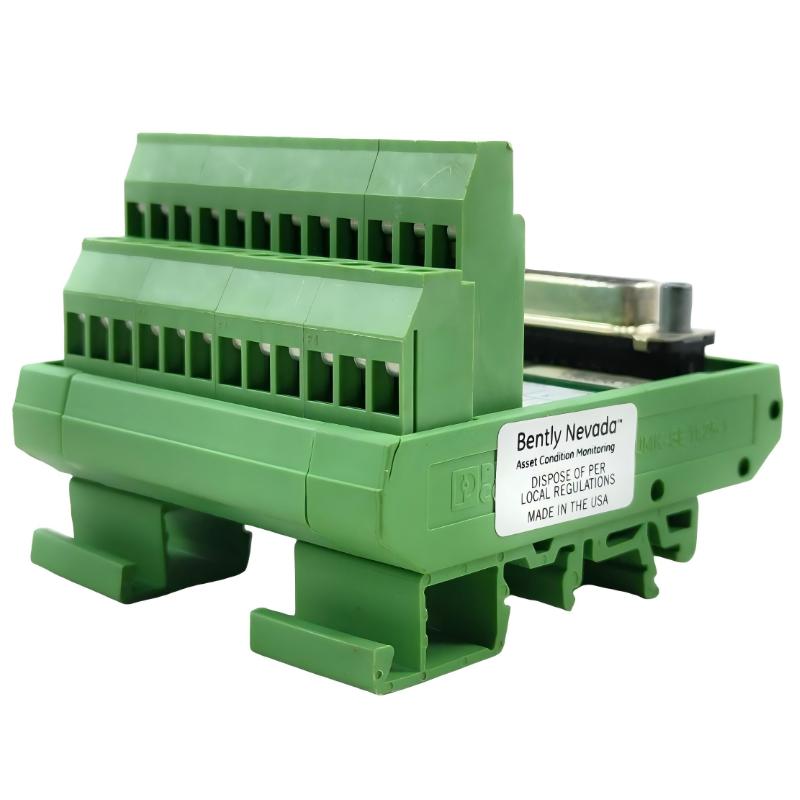

The Bently Nevada 3500/42M 125808-02 Proximitor Earthquake External Wiring Terminals module is designed to provide reliable external wiring connections for industrial machinery monitoring and seismic protection systems. It serves as a critical interface between field devices and the Bently Nevada 3500 monitoring platform, ensuring stable signal transmission for vibration and earthquake monitoring applications.
Technical Specifications
Parameter
Specification
Product Type
External Wiring Terminal Module
Manufacturer
Bently Nevada
Series
3500
Model
3500/42M 125808-02
Function
External signal wiring termination
Application
Proximitor and earthquake monitoring
Compatibility
Bently Nevada 3500 monitoring systems
Installation Type
Rack-mounted
Operating Environment
Industrial automation systems
Signal Support
Vibration and seismic monitoring
Dimensions
241.3 × 24.4 × 241.8 mm
Weight
0.91 kg
Recommended Related Models
Model
Product Name
3500/42M
Bently Nevada Proximitor Monitoring Module
3500/40M
Bently Nevada Vibration Monitoring Module
125840-01
Bently Nevada External Termination Module
3500/25
Bently Nevada Keyphasor Module
Popular Related Models
Model
Product Name
330180-30-05
Bently Nevada 3300 XL Preamplifier Sensor
330101-00-47-10-02-00
Bently Nevada 3300 XL 8 mm Proximity Probe
1900/65A
Bently Nevada General Purpose Equipment Monitor
3500/22M
Bently Nevada Transient Data Interface Module
Applications
• External wiring termination for Proximitor and seismic monitoring systems
• Connection interface for vibration and earthquake monitoring equipment
• Integration with Bently Nevada 3500 machinery protection systems
• Signal distribution and field wiring management in industrial monitoring applications
• Turbine, compressor, and rotating equipment protection systems
• Industrial condition monitoring installations in power generation facilities
Advantages
• Reliable external wiring interface for stable signal transmission
• Designed for seamless integration with Bently Nevada 3500/42M monitoring systems
• Industrial-grade construction suitable for continuous operation environments
• Simplifies field wiring organization and maintenance procedures
• High connection stability reduces signal interruption risks
Q1: What is the primary function of this module?
It provides external wiring termination for Proximitor and earthquake monitoring systems.
Q2: Which monitoring platform is it designed for?
It is designed for use with Bently Nevada 3500/42M monitoring systems.
Q3: Can it be used in seismic monitoring applications?
Yes, it supports earthquake and seismic monitoring signal connections.
Q4: What equipment commonly uses this terminal module?
It is used in turbines, compressors, pumps, and industrial rotating machinery systems.
Q5: Is it suitable for industrial environments?
Yes, it is engineered for harsh industrial and continuous monitoring environments.
Q6: Does it improve wiring management?
Yes, it helps organize and simplify field wiring connections.
Q7: Is the module rack-mounted?
Yes, it is designed for installation in industrial rack systems.
Q8: Can it support vibration monitoring signals?
Yes, it supports vibration and proximity monitoring signal connections.
Q9: Does it require specialized maintenance?
Routine industrial inspection and standard maintenance procedures are generally sufficient.
Q10: Is this module widely used in machinery protection systems?
Yes, it is widely deployed in industrial machinery monitoring and protection installations.
