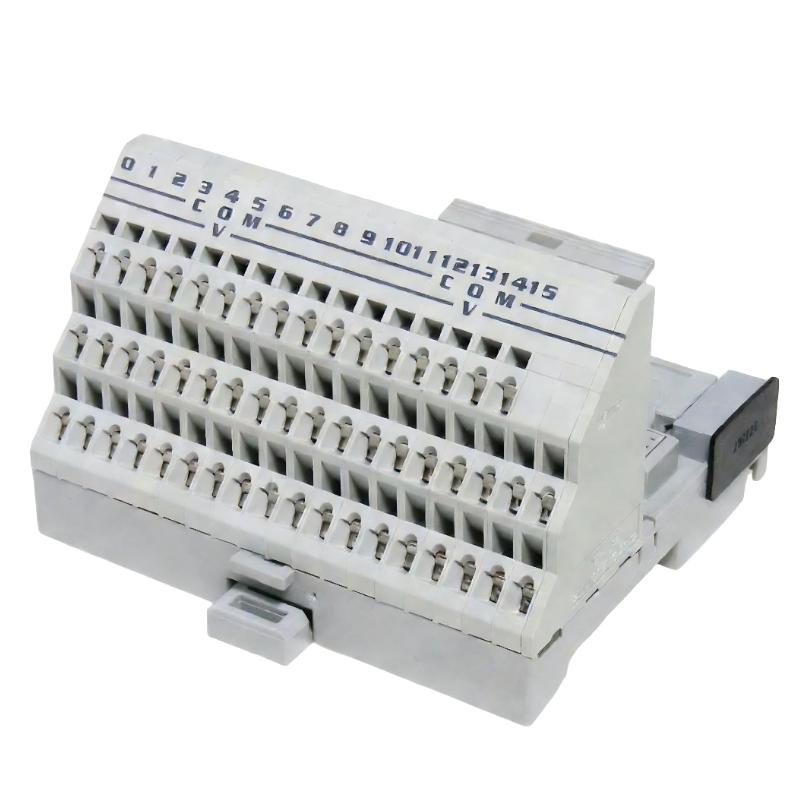

Allen Bradley 1794-TB3S Flex I/O Terminal Base Unit

Applications

The Allen-Bradley 1794-TB3S Flex I/O Terminal Base Unit is a foundational wiring interface used in distributed automation systems. It provides secure and organized field connections for Flex I/O modules in industrial control environments. Common applications include:

• Distributed I/O systems in PLC-based automation
• Industrial machine control panels
• Process control in manufacturing and utilities
• Motor control and auxiliary signal wiring
• PowerFlex-related control system architectures
• Factory automation and production lines
• Remote field signal termination for sensors and actuators
• Conveyor, packaging, and material handling systems

Advantages

• Spring-clamp termination ensures fast, tool-efficient wiring
• Stable electrical contact improves long-term signal reliability
• Compact footprint supports high-density control cabinet design
• Modular Flex I/O architecture allows easy expansion
• Reduces wiring time and installation complexity
• Designed for vibration-resistant industrial environments
• Supports mixed analog and digital I/O modules
• Improves maintenance efficiency with plug-in module design
• High compatibility across Flex I/O family modules
• Reliable performance in continuous industrial operation

Technical FAQs

1. What is the function of the 1794-TB3S?

It serves as a terminal base for Flex I/O modules, providing field wiring connections and backplane interface.

2. Is it a control module or power device?

No, it is a passive terminal base used for wiring and module mounting.

3. What type of wiring method does it use?

It uses spring-clamp terminals for secure and vibration-resistant connections.

4. Can it be used with analog and digital modules?

Yes, it supports both depending on the installed Flex I/O module type.

5. Is it compatible with PowerFlex systems?

It can be used in automation systems that integrate PowerFlex drives via PLC or I/O networks.

6. What makes TB3S different from other TB bases?

It is designed for 3-wire Flex I/O configurations with a spring-clamp termination style.

7. Does it require external power?

Power is supplied through the Flex I/O system backplane and terminal configuration, not the base itself.

8. Can modules be replaced without rewiring?

Yes, Flex I/O architecture allows module replacement while retaining base wiring.

9. Is it suitable for harsh environments?

Yes, it is rated for industrial vibration, shock, and temperature variation conditions.

10. Why is a terminal base important in Flex I/O systems?

It provides the physical and electrical interface between field wiring and I/O modules, ensuring system stability and scalability.
