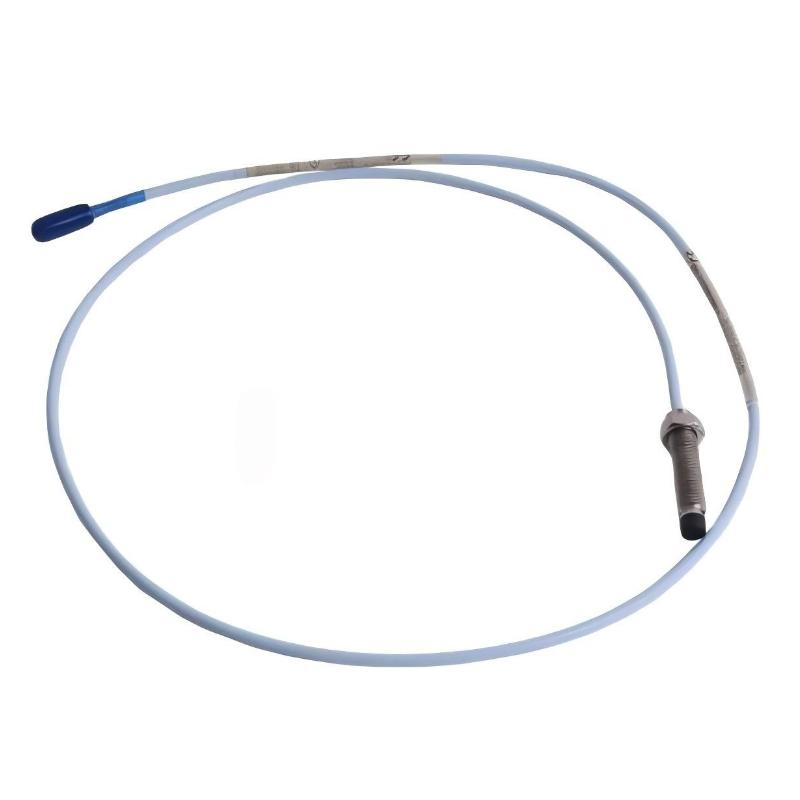

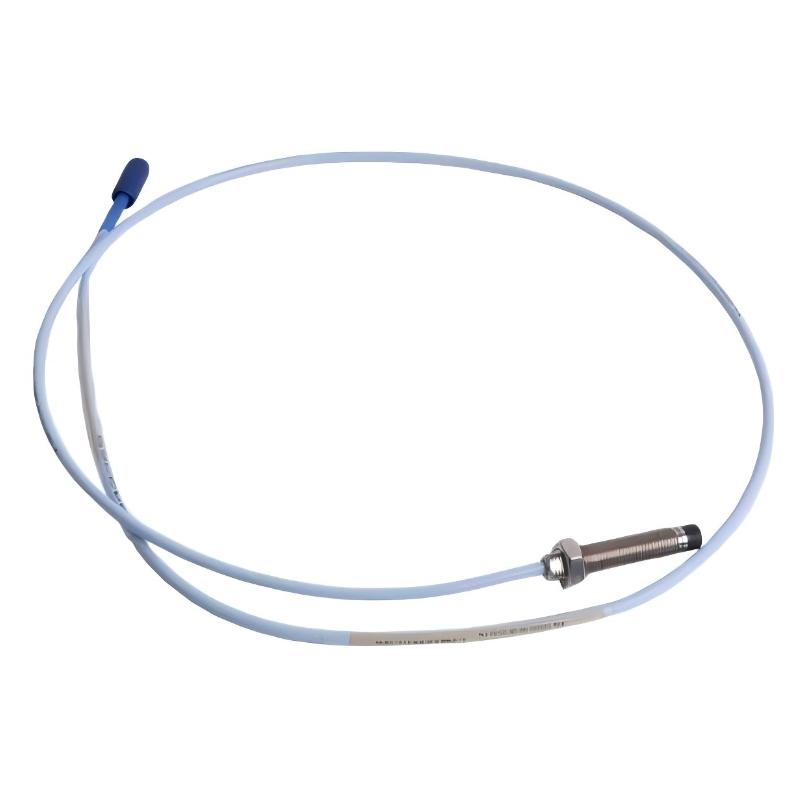

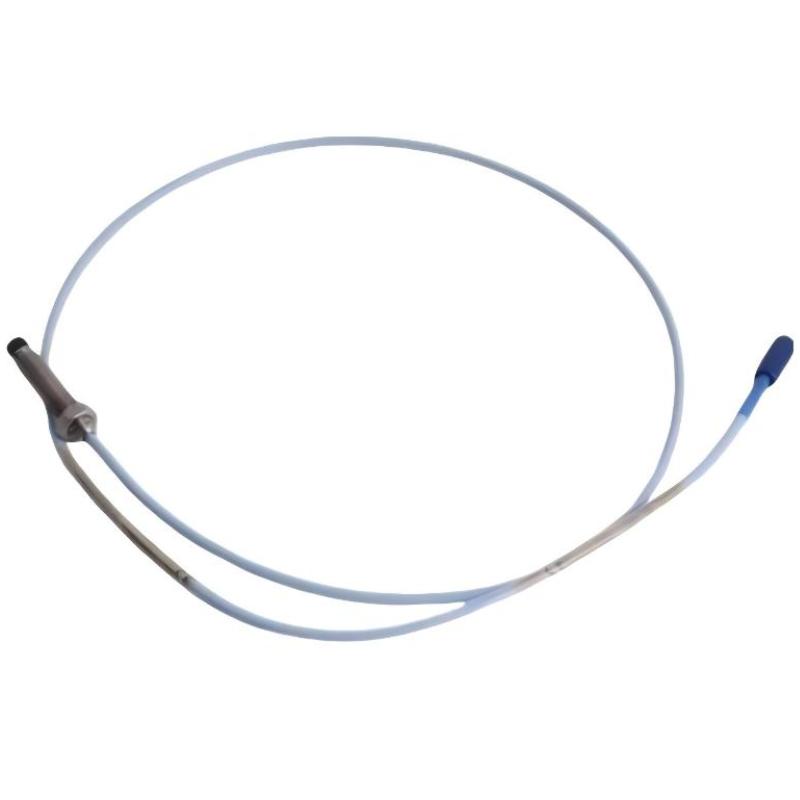

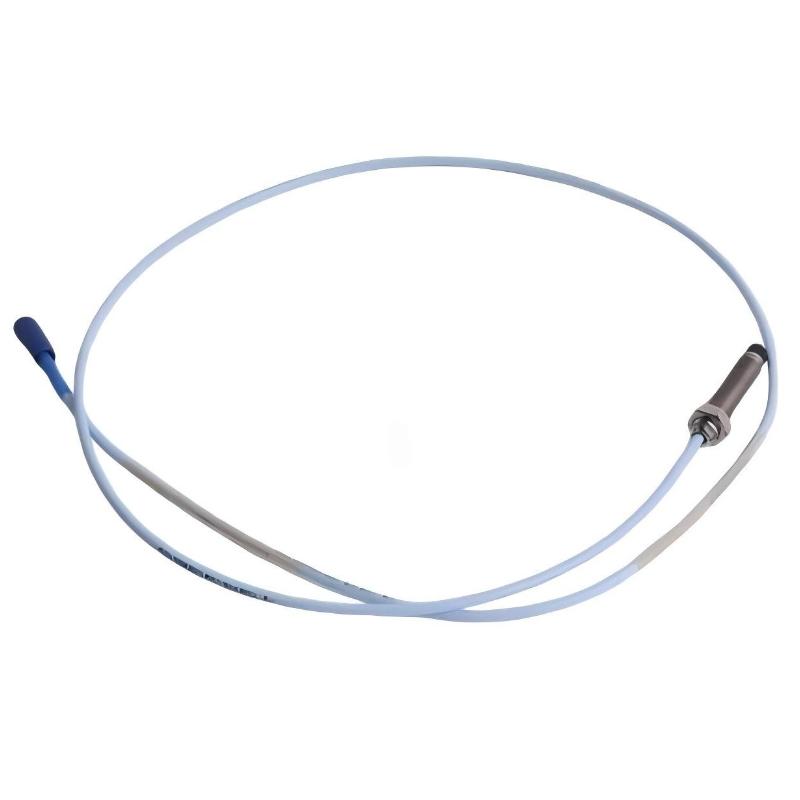

Bently Nevada 330101-00-30-15-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-30-15-02-00 3300 XL 8 mm Proximity Probe
0.0
Points
Brand:Bently Nevada PLC Item No.:330101-00-30-15-02-00 Product Origin:USA Product Dimensions:Total Length: 1.5 meters Product Weight:0.485 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330101-00-30-15-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for critical rotating machinery monitoring. It forms part of the 3300 XL transducer system, providing reliable measurement of shaft vibration and position without physical contact. Engineered for industrial durability and accuracy, it is widely used in power generation, oil & gas, and heavy process industries where continuous machinery protection is essential.
Technical Specifications
Category
Specification
Product Series
Bently Nevada 3300 XL
Model
330101-00-30-15-02-00
Sensor Type
8 mm Proximity Probe
Measurement Principle
Eddy current (non-contact displacement)
Measured Parameter
Shaft vibration, position, eccentricity
System Type
3-component system (probe + cable + proximitor)
Probe Tip Diameter
8 mm
Total Cable Length
1.5 m
Linear Range
~2 mm (typical 3300 XL system)
Output Signal
DC voltage proportional to gap distance
Operating Temperature
approx. -40 °C to +150 °C (system dependent)
Target Material
Conductive metals (e.g., steel shafts)
Minimum Shaft Diameter
≥ 50 mm (typical application guideline)
Cable Type
Triaxial coaxial cable
Connector Type
ClickLoc miniature coaxial connector
Weight
0.485 kg
Recommended Related Models
Model
Product Name
330101-00-15-20-02-00
Bently Nevada 3300 XL 8 mm Proximity Probe (1.5 m variant)
330101-00-20-05-02-00
Bently Nevada 3300 XL 8 mm Proximity Probe (2.0 m variant)
330180-91-00
Bently Nevada 3300 XL Proximitor Sensor
330130-080-00-00
Bently Nevada 3300 XL Vibration Monitoring System Component
Popular Related Models
Model
Product Name
330106-05-30-10-02-00
Bently Nevada Reverse Mount Proximity Probe
330104-00-08-05-01-CN
Bently Nevada 3300 XL 8 mm Proximity Probe
3500/42M
Bently Nevada Vibration Monitor Module
3300 XL NSv Series
Bently Nevada Narrow Side View Probe System
Applications
• Turbomachinery shaft vibration monitoring
Used for non-contact measurement of shaft vibration, position, and eccentricity in turbines, compressors, pumps, and generators.
• Fluid-film bearing condition monitoring
Applied in rotating machinery where precise shaft displacement tracking is required for stability and protection systems.
• Power generation equipment protection systems
Widely used in steam, gas, and hydro turbine monitoring for real-time mechanical condition assessment.
• Oil & gas rotating machinery diagnostics
Installed on compressors and pumps operating under continuous load and harsh industrial environments.
• Industrial predictive maintenance systems
Supports early detection of imbalance, misalignment, and bearing wear through continuous displacement measurement.
• Keyphasor and speed reference systems
Used for phase reference and rotational speed feedback in machinery monitoring architectures.
Key Advantages
• High-precision eddy current measurement
Provides accurate non-contact displacement and vibration measurement of conductive shaft surfaces.
• Proven 3300 XL industrial reliability
Designed for long-term stability in mission-critical machinery monitoring applications.
• Excellent temperature stability
Maintains consistent performance across wide industrial operating temperature ranges.
• API 670 compliant system compatibility
Commonly integrated into standardized machinery protection and monitoring systems.
• Rugged probe construction
Built for harsh industrial environments with resistance to vibration, oil, and contamination.
• Interchangeable system architecture
Compatible within the 3300 XL probe, extension cable, and Proximitor sensor system.
Technical FAQs
1. What does this probe measure?
It measures shaft vibration, position, and gap displacement in rotating machinery.
2. What system does it belong to?
It is part of the Bently Nevada 3300 XL 8 mm proximity transducer system.
3. What is the measurement principle?
It uses eddy current non-contact displacement sensing technology.
4. What is the total cable length?
This configuration supports a total length of 1.5 meters for probe cable assembly.
5. What is the typical application environment?
Turbines, compressors, pumps, and other high-speed rotating equipment.
6. Can it measure static position?
Yes, it measures both static position and dynamic vibration.
7. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade operating conditions.
8. Does it require physical contact?
No, it is a non-contact measurement sensor.
9. What is the system composition?
Probe + extension cable + Proximitor sensor.
10. Is it used in protection systems?
Yes, it is widely used in machinery protection and monitoring systems.
