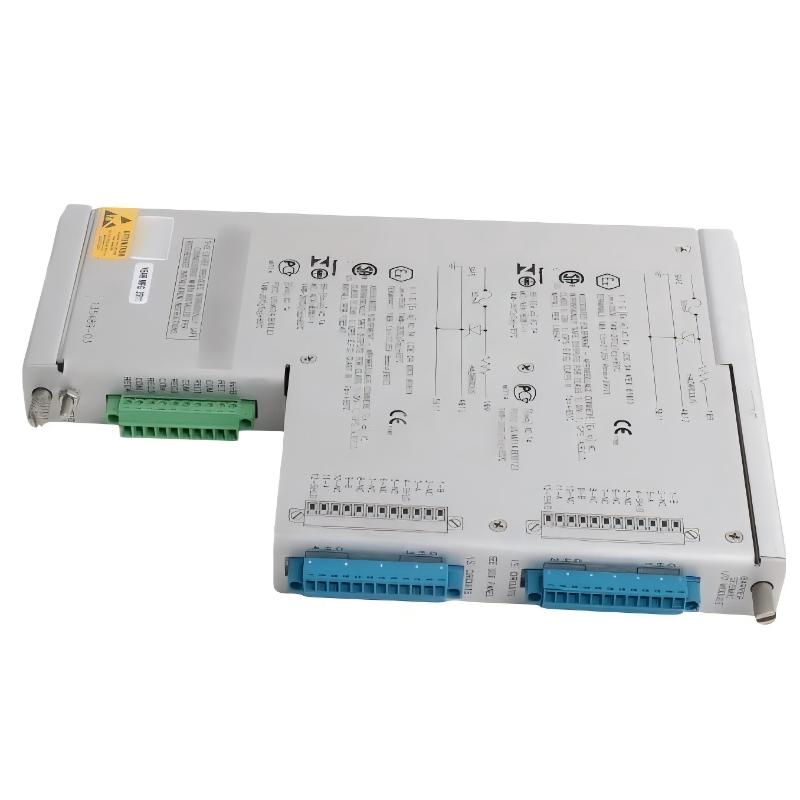

Bently Nevada 3500/25-01-03-00 135473-01 Enhanced Bond Phase Module
Bently Nevada 3500/25-01-03-00 135473-01 Enhanced Bond Phase Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/25-01-03-00 Product Origin:USA Product Dimensions:241.3 x 24.4 x 103.1 mm Product Weight:0.46 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/25-01-03-00 135473-01 Enhanced Bond Phase Module is a high-performance monitoring module designed for accurate rotational phase reference measurement in critical machinery applications. As part of the Bently Nevada 3500 monitoring platform, it provides precise timing and phase signals required for vibration analysis, balancing, and advanced machinery diagnostics. Built for industrial reliability and continuous operation, this module is widely used in turbine, compressor, and generator monitoring systems across power generation and process industries.
Technical Specifications
Category
Specification
Product Series
Bently Nevada 3500 Series
Model
3500/25-01-03-00 135473-01
Device Type
Enhanced Bond Phase Module
Primary Function
Rotational phase reference monitoring
System Compatibility
Bently Nevada 3500 Monitoring System
Installation Type
Rack-mounted
Monitoring Capability
Phase and rotational reference acquisition
Application
Turbomachinery monitoring and diagnostics
Operating Environment
Industrial machinery protection systems
Construction
Industrial electronic module
Supported Equipment
Turbines, compressors, generators, pumps
Dimensions
241.3 × 24.4 × 103.1 mm
Weight
0.46 kg
Recommended Related Models
Model
Product Name
3500/22M-01-01-01
Bently Nevada Transient Data Interface Module
3500/42M
Bently Nevada Proximitor Seismic Monitor
3500/20 135031-01
Bently Nevada Rack Interface I/O Module
3500/15
Bently Nevada Power Supply Module
Popular Related Models
Model
Product Name
3500/40M
Bently Nevada Proximitor Monitor
330180-91-00
Bently Nevada 3300 XL Proximitor Sensor
330104-00-05-50-02-05
Bently Nevada 3300 XL 8 mm Proximity Probe
330101-00-39-10-02-05
Bently Nevada 3300 XL 8 mm Proximity Probe
Applications
• Rotating machinery phase reference monitoring
Provides accurate phase reference signals for turbines, compressors, generators, and other high-speed rotating equipment.
• Turbine protection systems
Used in steam and gas turbine monitoring applications to support vibration analysis and shaft rotational tracking.
• Machinery synchronization systems
Enables precise phase measurement for balancing, diagnostics, and machinery performance evaluation.
• Industrial vibration analysis platforms
Works with condition monitoring systems to improve machinery fault detection and operational diagnostics.
• Oil & gas rotating equipment monitoring
Applied in compressor and pump protection systems for reliable rotational phase reference acquisition.
• Predictive maintenance programs
Supports advanced diagnostics by providing accurate rotational timing information for machinery analysis.
Key Advantages
• Accurate phase signal acquisition
Provides stable and precise phase reference data for rotating machinery monitoring systems.
• Enhanced monitoring performance
Improves vibration analysis and machinery diagnostics accuracy in critical industrial applications.
• Seamless 3500 system compatibility
Fully integrates with Bently Nevada 3500 machinery protection and monitoring platforms.
• Reliable industrial-grade construction
Designed for continuous operation in harsh industrial environments.
• High-speed response capability
Supports accurate rotational tracking for high-speed turbomachinery applications.
• Simplified installation and maintenance
Rack-mounted modular design allows efficient integration and servicing.
Technical FAQs
1. What is the primary function of the 3500/25-01-03-00 module?
It provides phase reference signals for rotating machinery monitoring and diagnostics.
2. What systems commonly use this module?
It is used within Bently Nevada 3500 machinery protection and monitoring systems.
3. What machinery applications typically require this module?
Turbines, compressors, pumps, motors, and generators.
4. What is the purpose of phase reference monitoring?
It supports vibration analysis, rotational speed tracking, and machinery diagnostics.
5. Is the module suitable for continuous industrial operation?
Yes, it is designed for continuous 24/7 industrial use.
6. Can it support predictive maintenance applications?
Yes, it provides critical timing information for advanced machinery diagnostics.
7. Is it compatible with other 3500 series modules?
Yes, it integrates seamlessly with compatible Bently Nevada 3500 modules.
8. Does it support high-speed rotating equipment?
Yes, it is suitable for high-speed turbomachinery monitoring applications.
9. Is it designed for harsh industrial environments?
Yes, it is engineered for demanding industrial operating conditions.
10. Which industries commonly use this module?
Power generation, oil & gas, petrochemical, and heavy industrial manufacturing industries.
