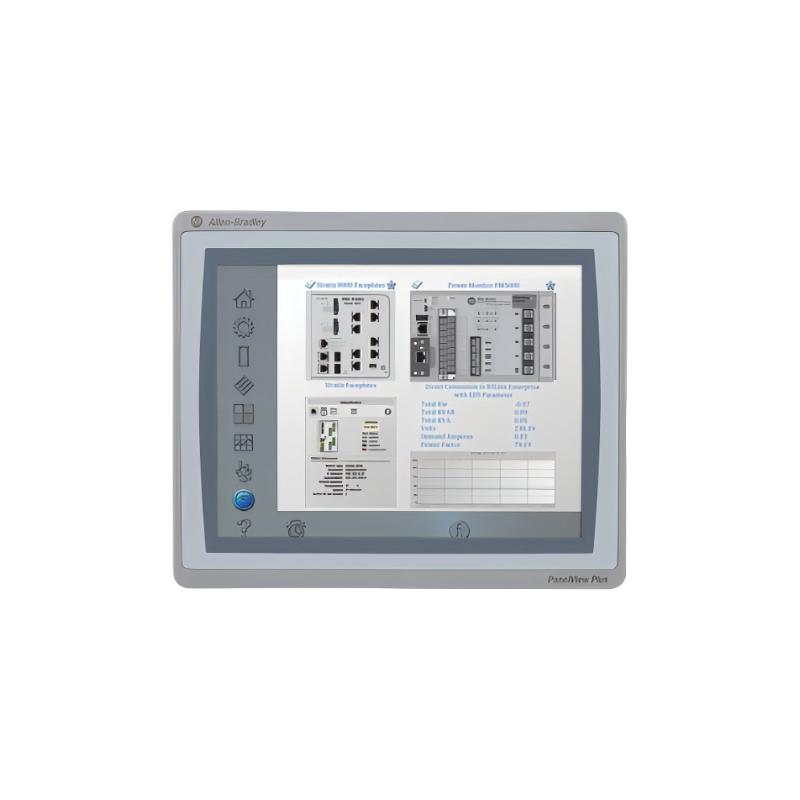

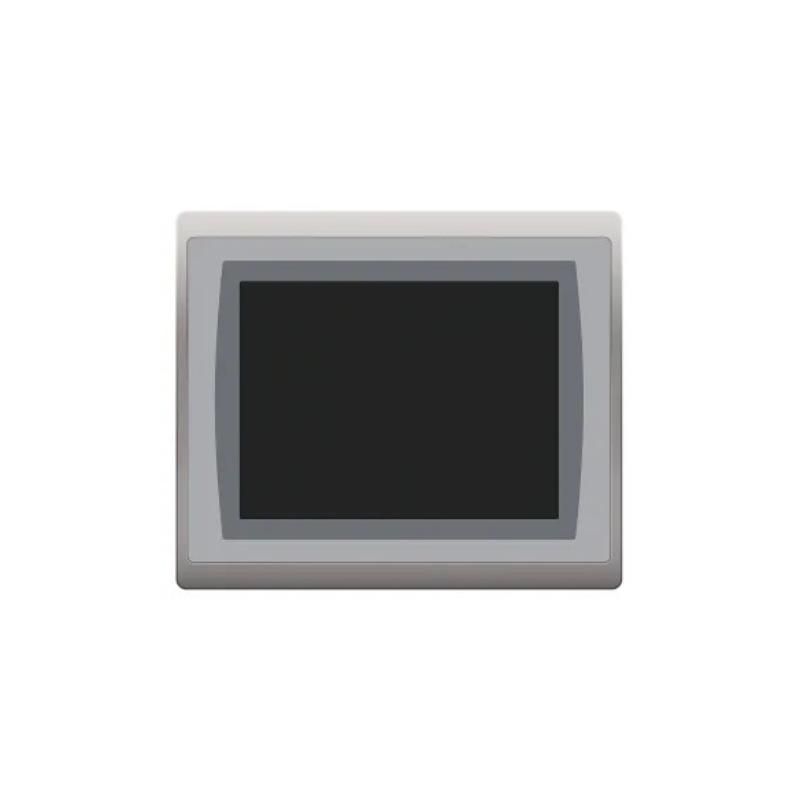

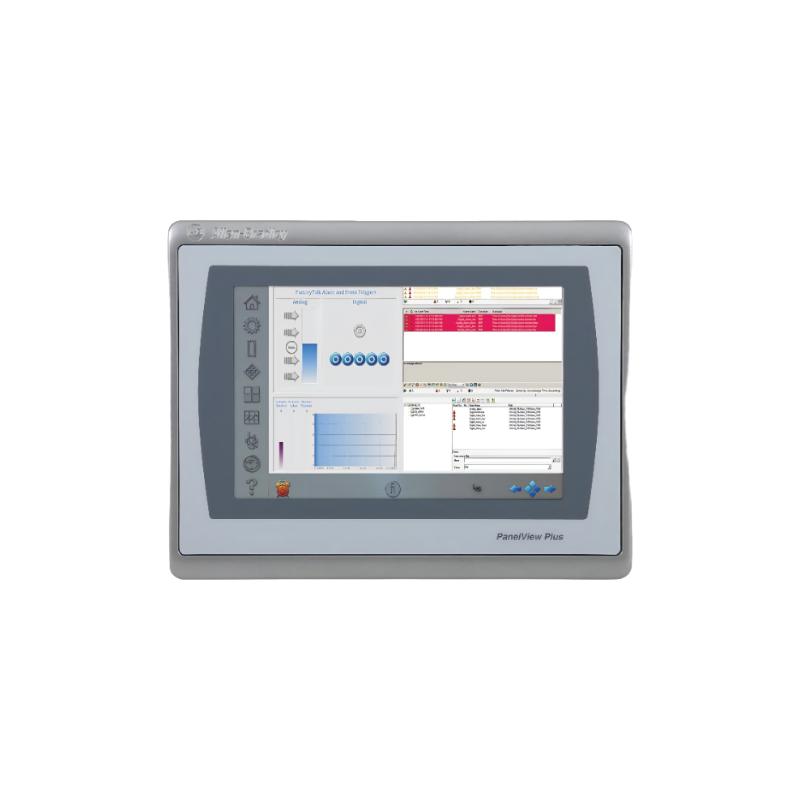

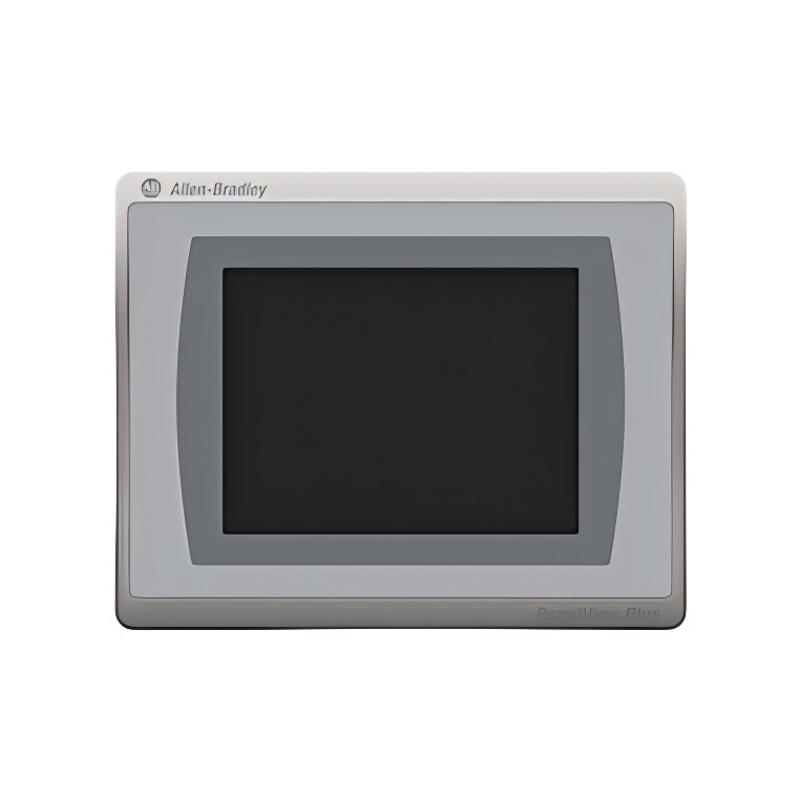

The Allen Bradley 2711P-T7C4A8 PanelView Plus 7 Standard Terminal is a compact industrial Human-Machine Interface (HMI) designed for reliable operator control, machine visualization, and real-time process monitoring. As part of Rockwell Automation’s PanelView Plus 7 family, it provides seamless integration with CompactLogix and ControlLogix PLC systems, making it a widely adopted solution in modern automation architectures.
This model is particularly valued in production environments where stable communication, intuitive operation, and long-term system durability are essential for continuous manufacturing performance.
Technical Specifications
| Category | Specification |
|---|---|
| Product Family | PanelView Plus 7 Standard |
| Model Number | 2711P-T7C4A8 |
| Display Type | TFT active-matrix color LCD |
| Screen Size | 6.5 inches |
| Resolution | 640 × 480 (VGA) |
| Aspect Ratio | 4:3 |
| Touch Type | Analog resistive touchscreen |
| Operating System | Windows CE 6.0 |
| Communication | Ethernet (EtherNet/IP), USB, RS-232 |
| Input Voltage | 100–240V AC |
| Memory | 512 MB RAM / 512 MB storage |
| User Memory | ~79 MB application runtime space |
| Backlight Life | ~50,000 hours (CCFL) |
| Programming Software | FactoryTalk View Machine Edition |
| Operating Temperature | 0°C to 55°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 179 mm × 246 mm × 55 mm |
| Weight | Approx. 1.7 kg |
Recommended Related Models
To support system integration, expansion, or migration within Rockwell automation platforms, the following models are commonly paired with the 2711P-T7C4A8:
- Allen Bradley 2711P-T7C21D8S PanelView Plus 7 Standard
- Allen Bradley 2711P-T10C4D8 PanelView Plus 7 Performance
- Allen Bradley 1769-L33ER CompactLogix Controller
- Allen Bradley 1756-L85E ControlLogix CPU Module
- Allen Bradley 1784-SD1 Industrial SD Memory Card
These devices ensure stable HMI-to-PLC communication and scalable automation system design.
