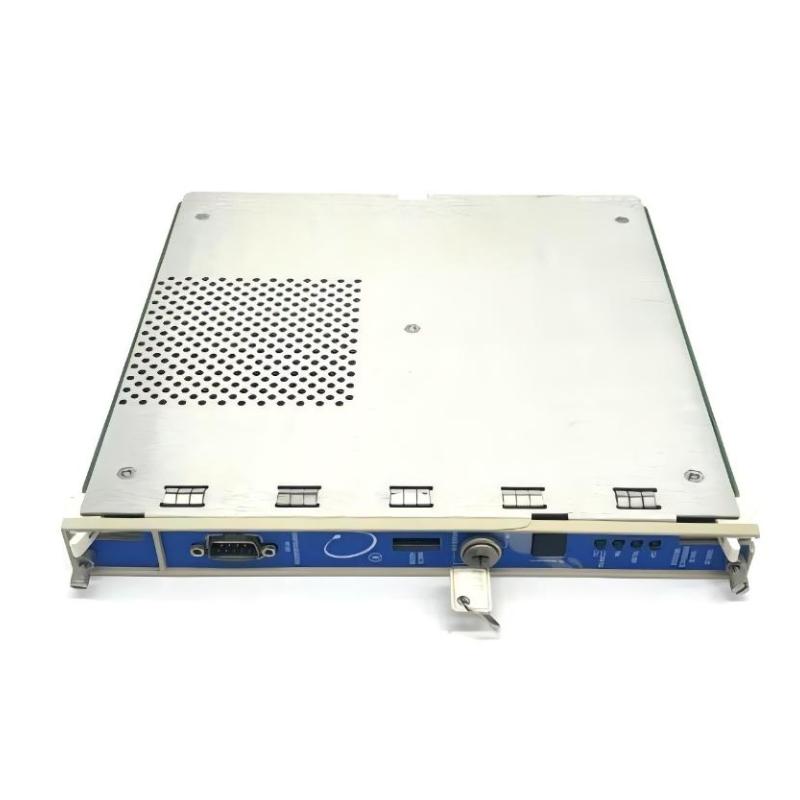

Bently Nevada 3500/25-01-03-01 Enhanced Keyphasor Module

Where It Excels in Industrial Use

• Precision Rotational Reference Monitoring:
The Bently Nevada 3500/25-01-03-01 Enhanced Keyphasor Module provides accurate shaft timing reference signals for the 3500 Machinery Protection System, allowing monitor modules and diagnostic systems to calculate rotational speed, phase, and vibration vector parameters.

• Turbomachinery Condition Monitoring:
Designed for steam turbines, gas turbines, compressors, generators, and other critical rotating machinery, the module delivers reliable Keyphasor pulse processing required for advanced vibration analysis and machine diagnostics.

• Hazardous Area Machinery Protection Applications:
With an internal barrier I/O configuration and cNRTLus Class 1 Division 2 approval, this model is suitable for industrial installations requiring additional signal isolation and certified operation in regulated environments.

• High-Reliability Asset Protection Systems:
The module supports continuous operation in power generation, oil & gas, petrochemical, and heavy industrial facilities where accurate rotational reference data is essential for predictive maintenance programs.

Key Strengths at a Glance

• Two-Channel Enhanced Keyphasor Processing:
Provides two Keyphasor input channels and converts signals from compatible proximity probes or magnetic pickups into digital timing signals for 3500 monitor modules.

• Internal Barrier I/O Design:
The -03 I/O configuration provides internal barrier termination, helping isolate Keyphasor signals and improving application flexibility in industrial environments.

• Accurate Speed and Phase Reference:
Generates reliable once-per-turn or multiple-event-per-turn timing signals used for shaft speed measurement, phase analysis, and vibration vector calculations.

• Enhanced Signal Processing Capability:
Compared with earlier Keyphasor designs, the Enhanced Keyphasor Module provides expanded processing features while maintaining compatibility with existing 3500 system installations.

• Certified Industrial Integration:
The final -01 option provides cNRTLus (Class 1, Division 2) agency approval for installations requiring certified equipment configurations.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/25-01-03-01 Enhanced Keyphasor Module?
It processes Keyphasor input signals and provides digital rotational reference signals for 3500 monitoring modules and diagnostic equipment.

2. How many Keyphasor channels does this module provide?
The module provides two Keyphasor channels within a half-height module design.

3. What type of sensors can be connected to this module?
It supports compatible proximity probes and magnetic pickup signal sources used for rotational reference measurement.

4. Does this module directly measure vibration levels?
No. It provides timing reference signals that allow vibration monitoring modules to perform accurate phase and vector calculations.

5. What does the "-03" option indicate in the model number?
The -03 option identifies the Internal Barrier I/O module with internal terminations.

6. What does the final "-01" suffix represent?
The final -01 suffix indicates the cNRTLus (Class 1, Division 2) agency approval configuration.

7. Can this module be used for shaft speed measurement?
Yes. It provides Keyphasor timing signals used by compatible systems to calculate shaft rotational speed.

8. Can the module support multiple Keyphasor inputs in one 3500 rack?
Yes. The 3500 system can support multiple Keyphasor signals through normal or paired configurations depending on system requirements.

9. Is this module required for every 3500 rack installation?
No. It is required only when rotational reference signals are needed for monitoring functions such as phase analysis and tracking measurements.

10. What should be checked before replacing this module?
Engineers should verify sensor type, I/O termination configuration, rack compatibility, firmware requirements, and required approval ratings.
