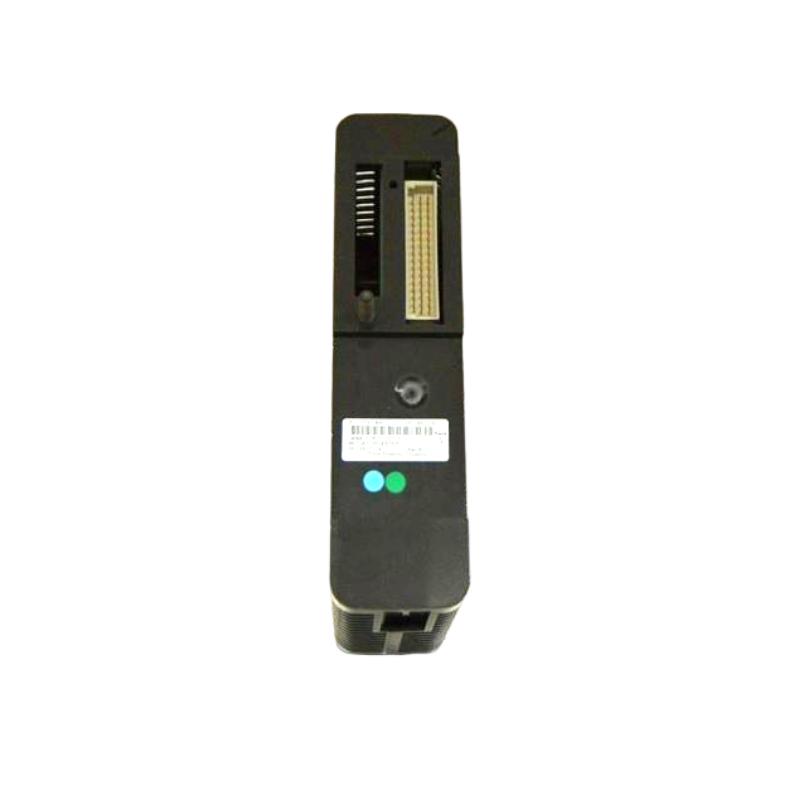

The Emerson VE6014P2 is a DeltaV system industrial Ethernet switch module designed to provide reliable, high-speed communication within distributed control system (DCS) networks. It is part of the DeltaV M-series communication infrastructure and is commonly used in fiber-based Fast Ethernet architectures where stable data transmission and deterministic network performance are essential.
The “P2” designation typically indicates a regional power cord configuration variant, while the core hardware remains aligned with the VE6014P1 fiber Ethernet switch platform. This module is engineered to support industrial-grade network segmentation, ensuring robust communication between controllers, workstations, and I/O subsystems in large-scale automation environments.
It is widely deployed in process industries where network reliability, EMI resistance, and long-distance fiber communication are critical to maintaining continuous plant operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE6014P2 |
| Product Type | Industrial Ethernet Switch Module |
| System Platform | DeltaV Distributed Control System |
| Network Type | 100BASE-FX Fiber Optic Ethernet |
| Data Rate | 100 Mbps Fast Ethernet |
| Port Configuration | 24-port fiber switch architecture (platform-dependent) |
| Media Type | Multimode fiber (industrial FX standard) |
| Communication Role | Layer 2 network switching for DeltaV systems |
| Power Supply | 24 VDC system power |
| Power Consumption | ~8–15 W typical (industrial low-power design) |
| Redundancy Support | System-level redundancy via DeltaV architecture |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5%–95% non-condensing |
| EMC Immunity | Industrial-grade noise resistance design |
| Mounting Type | Rack / control cabinet integration |
| Indicator System | Per-port Link/Activity LEDs |
| Fiber Connector Type | SC / ST (system configuration dependent) |
| Dimensions (H × W × D) | ~130 mm × 440 mm × 250 mm |
| Weight | ~3.5–5.0 kg |
Recommended System Integration Modules
For a stable DeltaV network architecture, VE6014P2 is commonly integrated with:
| Module | Function |
|---|---|
| VE6014P1 | Base fiber Ethernet switch platform variant |
| VE6015 Series | Copper Fast Ethernet switch modules |
| VE6017 Series | Advanced industrial Ethernet switches |
| VE6018 Series | High-density fiber switching platforms |

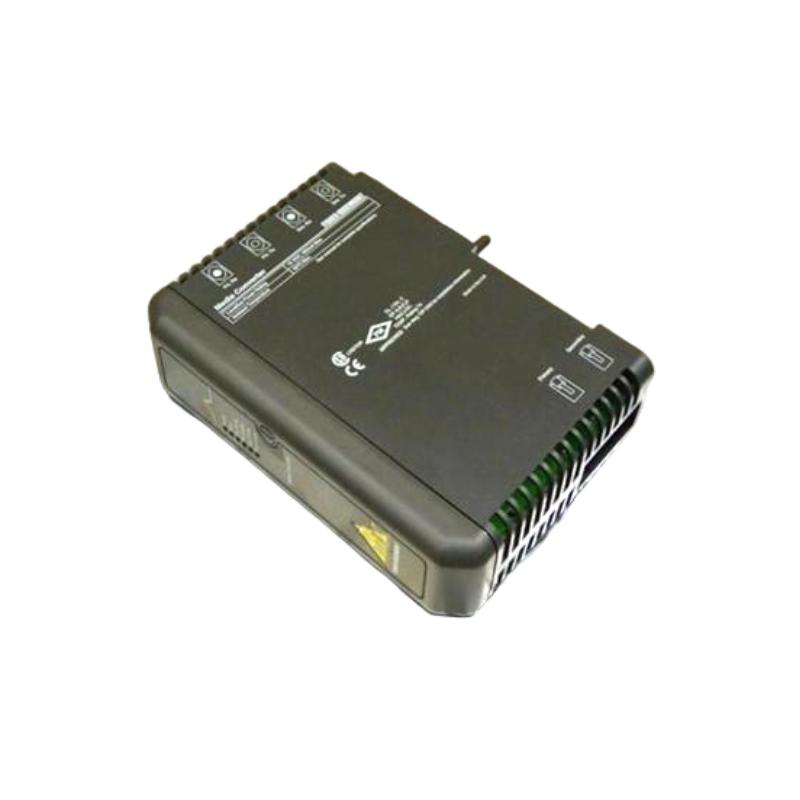

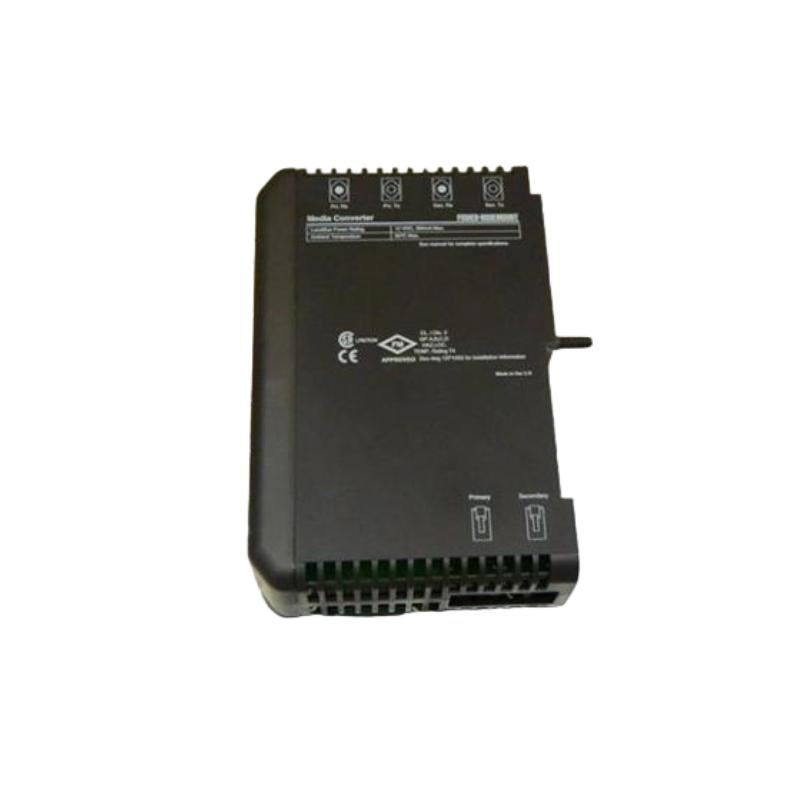

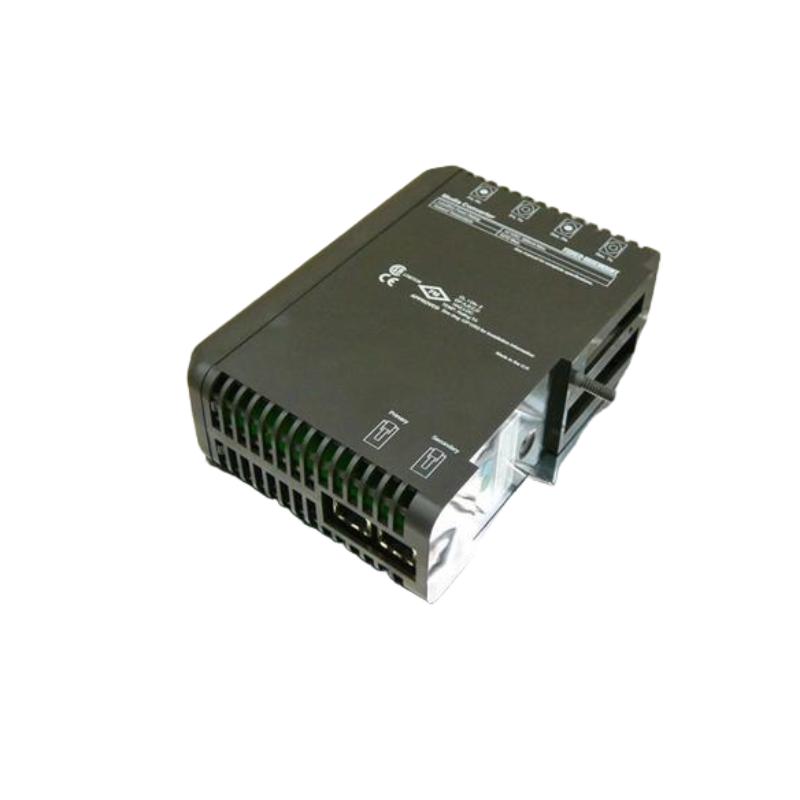

| VE6006 | Media converter module for copper/fiber bridging |
| VE6001P1 | Legacy Ethernet hub module |
| VE4070 | System interface and carrier adapter |
These modules collectively form a scalable, redundant, and high-availability DeltaV communication backbone.
Popular Emerson DeltaV Communication Modules
Within Emerson’s DeltaV ecosystem, VE6014P2 belongs to the fiber-optic switching and communication family:
- VE6014P1 / P2 / P3 / P4 Fiber Switch Variants
- VE6015 Series Fast Ethernet Switch Modules
- VE6017 Series Industrial Network Switches
- VE6018 High-Density Fiber Switch Systems
- VE6001P1 Ethernet Hub Module
- VE6006 Media Converter Module
- VE4070 System Interface Module
- VE6020 Advanced Network Switching Platforms
These modules are designed to ensure reliable plant-wide communication in complex distributed control environments.
