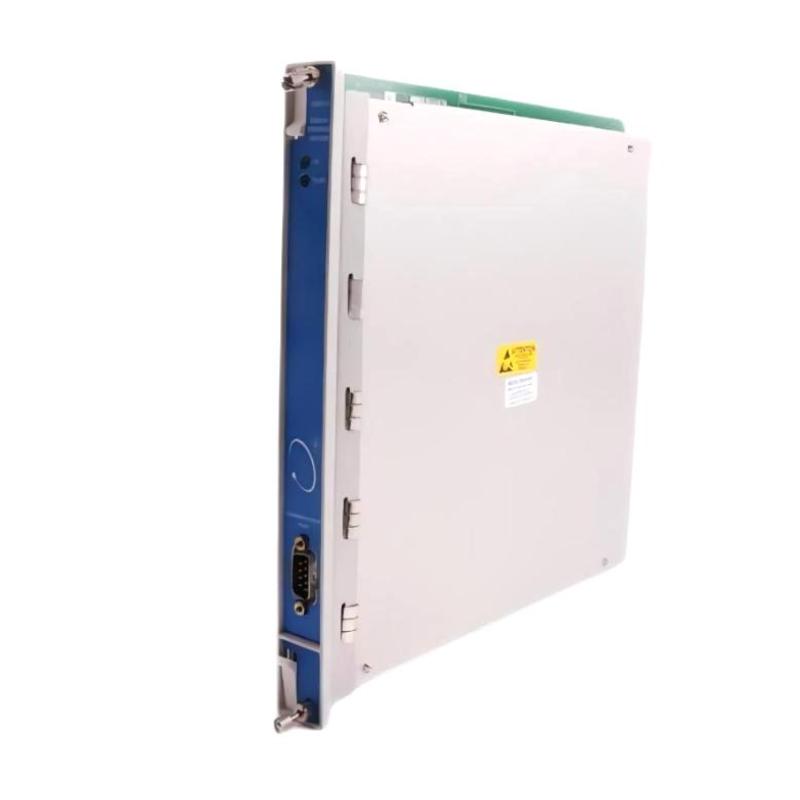

Bently Nevada 3500/22-01-01-00 Transient Data Interface Module

Where It Excels in Industrial Use

• 3500 Machinery Protection System Data Communication:
The Bently Nevada 3500/22-01-01-00 Transient Data Interface Module (TDI) provides a communication link between the 3500 monitoring system and compatible software platforms, enabling efficient collection, transmission, and analysis of machinery condition data.

• Advanced Condition Monitoring Applications:
Designed for rotating equipment such as turbines, compressors, generators, and large pumps, the module supports access to steady-state and transient operating data for predictive maintenance strategies.

• Plant-Wide Asset Management Integration:
The module connects 3500 rack information with host monitoring systems through Ethernet communication, helping engineers improve diagnostics, machine health assessment, and operational decision-making.

• Critical Industrial Protection Systems:
Suitable for power generation, oil & gas, petrochemical, and manufacturing facilities requiring continuous monitoring data availability without affecting the primary machinery protection path.

Key Strengths at a Glance

• Integrated Rack Interface Capability:
Combines rack communication functions with data collection capabilities, reducing the need for additional external communication processors in many system architectures.

• Ethernet Communication Interface:
The -01 I/O option provides a 10Base-T/100Base-TX Ethernet I/O module, allowing high-speed communication between the 3500 rack and external monitoring software.

• Standard Transient Data Interface Configuration:
The -01 TDI configuration is designed for standard monitoring applications, providing reliable access to rack data, configuration information, and diagnostic information.

• Continuous Data Collection Capability:
Interfaces with compatible 3500 M-Series monitor modules to collect steady-state and transient dynamic information for detailed machinery analysis.

• Reliable Modular Architecture:
Designed for installation in the dedicated rack interface position, the module maintains the flexible and service-friendly design of the Bently Nevada 3500 platform.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/22-01-01-00 Transient Data Interface Module?
It provides communication between the 3500 monitoring system and compatible software for configuration, monitoring data access, and condition analysis.

2. Is the 3500/22-01-01-00 part of the machinery shutdown protection path?
No. The module provides communication and data collection functions and does not directly control the primary protection logic of monitor modules.

3. What type of communication interface does this model use?
This configuration uses a 10Base-T/100Base-TX Ethernet I/O module for network communication.

4. Where is this module installed in the 3500 rack?
It is installed in the rack interface slot immediately adjacent to the power supply modules.

5. What type of data can the module collect?
It can collect rack status information, steady-state monitoring data, and transient dynamic data when supported by the installed system configuration.

6. Does this module replace vibration monitoring modules?
No. Dedicated monitor modules such as proximity, seismic, and process monitor modules continue to perform signal measurement functions.

7. Which software systems can communicate with this module?
It is designed for integration with compatible Bently Nevada configuration and condition monitoring software platforms, including System 1 and 3500 configuration software.

8. What does the first "01" represent in the model number?
It identifies the Standard Transient Data Interface configuration intended for standard monitoring applications.

9. What does the second "01" represent in the model number?
It identifies the Ethernet I/O module configuration using 10Base-T/100Base-TX communication.

10. What should be confirmed before replacing this module?
Engineers should verify rack compatibility, communication settings, firmware requirements, network configuration, and existing monitoring architecture.
