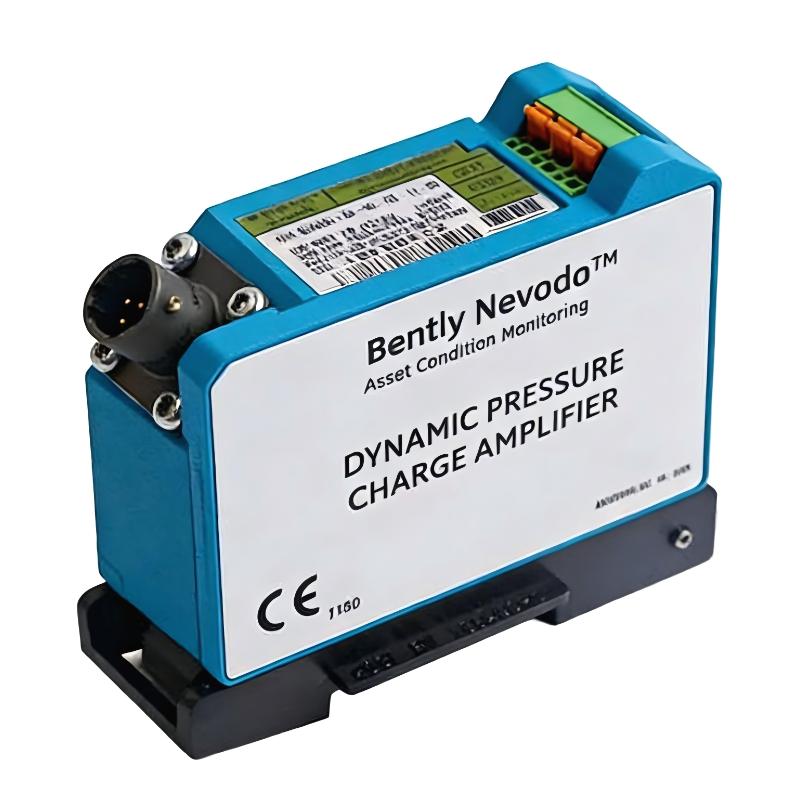

Bently Nevada 350500-00-00-00-01-01 Dynamic Pressure Charge Amplifier

Applications

• Dynamic pressure monitoring in turbines, compressors, and combustion systems.

• Combustion chamber pressure analysis in gas turbine engines.

• Industrial vibration and pressure correlation studies in rotating machinery.

• Condition monitoring in power generation and energy production facilities.

• High-frequency pressure signal acquisition for diagnostic systems.

• Research and development testing of engines and rotating equipment.

• Oil and gas process equipment monitoring under dynamic load conditions.

• Advanced machinery protection systems requiring pressure-based diagnostics.

Key Advantages

• Converts high-impedance charge signals into stable voltage output for analysis.

• Designed for high-frequency dynamic pressure measurement applications.

• Excellent signal fidelity for accurate combustion and vibration correlation.

• Rugged industrial design suitable for harsh operating environments.

• Stable performance under temperature and vibration fluctuations.

• Supports advanced diagnostic and experimental testing systems.

• Compact form factor allows easy installation in control cabinets.

• Enhances machinery insight through high-resolution pressure data acquisition.

Technical FAQs

Q1: What is the main function of the 350500-00-00-00-01-01 amplifier?
A: It converts charge signals from dynamic pressure sensors into usable voltage signals for analysis and monitoring systems.

Q2: What type of measurement does it support?
A: It supports dynamic pressure measurement, especially high-frequency pressure fluctuations.

Q3: Where is it commonly used?
A: Gas turbines, combustion chambers, compressors, and experimental test rigs.

Q4: Does it measure pressure directly?
A: No, it amplifies and conditions signals from piezoelectric dynamic pressure sensors.

Q5: Is it suitable for continuous monitoring?
A: Yes, it is designed for continuous industrial and research applications.

Q6: What type of sensors does it work with?
A: Piezoelectric charge-output dynamic pressure sensors.

Q7: Why is charge amplification necessary?
A: Because raw charge signals are very high impedance and require conditioning for accurate measurement.

Q8: Can it be used in turbine combustion analysis?
A: Yes, it is commonly used for combustion dynamics and instability monitoring.

Q9: Is it resistant to industrial environments?
A: Yes, it is designed for harsh temperature and vibration conditions.

Q10: What is the main benefit of this amplifier?
A: It enables accurate acquisition of high-frequency dynamic pressure signals for advanced diagnostics.
