Introduction

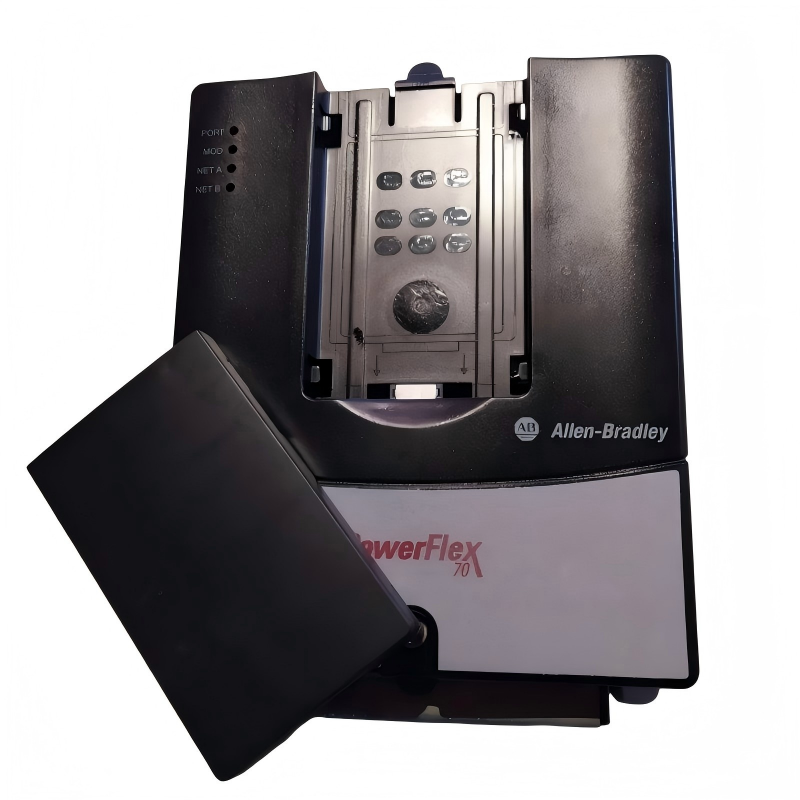

The Allen Bradley 20AC3P5A0AYNANC0 PowerFlex 70 AC Frequency Inverter is a proven industrial drive solution designed for dependable motor control and process stability. It combines robust hardware design with flexible control capabilities, making it suitable for a wide range of industrial automation applications.

This drive is widely used in systems where consistent performance, energy efficiency, and reliable operation are critical to production uptime.

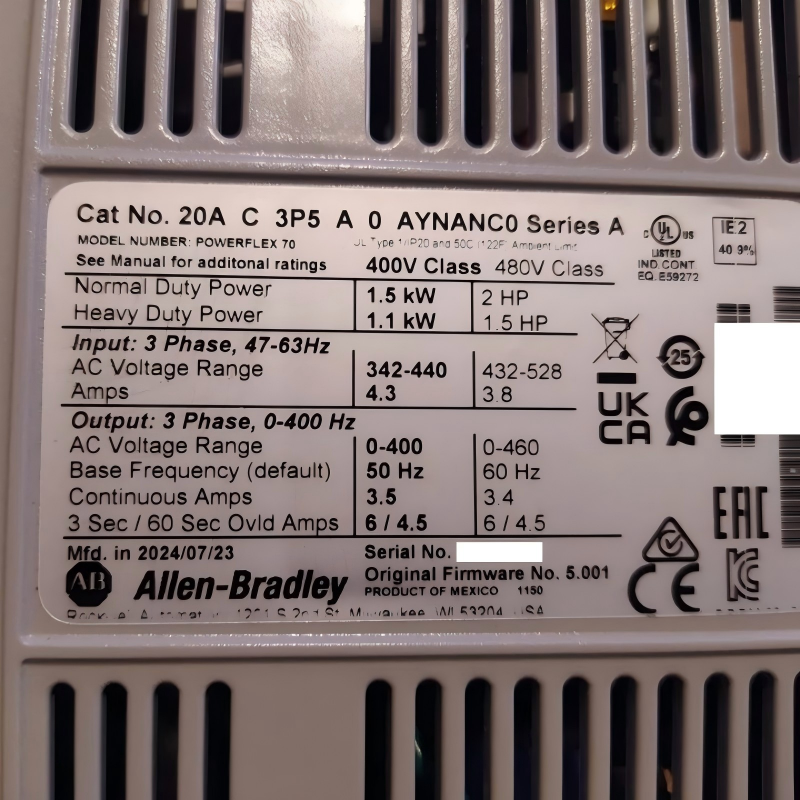

Technical Specifications

Feature	Specification
Model	20AC3P5A0AYNANC0
Drive Series	PowerFlex 70 AC Drive
Input Voltage	380–480V AC, 3-phase
Output Voltage	0–480V AC, 3-phase
Output Current	3.5 A
Power Rating	1.5 kW (Normal Duty)
Control Method	V/Hz, Sensorless Vector Control
Dimensions (L × W × H)	171.7 × 234.6 × 179.8 mm
Weight	3.6 kg (7.94 lb)
Enclosure Rating	IP20
Communication	Optional industrial network modules

Applications

The 20AC3P5A0AYNANC0 PowerFlex 70 AC Frequency Inverter is designed for precise motor speed control in industrial automation environments where reliability and stable torque performance are essential. It is commonly used in:

Industrial conveyor systems and production lines
Pumps and centrifugal systems in water treatment plants
HVAC fan control in commercial and industrial buildings
General-purpose machinery requiring variable speed control
Retrofit upgrades for legacy fixed-speed motor systems

Its robust control architecture makes it suitable for applications that require consistent performance under varying load conditions.

Advantages

Stable Motor Control: Maintains smooth torque and speed regulation across a wide operating range
Industrial Reliability: Designed for continuous duty operation in demanding environments
Flexible Integration: Supports Ethernet/IP and other industrial communication options depending on configuration
Compact Industrial Design: Optimized footprint for standard control cabinet installation
Advanced Control Modes: Supports V/Hz and vector control strategies for improved motor response
Built-in Protection: Includes overload, overcurrent, and voltage protection functions for system safety

Technical FAQs

What type of motor is compatible with this drive?
Three-phase AC induction motors within the rated power range.
What is the input voltage requirement?
380–480V AC three-phase input supply.
Does it support vector control?
Yes, it supports enhanced control modes including sensorless vector operation.
Can it be used in HVAC systems?
Yes, it is widely used in fan and pump applications.
Is communication supported?
Yes, depending on configuration, it supports industrial network communication modules.
Does it include braking capability?
It includes a built-in brake IGBT for external braking resistor connection.
What protection features are included?
Overcurrent, overload, thermal, and undervoltage protection are included.
Is it suitable for continuous operation?
Yes, it is designed for continuous industrial duty cycles.
Can it be integrated into PLC systems?
Yes, it supports integration through industrial communication networks.
Does it require regular maintenance?
No routine maintenance is required under normal operating conditions.
