Introduction

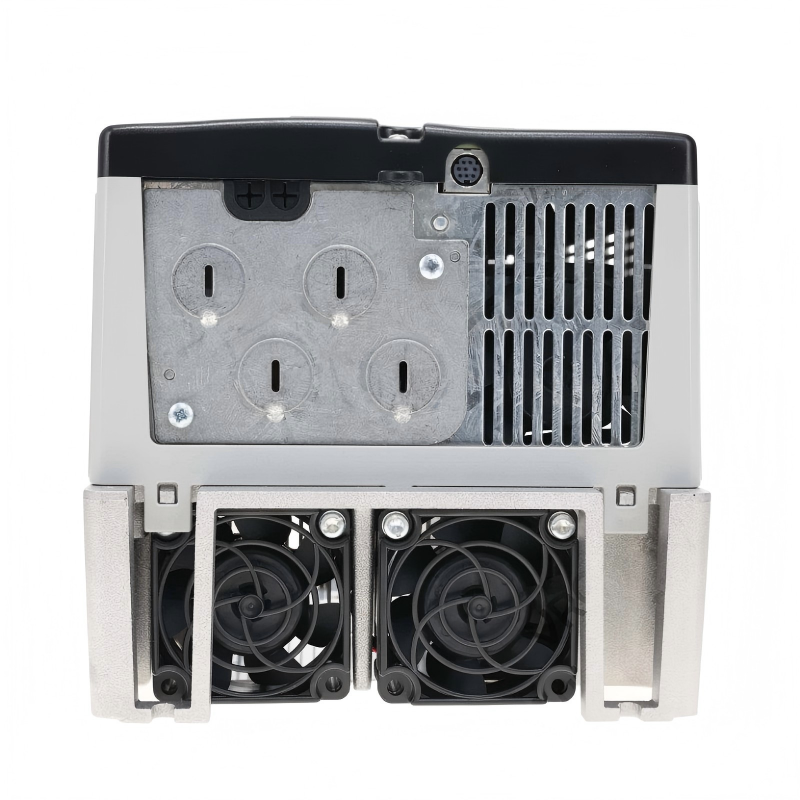

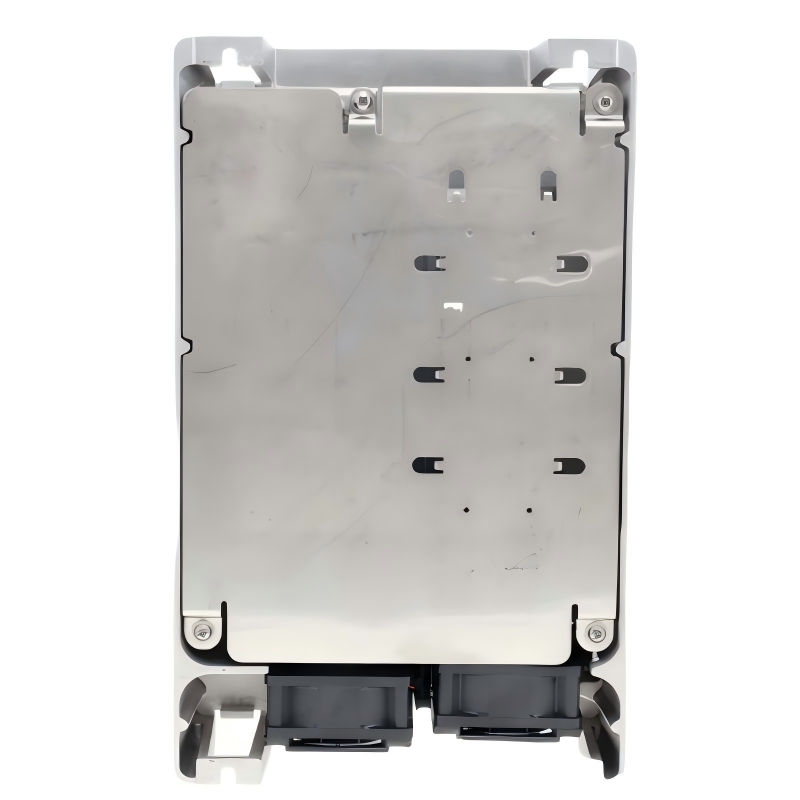

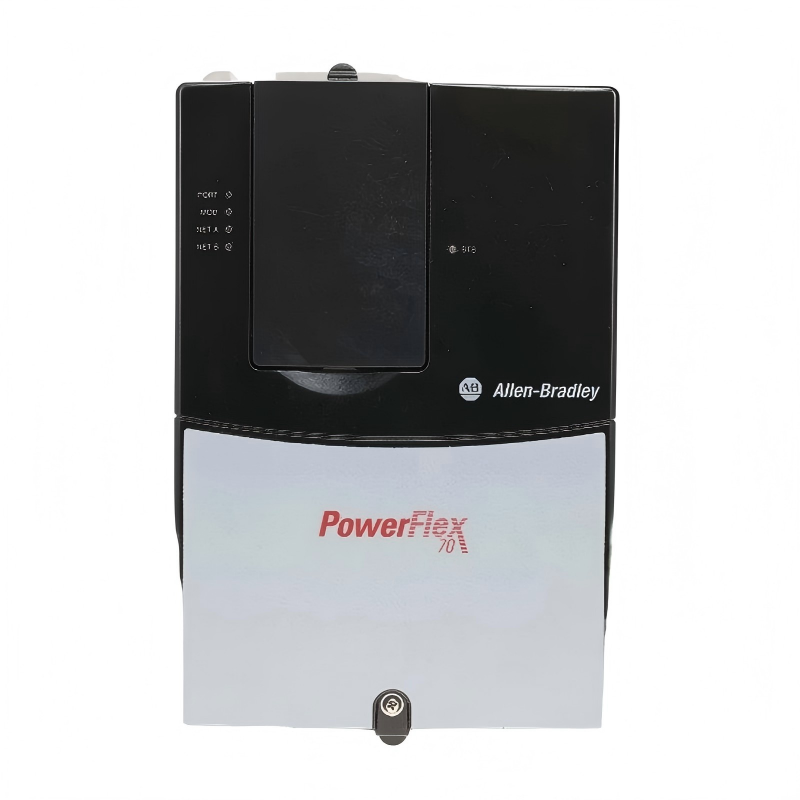

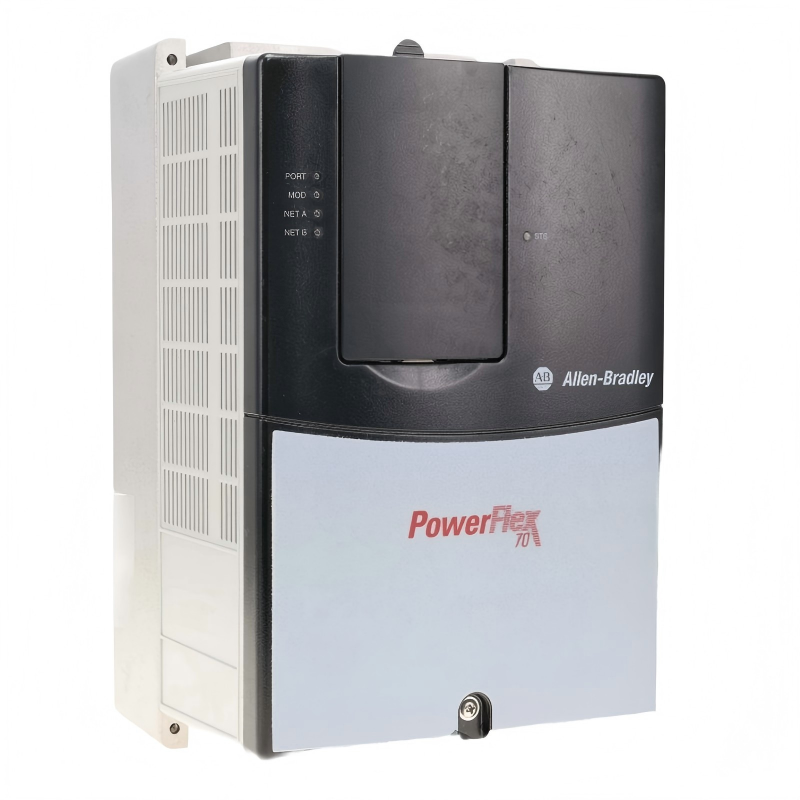

The Allen Bradley 20AD014A0AYNANC0 PowerFlex 70 AC Drive delivers reliable and efficient motor control for medium- to high-power industrial applications. It combines robust protection features with flexible control options to maintain smooth operation in demanding environments.

This drive is widely used in OEM machinery, automated production lines, and industrial systems where uptime, energy efficiency, and precise motor performance are essential.

Technical Specifications

Feature	Specification
Model	20AD014A0AYNANC0
Drive Series	PowerFlex 70 AC Drive
Input Voltage	380–480V AC, 3-phase
Output Voltage	0–480V AC, 3-phase
Output Current	14 A
Power Rating	7.5 kW (10 HP)
Control Method	V/Hz, Sensorless Vector
Dimensions (L × W × H)	185 × 300 × 179 mm
Weight	6.89 kg (15.19 lb)
Enclosure Rating	IP20
Communication	Optional industrial network modules
Ambient Operating Temperature	0–50°C (32–122°F)

Applications

The 20AD014A0AYNANC0 PowerFlex 70 AC Drive is designed for medium- to high-power industrial motor control where reliable performance and energy efficiency are critical. Common applications include:

Conveyor systems and automated production lines
Pumps, fans, and HVAC equipment
OEM machinery requiring precise speed and torque control
Material handling systems in manufacturing and warehousing
Retrofit projects replacing older fixed-speed or legacy drives

Its robust design ensures consistent operation under demanding conditions while providing flexibility for various industrial setups.

Advantages

High Performance: Provides precise motor speed and torque control for demanding applications
Energy Efficiency: Optimized control reduces energy consumption and operating costs
Robust Industrial Design: Built to withstand vibration, temperature fluctuations, and continuous operation
Flexible Control: Supports V/Hz and sensorless vector modes for versatile motor operation
Compact Panel Integration: 185 × 300 × 179 mm footprint allows efficient use of control cabinet space
User-Friendly Interface: Simplified keypad operation for easy setup and monitoring

Technical FAQs

Which motors are compatible with this drive?
Three-phase AC induction motors rated within the drive’s output capacity.
What input voltage does it require?
380–480V AC three-phase input supply.
Does it support vector control?
Yes, it supports sensorless vector control for improved motor performance.
Can it operate in HVAC systems?
Yes, ideal for pumps and fans in HVAC applications.
Is communication supported?
Yes, optional industrial network modules allow integration with PLCs.
Does it include braking capability?
Yes, it can work with an external braking resistor via built-in brake transistor.
What protection features are included?
Overload, overcurrent, undervoltage, and thermal protection are included.
Is it suitable for continuous industrial operation?
Yes, it is designed for continuous duty cycles.
Can it integrate with existing automation systems?
Yes, compatible with standard industrial communication protocols.
Does it require regular maintenance?
No, it is designed for reliable long-term operation with minimal maintenance.
