Product Overview

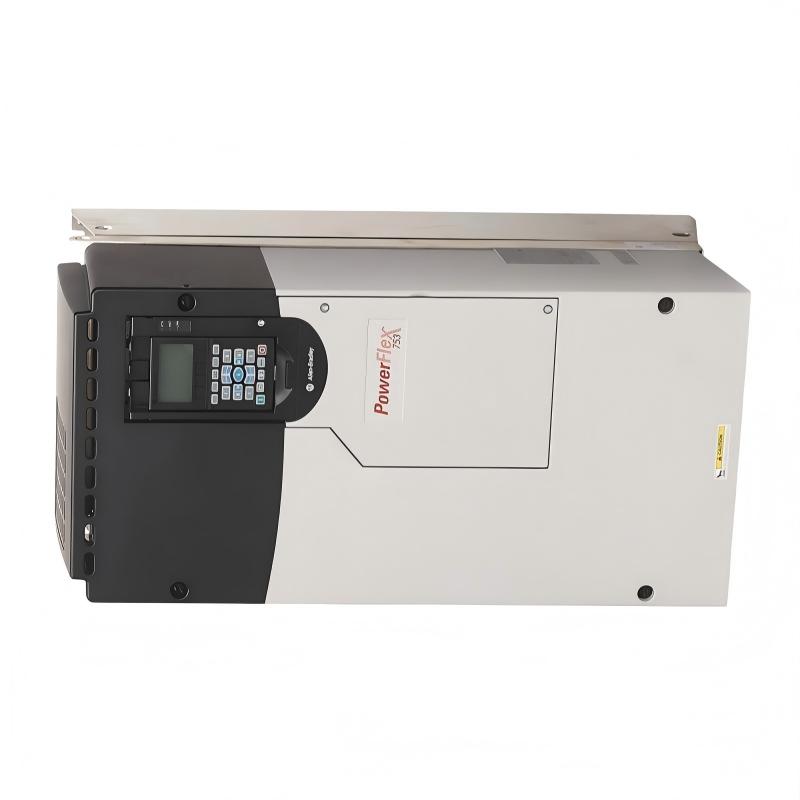

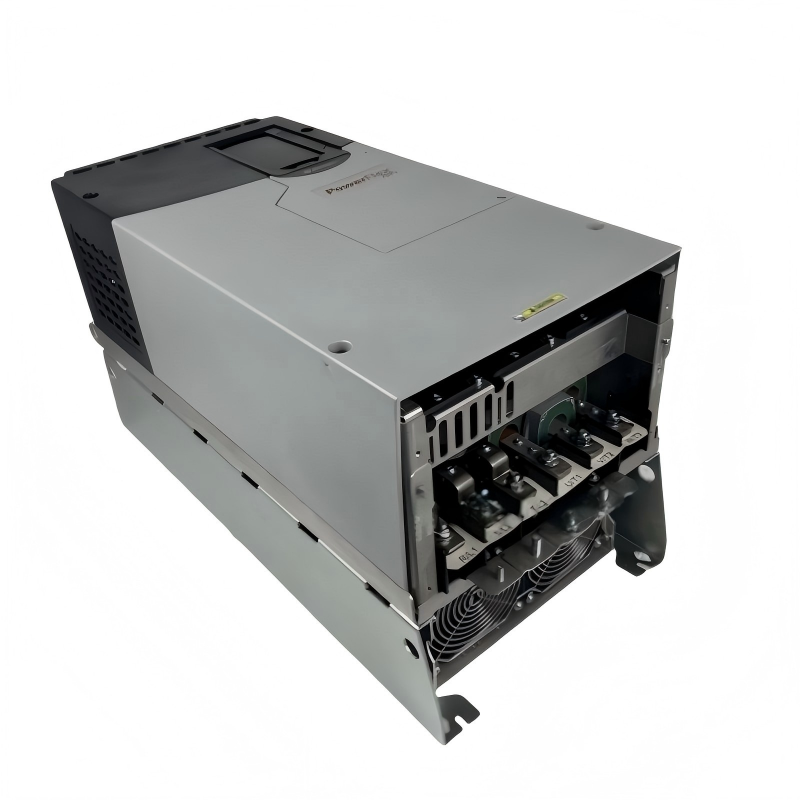

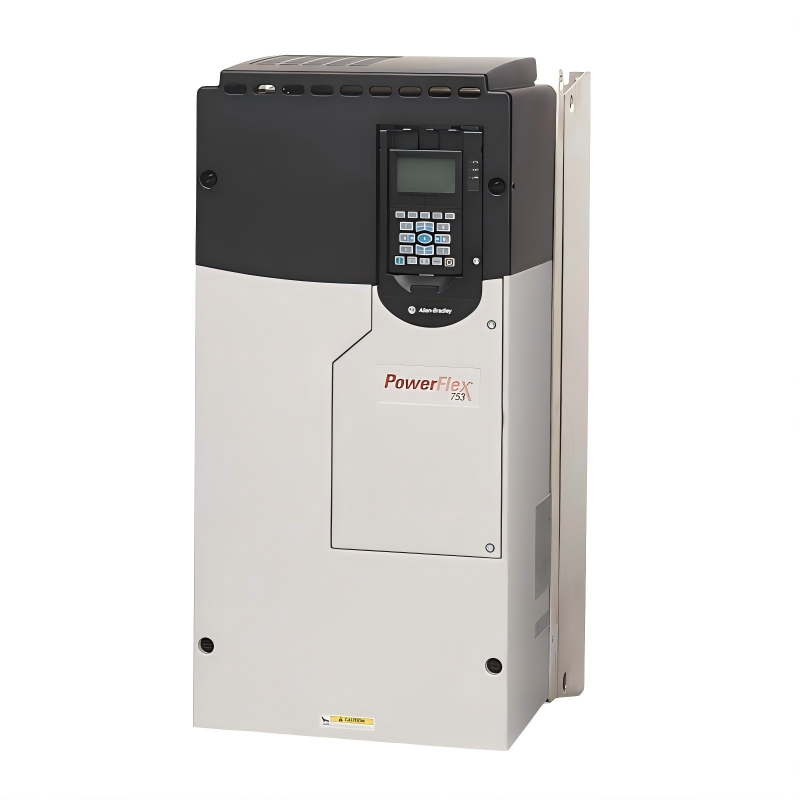

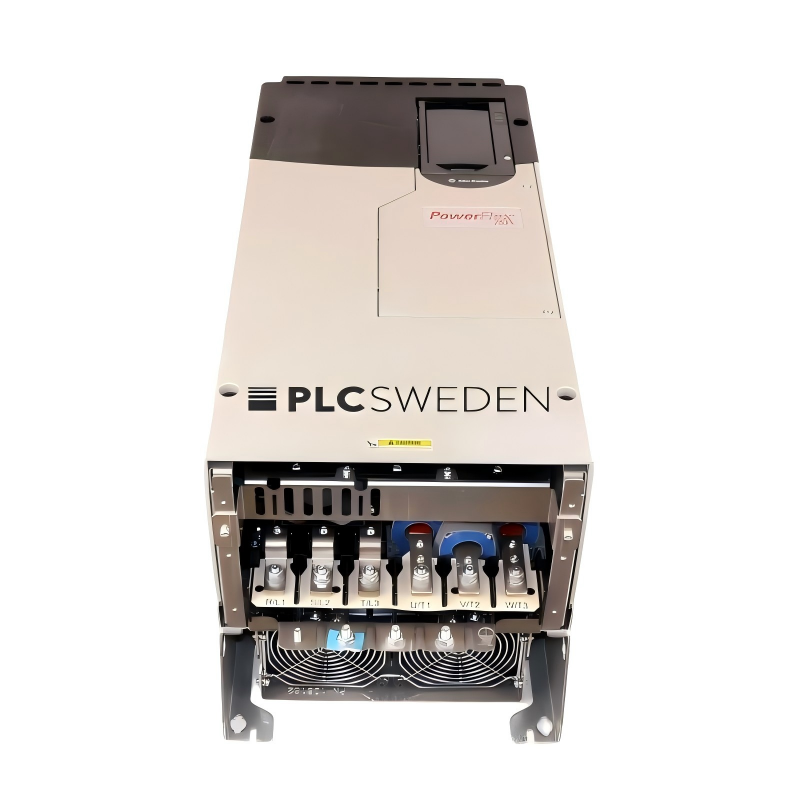

The 20F1ANC140JN0NNNNN PowerFlex 754 AC Drive is a high-power, industrial-grade motor controller optimized for large-scale automation systems. Its modular design allows integration with a range of communication and safety modules, enhancing system flexibility and reliability.

This drive delivers precise motor control, energy efficiency, and robust performance, making it ideal for industrial operations requiring dependable and continuous motor operation. The large physical form factor ensures ample thermal management, supporting high-load applications.

Technical Specifications

Parameter	Specification
Product Model	20F1ANC140JN0NNNNN
Drive Type	AC Variable Frequency Drive
Series	PowerFlex 754
Dimensions	665.5 × 308 × 346.4 mm
Weight	48 kg (105.8 lb)
Input Type	AC Supply
Application	High-power industrial motor control
Installation Type	Panel-mounted drive system

Applications

The Allen-Bradley PowerFlex 754 AC Drive (20F1ANC140JN0NNNNN) is designed for demanding industrial motor control applications requiring high power and precision. It provides advanced control for a wide range of AC motors, ensuring consistent performance in large-scale automation systems.

Common application areas include:

Heavy-duty pumps, fans, and compressors
Large conveyor systems and material handling lines
Process automation in chemical, water treatment, and energy sectors
HVAC and building management for industrial facilities
Machine tool and manufacturing automation requiring precise torque and speed control

This drive is ideal for applications where reliability, high efficiency, and operational safety are essential.

Advantages

The PowerFlex 754 drive combines robustness, versatility, and performance:

Advanced motor control algorithms for smooth torque and speed regulation
High-power capacity for demanding industrial processes
Integrated diagnostic and monitoring features for rapid troubleshooting
Compatible with a variety of industrial communication networks via add-on modules
Energy-efficient operation for cost-effective industrial performance
Modular and scalable architecture for flexible system design
Rugged construction suitable for harsh industrial environments

Its design supports continuous operation and reduces downtime, ensuring peak performance for critical applications.

Technical FAQ (10 Questions)

Q1: What motors are compatible with the 20F1ANC140JN0NNNNN?
A1: It supports three-phase AC induction motors, as well as synchronous motors in certain configurations.

Q2: Does it allow precise torque control?
A2: Yes, it provides advanced torque control for high-precision applications.

Q3: What communication options are available?
A3: With compatible communication modules, it supports EtherNet/IP, PROFIBUS, Modbus, and other industrial protocols.

Q4: Can it operate in multi-drive coordinated systems?
A4: Yes, it supports networked drive architectures with synchronized control.

Q5: Is it suitable for heavy-duty continuous operation?
A5: Yes, it is designed for continuous industrial duty cycles with high reliability.

Q6: Does it include built-in protection features?
A6: Yes, it has overload, overvoltage, undervoltage, and thermal protection.

Q7: Can parameters be backed up or restored?
A7: Yes, drive parameters can be saved and restored using authorized configuration tools.

Q8: Is firmware upgrade supported?
A8: Yes, firmware updates are supported through compatible engineering software.

Q9: Can it handle harsh industrial environments?
A9: Yes, the rugged design allows operation in environments with vibration, temperature fluctuations, and electrical noise.

Q10: How is the drive installed?
A10: It is designed for panel-mounted installation with modular integration options for communication and safety modules.
