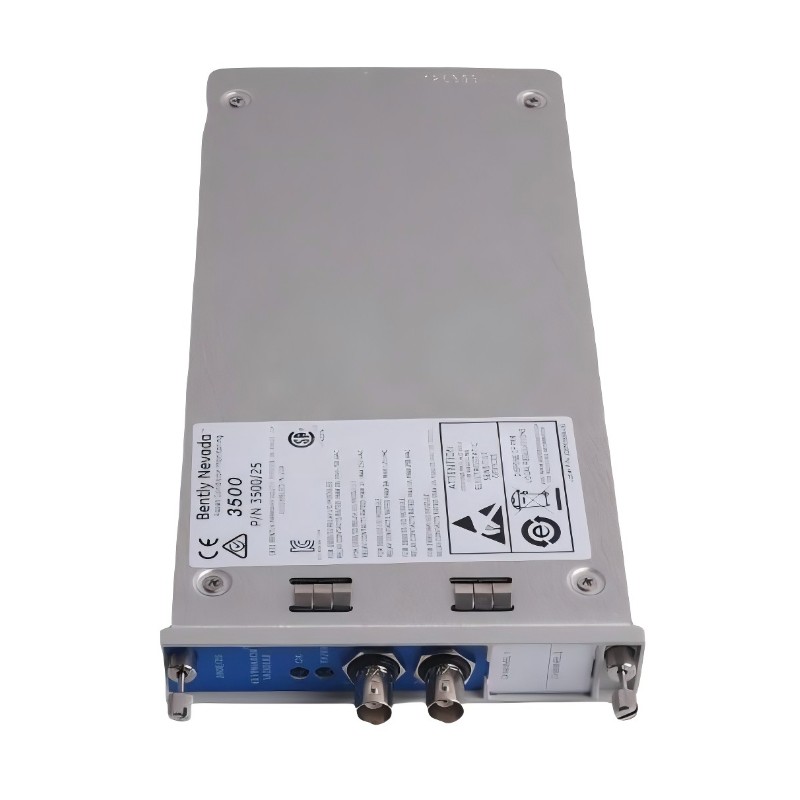

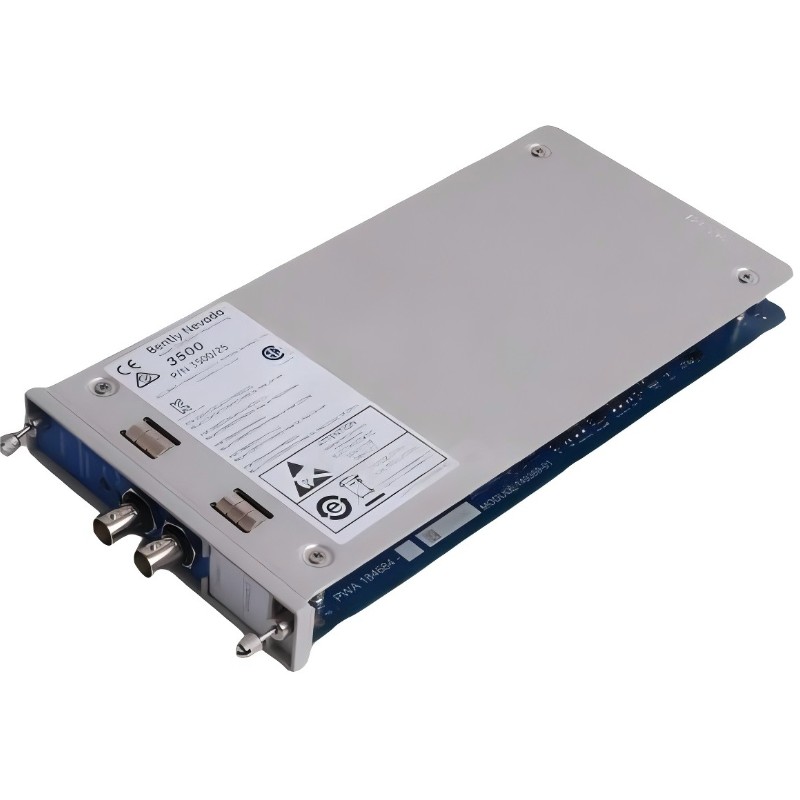

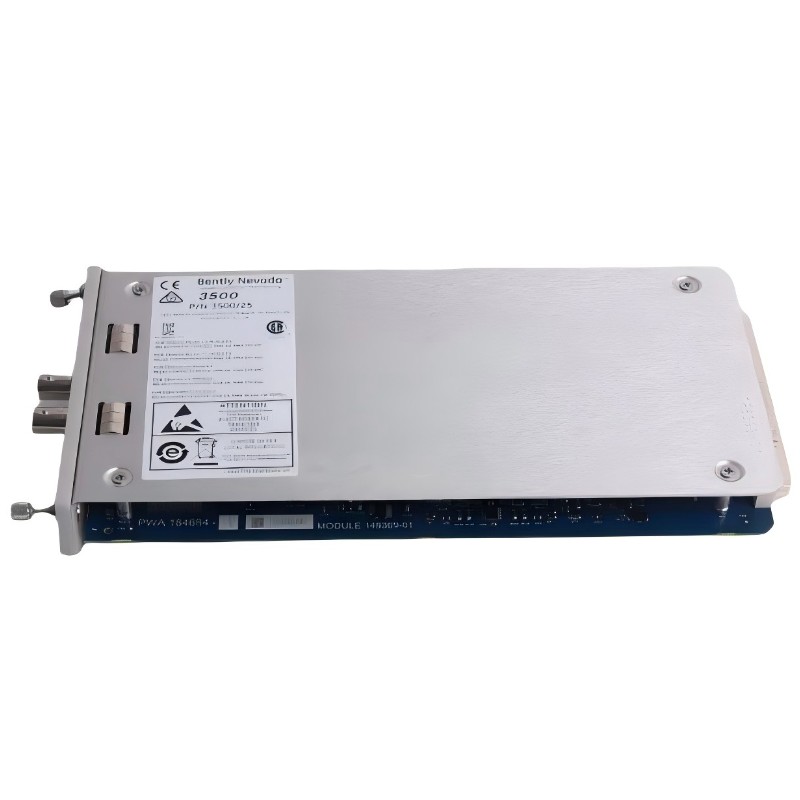

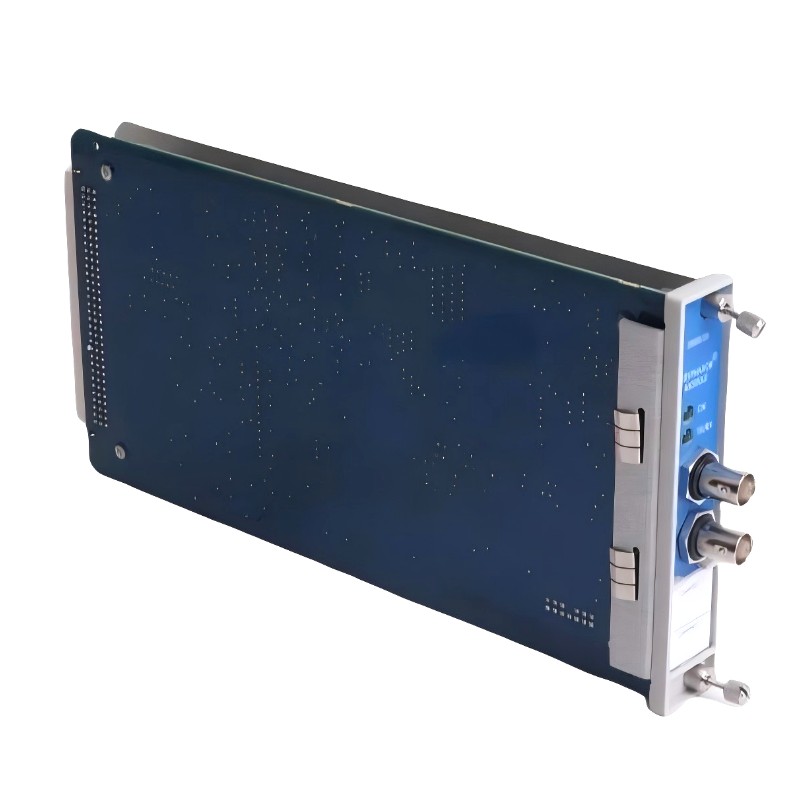

Bently Nevada 3500/25-01-02-00 Enhanced Bond Phase Module

Applications

• Rotor speed measurement systems
Used to provide precise rotational speed information for turbines, compressors, generators, and other rotating machinery.

• Phase reference monitoring
Generates accurate phase reference signals for vibration analysis and rotor dynamic studies.

• Machinery protection systems
Supplies critical speed and phase data to the Bently Nevada 3500 Machinery Protection System.

• Turbomachinery diagnostics
Supports advanced analysis of shaft behavior, imbalance, misalignment, and rotor condition.

• Predictive maintenance programs
Provides essential machine condition data for trend monitoring and reliability-centered maintenance.

Key Advantages

• Accurate rotational reference signals
Delivers precise speed and phase information for advanced machinery monitoring applications.

• Enhanced signal processing capability
Improves signal quality and reliability in demanding industrial environments.

• Seamless integration with 3500 systems
Designed specifically for use within the Bently Nevada 3500 monitoring platform.

• High reliability for critical assets
Supports continuous operation in power generation, oil and gas, and process industries.

• Advanced diagnostic support
Enables detailed rotor dynamic analysis and machinery performance evaluation.

Technical FAQs

Q1: What is the primary function of the 3500/25 module?
It provides Keyphasor® signals used for shaft speed, rotational reference, and phase measurements.

Q2: What is a Keyphasor signal?
A Keyphasor signal is a once-per-revolution reference pulse used for speed and phase calculations in rotating machinery.

Q3: Which machinery types commonly use this module?
It is commonly used with turbines, compressors, generators, motors, and pumps.

Q4: Can the module support machinery protection systems?
Yes, it supplies essential reference data to machinery monitoring and protection systems.

Q5: Is it compatible with the Bently Nevada 3500 rack system?
Yes, it is specifically designed for the 3500 Series platform.

Q6: Can it support vibration analysis applications?
Yes, it provides phase reference signals required for advanced vibration diagnostics.

Q7: Does it help identify rotor-related issues?
Yes, it supports detection of imbalance, misalignment, and other rotor dynamic conditions.

Q8: Is the module suitable for continuous operation?
Yes, it is engineered for 24/7 industrial monitoring environments.

Q9: Can multiple monitoring channels utilize its reference signal?
Yes, the module can provide reference information to multiple monitoring functions within the system.

Q10: What industries commonly use this module?
Power generation, petrochemical, oil and gas, mining, and heavy industrial facilities.
