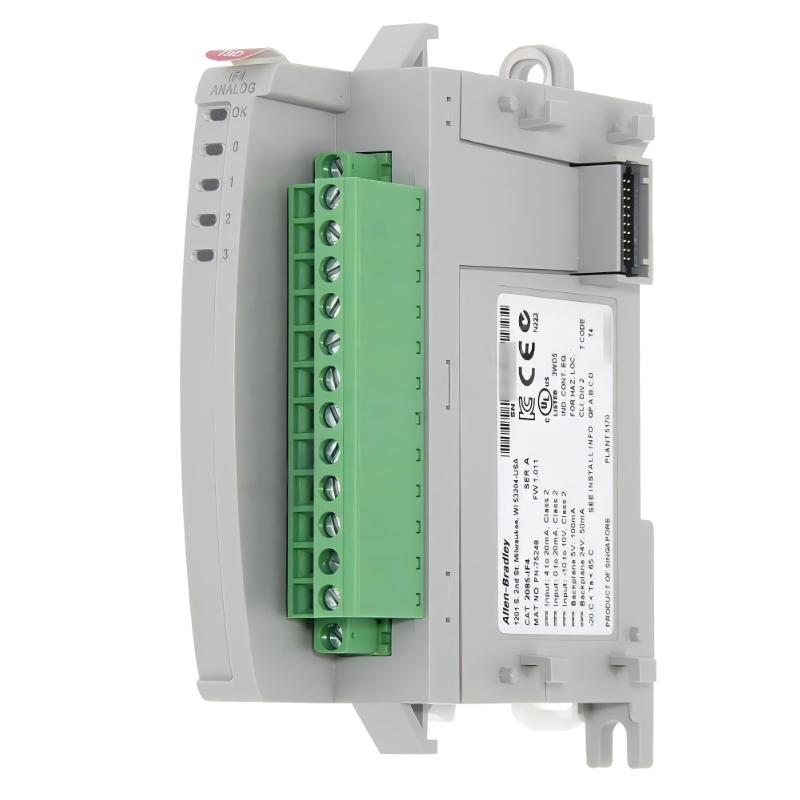

Allen Bradley 2085-IF4 Micro800 Analog Input Module
Allen Bradley 2085-IF4 Micro800 Analog Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:2085-IF4 Product Origin:USA Product Dimensions:90 x 28 x 87 mm Product Weight:0.14 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2085-IF4 Micro800 Analog Input Module is designed to expand the sensing capability of Micro800 PLC systems by enabling accurate acquisition of analog signals from industrial field devices. It plays a critical role in translating real-world process variables into digital data that controllers can process in real time.
Technical Specifications
Parameter
Specification
Product Model
2085-IF4
Series
Micro800 I/O System
Function
Analog Input Module
Input Channels
4
Dimensions
90 × 28 × 87 mm
Weight
0.14 kg
Compatibility
Micro820 / Micro830 / Micro850
Mounting Type
DIN rail system
Recommended Related Models
Model
Product Name
2085-OF4
Micro800 4-Channel Analog Output Module
2085-IQ16
Micro800 16-Point Digital Input Module
2085-IF8
Micro800 8-Channel Analog Input Module
2080-LC30-24QWB
Micro830 Compact Controller
Popular Related Models
Model
Product Name
2080-LC50-48QWB
Micro850 Advanced PLC Controller
2085-OB16
Micro800 16-Point Digital Output Module
2085-IRT4
Micro800 RTD Temperature Input Module
2085-OW8
Micro800 Relay Output Expansion Module
Applications
• Collects analog signals from industrial sensors such as pressure, temperature, and flow transmitters
• Used in Micro800 PLC systems (Micro820, Micro830, Micro850) for process monitoring and control
• Applied in packaging machinery for real-time parameter feedback and quality control
• Suitable for conveyor systems requiring continuous analog data acquisition
• Integrated into OEM automation panels for compact and scalable I/O expansion
Key Advantages
• Provides high-precision analog signal acquisition for stable process control
• Supports multiple analog input types for flexible system integration
• Compact design reduces panel space requirements in tight control cabinets
• Enhances system responsiveness through real-time data feedback
• Seamless compatibility with Micro800 controller architecture
Technical FAQs
1. What is the main function of the 2085-IF4 module?
It converts analog signals from field devices into digital data for Micro800 controllers.
2. What types of signals does it support?
It supports standard industrial analog inputs such as voltage and current signals.
3. Is it compatible with all Micro800 controllers?
Yes, it is designed for Micro820, Micro830, and Micro850 systems.
4. Does it require external configuration tools?
Configuration is done through Rockwell software environments.
5. Can it be used in harsh industrial environments?
Yes, it is designed for typical industrial automation conditions.
6. How many input channels does it provide?
It provides 4 analog input channels.
7. Does it support hot swapping?
No, installation should be performed with power removed.
8. What kind of applications require this module?
Process control, machinery monitoring, and industrial automation systems.
9. Does it need calibration after installation?
It is factory-calibrated but may be fine-tuned in the system.
10. Can it work without a Micro800 controller?
No, it must be used within a Micro800 PLC system.
