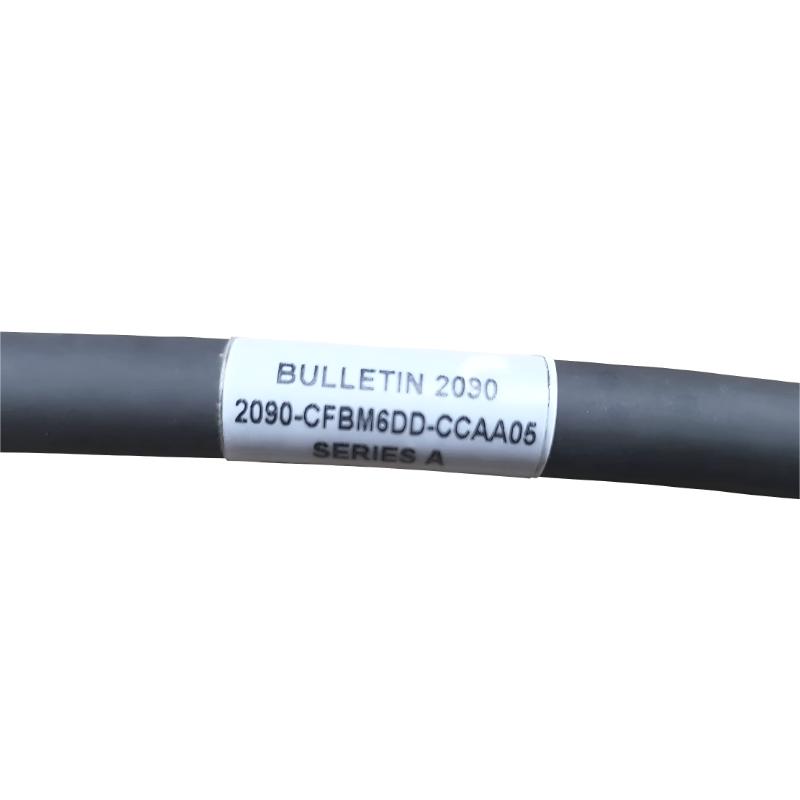

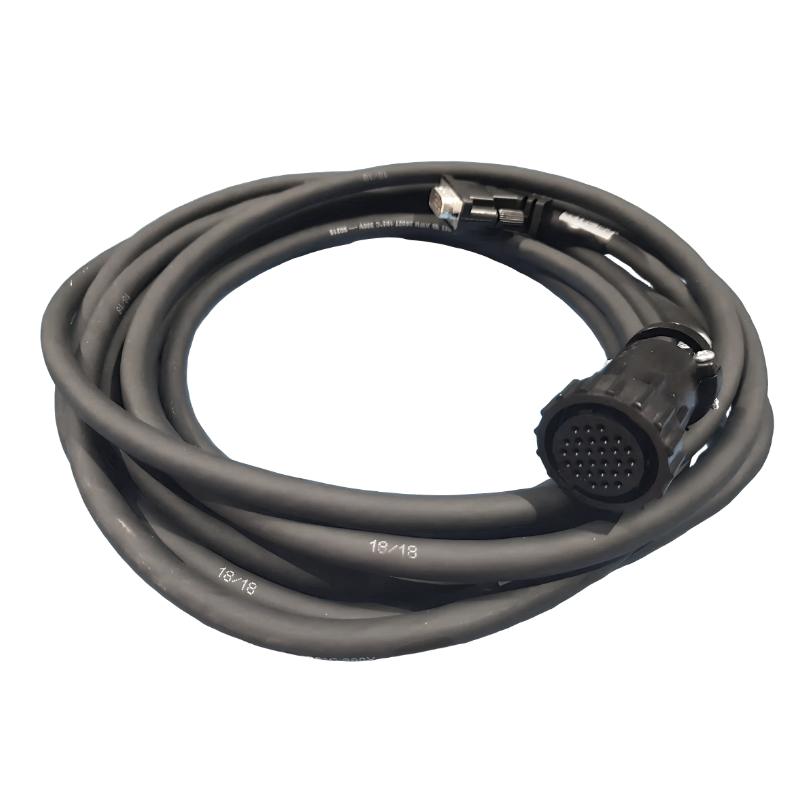

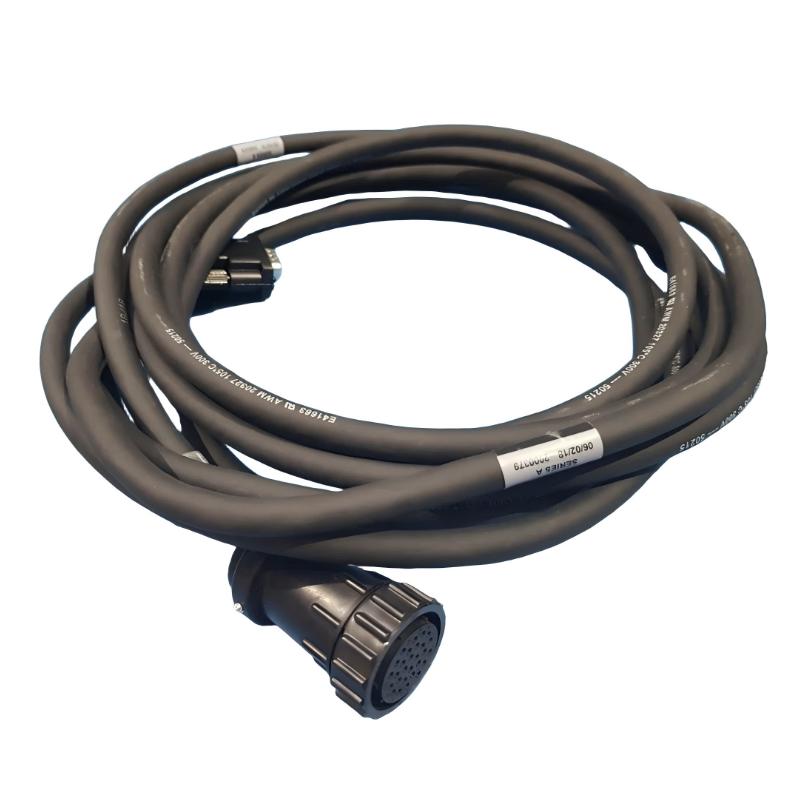

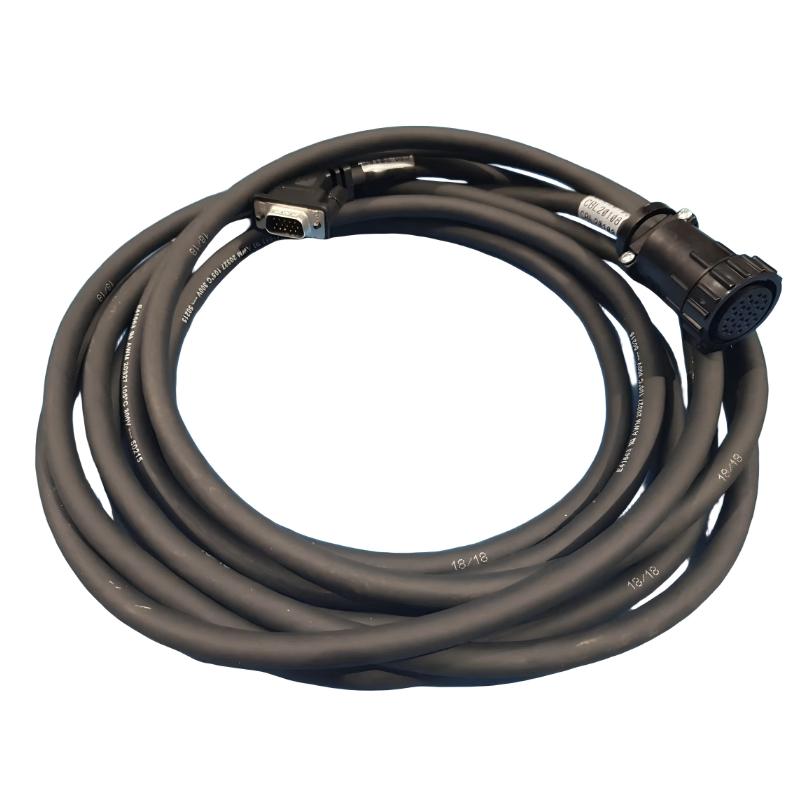

Allen Bradley 2090-CFBM6DD-CCAA05 Servo Feedback Cable
Allen Bradley 2090-CFBM6DD-CCAA05 Servo Feedback Cable
0.0
Points
Brand:Allen Bradley PLC Item No.:2090-CFBM6DD-CCAA05 Product Origin:USA Product Dimensions:Cable Length: 5 meters Product Weight:0.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2090-CFBM6DD-CCAA05 is a 5-meter servo feedback cable designed for precise motion control applications in Rockwell Automation systems. It connects the servo motor encoder directly to the drive, enabling accurate closed-loop feedback essential for high-performance positioning systems.
Technical Specifications
Parameter
Specification
Product Model
2090-CFBM6DD-CCAA05
Series
Kinetix / TL-Series Motion System
Function
Servo Motor Feedback Cable
Cable Length
5 m
Weight
0.6 kg
Connector Type
D-Sub / Circular Motor Feedback Connector
Signal Type
Incremental Encoder Feedback
Shielding
Industrial EMI shielding
Jacket Material
Industrial thermoplastic elastomer
Application
Servo motor to drive connection
Recommended Related Models
Model
Product Name
2090-CFBM6DD-CCAA03
3m Servo Feedback Cable for Kinetix Systems
2090-CFBM6DD-CCAA07
7m Servo Feedback Cable for Extended Reach Applications
2090-CSBM1DF-14AF10
Kinetix Single Motor Servo Cable Assembly
2090-CPBM7DF-16AA05
Servo Power Cable for Motion Control Systems
Popular Related Models
Model
Product Name
2094-BM05
Kinetix 6000 Servo Drive Module
2198-H008-ERS
Kinetix 5500 Servo Drive System
MPL-B330P-MJ72AA
Kinetix MPL Series Servo Motor
VPL-B1003E-PJ12AA
Kinetix VPL Compact Servo Motor
Applications
• Used for high-precision motor feedback connection in Kinetix and TL-Series servo systems
• Connects servo motors to drive controllers for accurate position and speed feedback
• Applied in CNC machinery, robotics, and motion control automation systems
• Suitable for packaging, assembly, and high-speed industrial production lines
• Ensures stable signal transmission in environments requiring real-time servo coordination
Key Advantages
• Provides reliable high-resolution feedback signal transmission for servo control accuracy
• Designed for industrial motion systems requiring low-noise and stable communication
• Robust shielding structure reduces electromagnetic interference in harsh environments
• Factory-engineered compatibility with Rockwell Kinetix/TL-Series drive systems
• Flexible routing design supports efficient installation in compact control cabinets
Technical FAQs
1. What is the main function of the 2090-CFBM6DD-CCAA05 cable?
It transmits encoder feedback signals between the servo motor and drive.
2. Is this cable compatible with Kinetix drives?
Yes, it is designed for Rockwell Kinetix servo systems.
3. What type of feedback does it support?
It supports incremental encoder feedback signals.
4. Can it be used in continuous flex applications?
No, it is designed for standard motion applications, not continuous flex duty.
5. Does cable length affect signal quality?
The 5-meter design is engineered to maintain stable signal integrity within rated limits.
6. Is shielding included in the cable design?
Yes, it includes industrial shielding to reduce EMI interference.
7. Can it be used with third-party servo drives?
It is optimized for Allen-Bradley motion systems, compatibility with others is not guaranteed.
8. What environments is it suitable for?
Industrial automation environments such as CNC, robotics, and packaging systems.
9. Does it require configuration or programming?
No, it is a passive hardware connection component.
10. What happens if the cable is damaged or low quality?
It can cause feedback loss, positioning errors, or servo drive faults.
