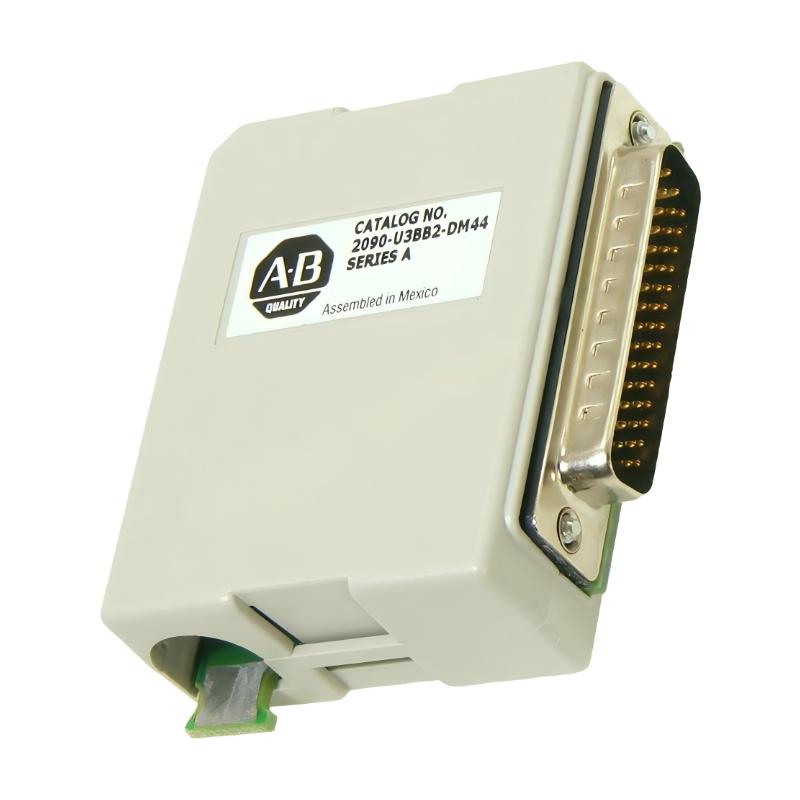

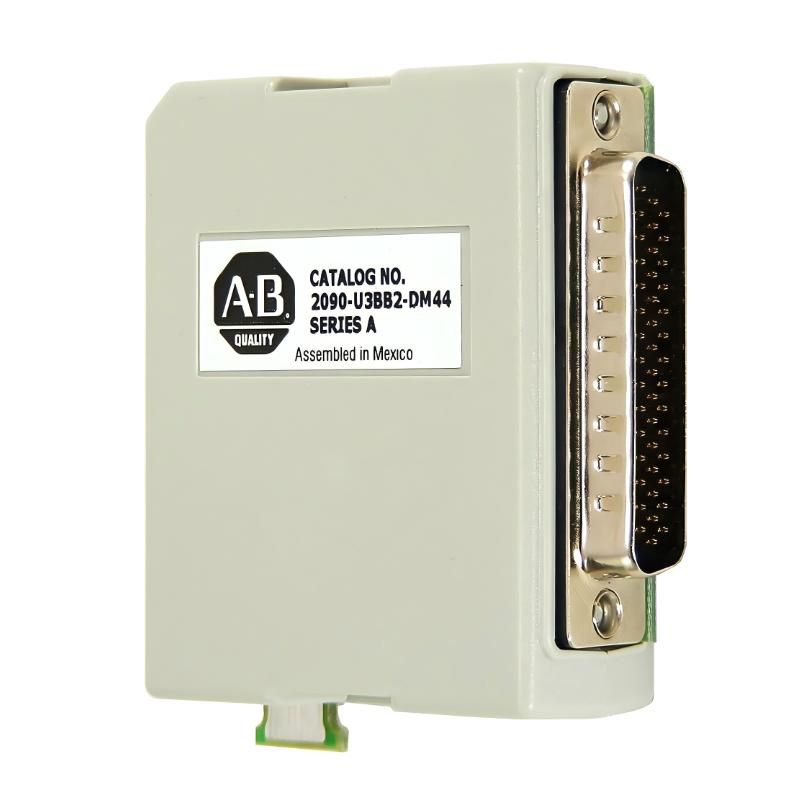

Allen Bradley 2090-U3BB2-DM44 Control Interface Distribution Board

Applications

• Used in Ultra3000 servo drive systems to distribute and terminate CN1 control interface signals

• Applied in motion control cabinets requiring structured wiring between PLC-level control and drive I/O

• Suitable for CNC machinery, robotics, and multi-axis automation systems

• Used in industrial equipment where centralized signal breakout improves wiring organization

• Supports integration of discrete inputs, outputs, and communication signals in servo drive architectures

Key Advantages

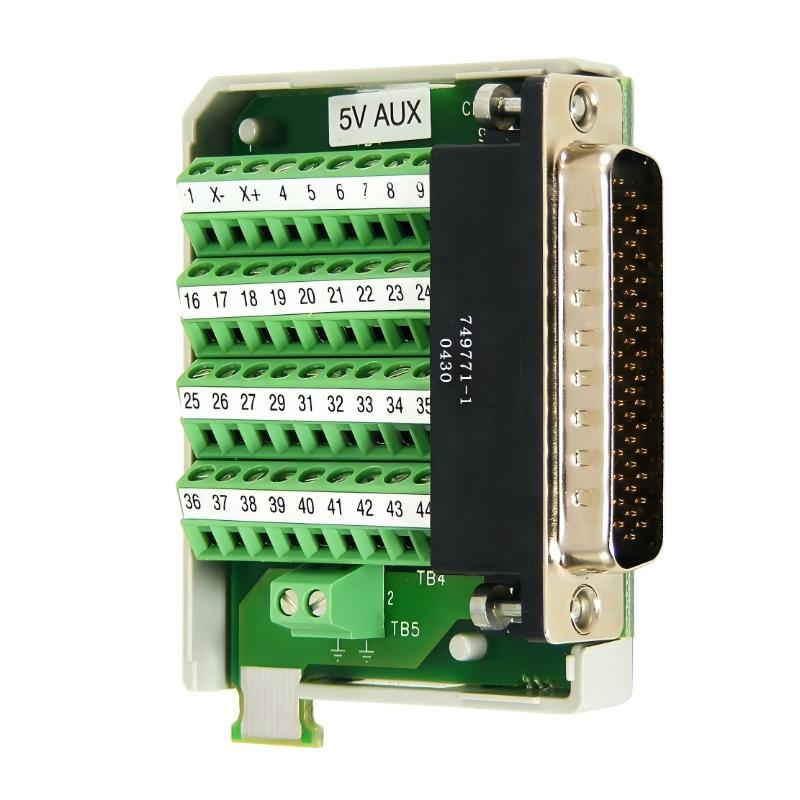

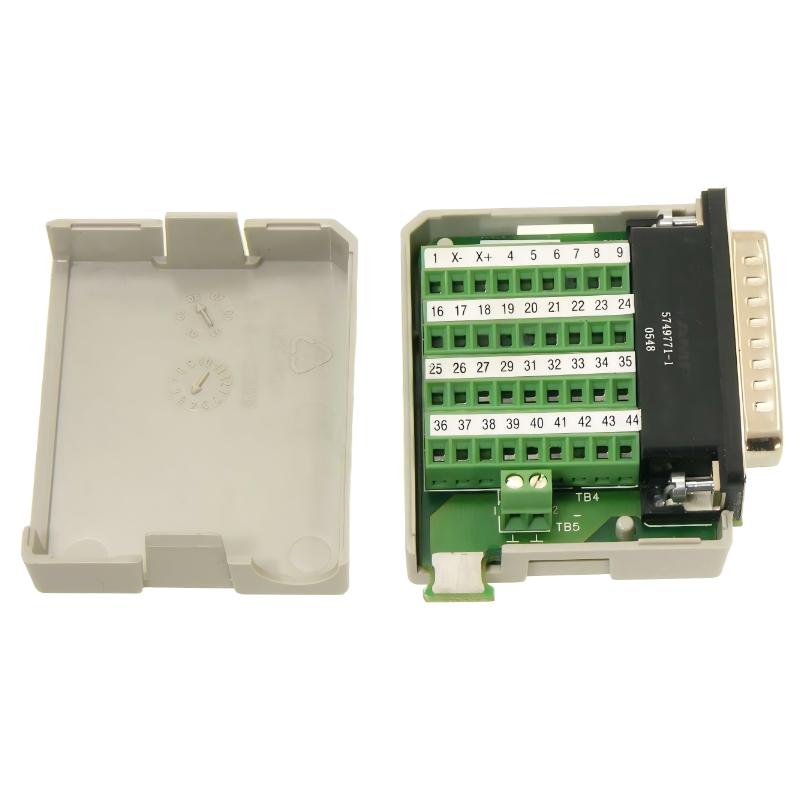

• Provides centralized breakout for 44-pin CN1 control interface wiring

• Improves wiring clarity and reduces cabling complexity inside servo drive cabinets

• Enhances maintenance efficiency by separating field wiring from drive electronics

• Supports stable signal distribution for Ultra3000 drive control systems

• Includes design features for shielding and secure terminal management in industrial environments

Technical FAQs

1. What is the main function of the 2090-U3BB2-DM44?
It serves as a breakout board for CN1 control interface signals on Ultra3000 servo drives.

2. Which drives is it compatible with?
It is designed for Allen-Bradley Ultra3000 series servo drives.

3. What type of connector does it use?
It uses a 44-pin D-sub connector for control signal distribution.

4. Does it process signals or only distribute them?
It only distributes and terminates control signals; it does not process data.

5. Is external power required?
Yes, an auxiliary 5.2V DC supply is required for control power retention.

6. Can it be used with non-Ultra3000 systems?
It is specifically designed for Ultra3000 compatibility and is not generally supported elsewhere.

7. What signals are typically handled?
Digital inputs, outputs, relay signals, and communication lines via CN1 interface.

8. Is it installed inside the drive or externally?
It is mounted directly on or near the drive assembly.

9. Does it require programming or configuration?
No programming is required; it is a passive interface hardware module.

10. What happens if it is incorrectly wired?
Incorrect wiring may cause drive communication errors or loss of I/O control.
