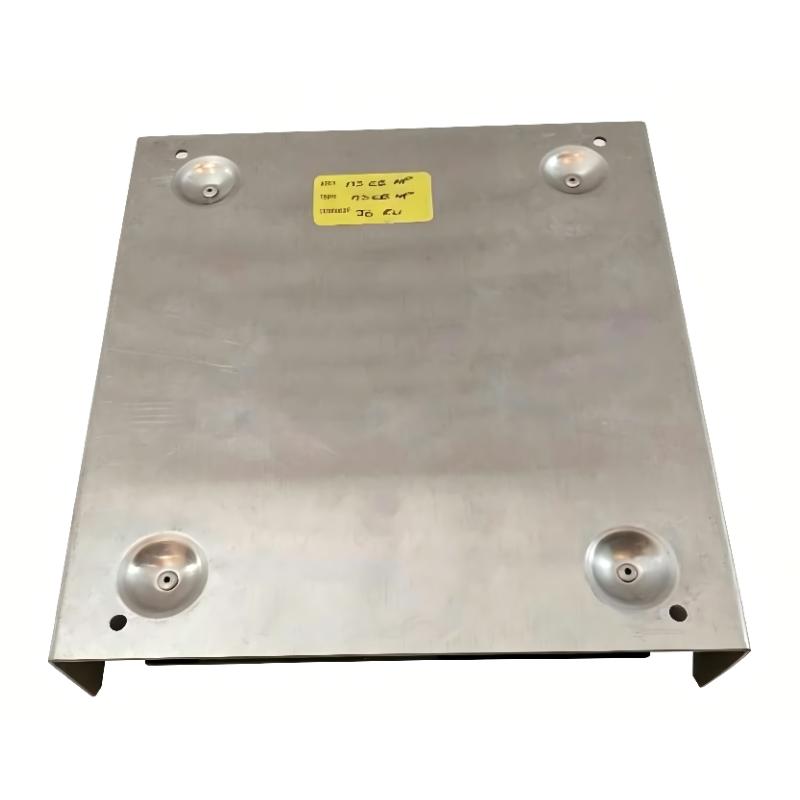

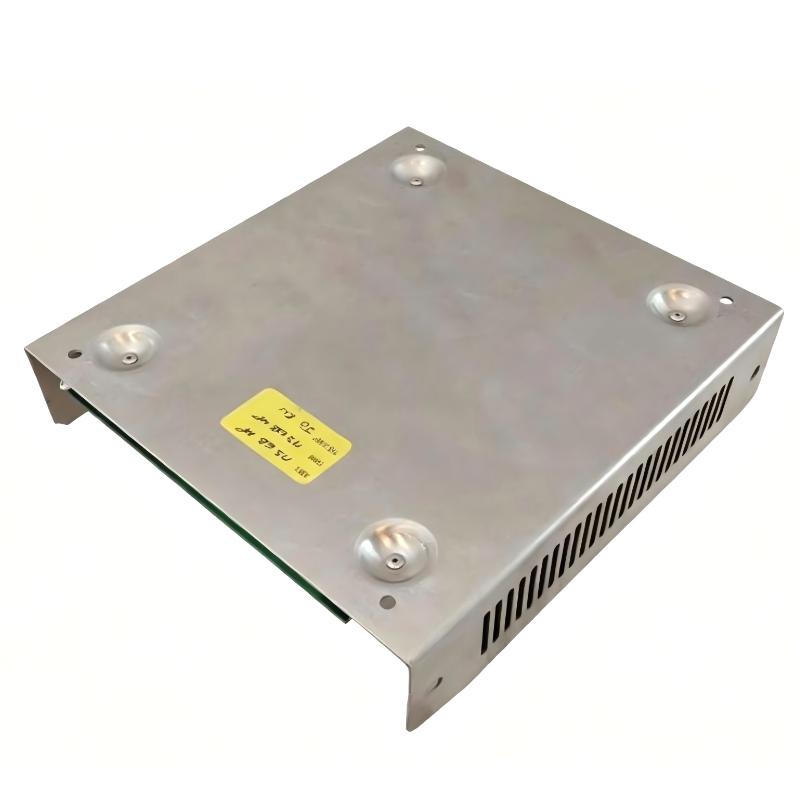

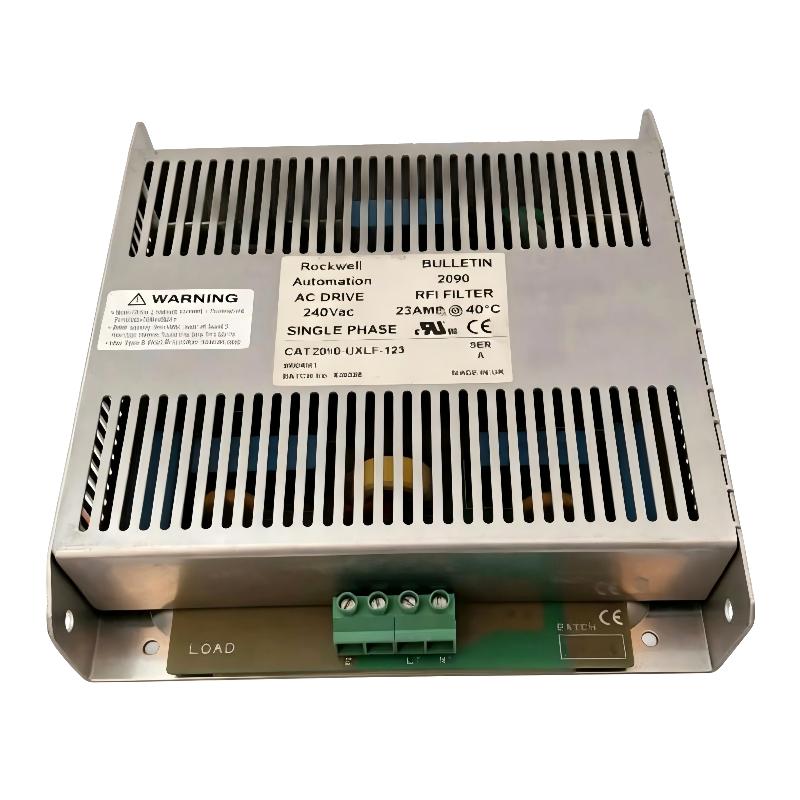

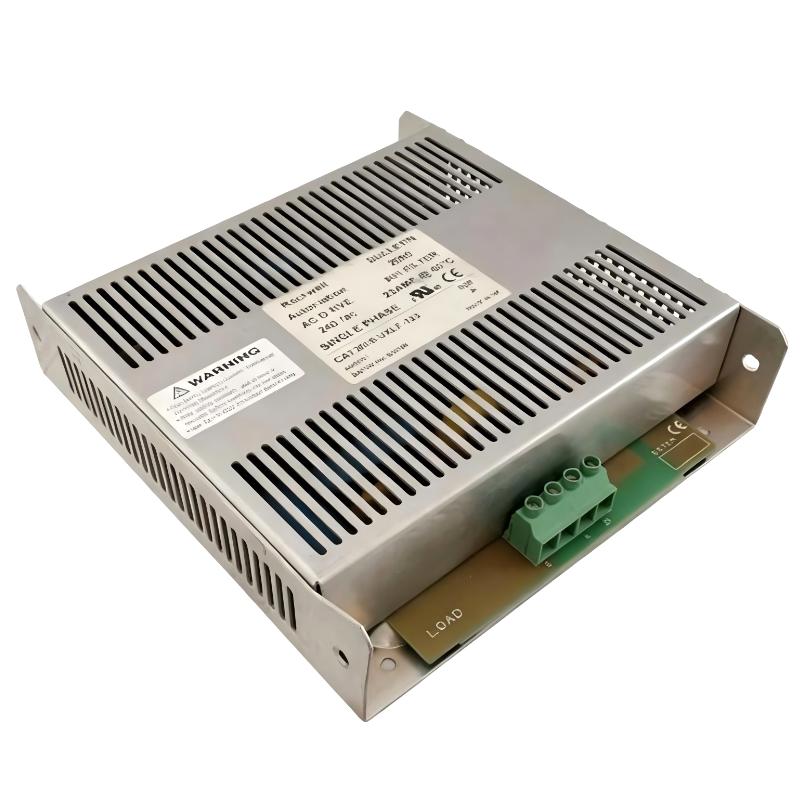

Allen Bradley 2090-UXLF-123 Ultra 3000 AC Line Filter
Allen Bradley 2090-UXLF-123 Ultra 3000 AC Line Filter
0.0
Points
Brand:Allen Bradley PLC Item No.:2090-UXLF-123 Product Origin:USA Product Dimensions:214 x 40 x 145 mm Product Weight:1.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2090-UXLF-123 is a 23A AC line filter engineered for Ultra3000 servo drive systems. It plays a critical role in maintaining clean power delivery by reducing electromagnetic interference and electrical noise that can affect sensitive motion control operations.
Technical Specifications
Parameter
Specification
Product Model
2090-UXLF-123
Series
Ultra3000 Motion System
Function
AC Line Filter
Rated Current
23 A
Phase
Single-phase
Voltage Range
250–300 VAC
Weight
1.6 kg
Dimensions
214 × 40 × 145 mm
Application
Servo drive power conditioning
Recommended Related Models
Model
Product Name
2090-UXLF-110
Ultra3000 10A AC Line Filter
2090-UXLF-132
Ultra3000 32A AC Line Filter
2090-UXLF-106
Ultra3000 6A Compact Line Filter
2098-DSD-020
Ultra3000 Servo Drive Module (20A Class)
Popular Related Models
Model
Product Name
2090-UXLF-136
Ultra3000 36A AC Line Filter
2090-UXLF-HV330
High Voltage Ultra3000 Line Filter
MPL-B330P-MJ72AA
MP-Series Servo Motor
2198-H025-ERS
Kinetix 5500 Servo Drive System
Applications
• Used with Ultra3000 servo drive systems to reduce electromagnetic noise and improve power quality
• Applied in CNC machinery, robotics, and high-precision motion control equipment
• Suitable for industrial automation panels requiring stable AC line conditioning
• Used in factory environments with high electrical noise or long motor cable runs
• Supports reliable operation of servo drives in continuous production systems
Key Advantages
• Provides effective suppression of EMI and RFI noise in servo drive power lines
• Improves overall system stability and reduces electrical interference-related faults
• Designed specifically for Ultra3000 drive compatibility and performance optimization
• Enhances motor drive reliability in harsh industrial electrical environments
• Compact, panel-mount design allows easy integration into control cabinets
Technical FAQs
1. What is the function of the 2090-UXLF-123?
It filters AC power to reduce electrical noise for Ultra3000 servo drives.
2. Which systems is it compatible with?
It is designed for Allen-Bradley Ultra3000 servo drive systems.
3. What is its rated current?
It is rated for 23A operation.
4. Does it support single-phase or three-phase power?
It is designed for single-phase AC applications.
5. Why is a line filter needed in servo systems?
To reduce EMI/RFI interference and improve drive stability.
6. Where is it installed?
It is typically installed between the power supply and servo drive input.
7. Does it require programming?
No, it is a passive electrical component.
8. What happens if it is not used?
Increased electrical noise may cause drive faults or instability.
9. Is it suitable for long motor cable applications?
Yes, it helps stabilize systems with extended motor wiring.
10. Can it be used outside Ultra3000 systems?
It is specifically designed for Ultra3000 compatibility.
