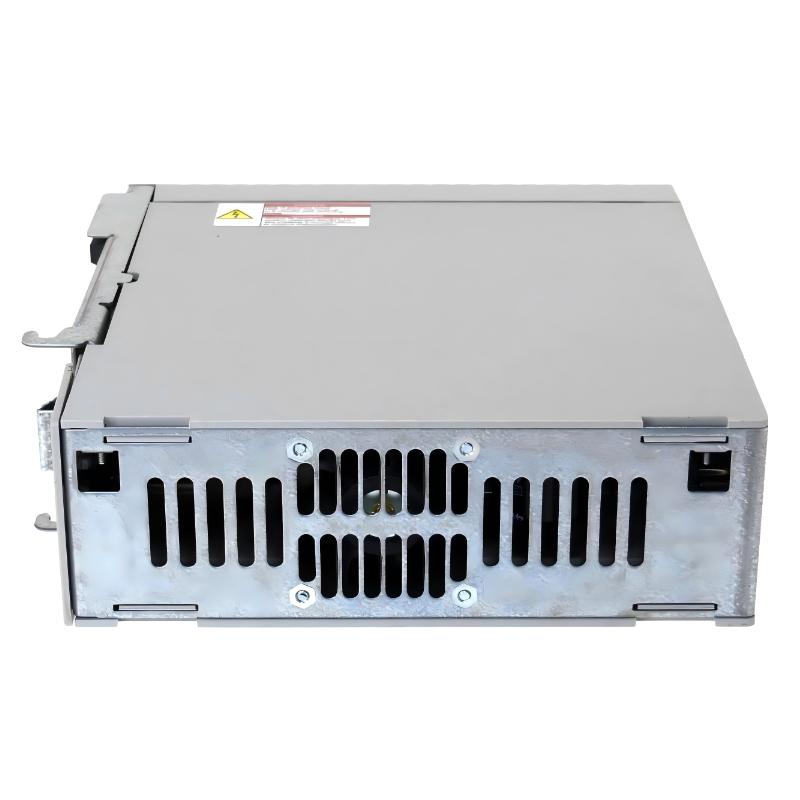

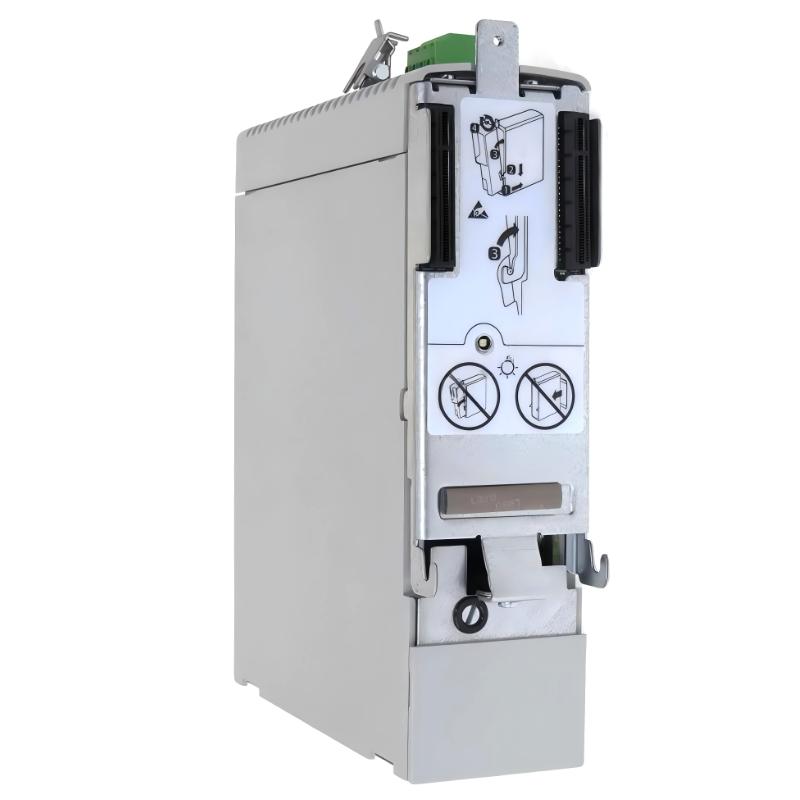

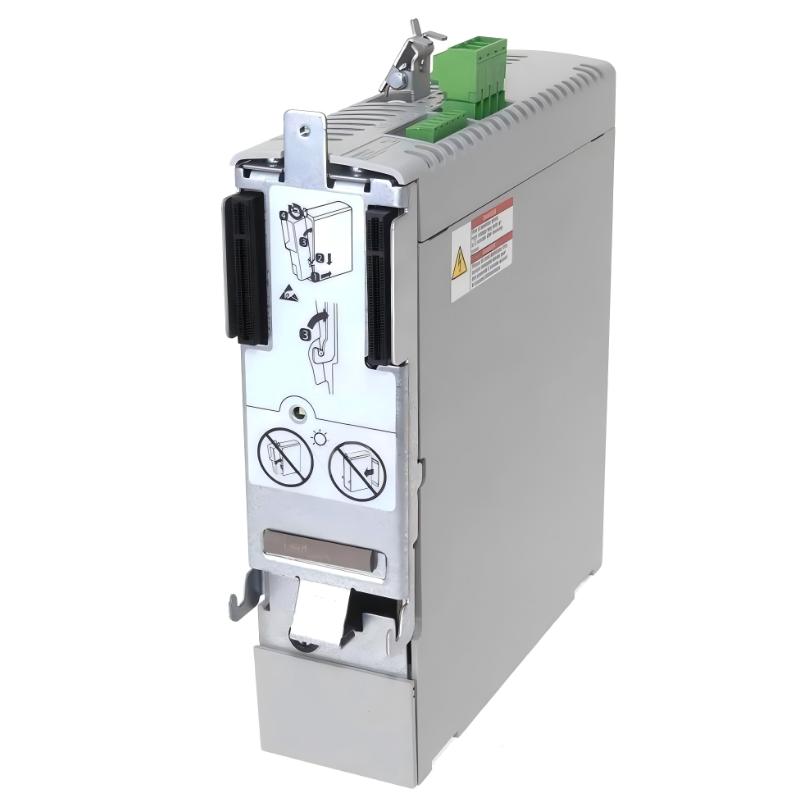

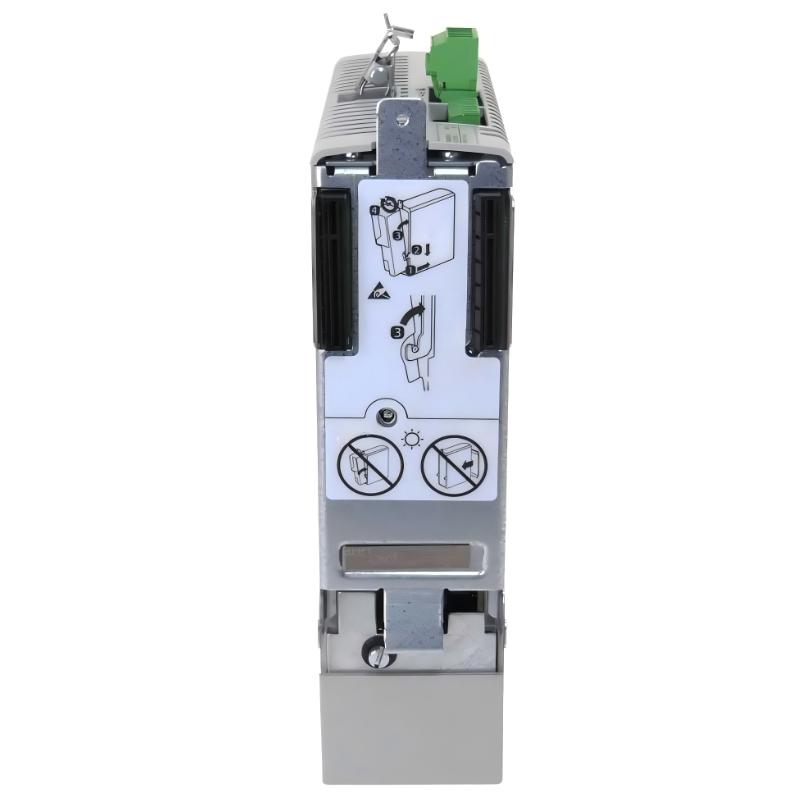

Allen Bradley 2094-BM01-M Kinetix 6000 Axis Module
Allen Bradley 2094-BM01-M Kinetix 6000 Axis Module
0.0
Points
Brand:Allen Bradley PLC Item No.:2094-BM01-M Product Origin:USA Product Dimensions:290 x 70 x 285 mm Product Weight:3.18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2094-BM01-M is a Kinetix 6000 Axis Module designed for high-performance industrial motion control applications. It operates as a key building block within multi-axis servo drive systems, converting incoming power into precisely regulated motor output for accurate torque and speed control.
Technical Specifications
Parameter
Specification
Product Model
2094-BM01-M
Series
Kinetix 6000 / 6200 / 6500
Function
Axis Module
Input Voltage
360–480V AC, 3-phase
Continuous Output Power
3.9 kW
Continuous Current
6.1 A
Peak Current
15.3 A
Efficiency
98%
Dimensions
290 × 70 × 285 mm
Weight
3.18 kg
Mounting Type
Kinetix power rail system
Recommended Related Models
Model
Product Name
2198-D012-ERS3
Kinetix 5700 Axis Module Replacement Unit
2094-BC01-M01
Kinetix 6000 System Connector Module
2094-BM02-M
Kinetix 6000 Higher Current Axis Module
2198-H025-ERS
Kinetix 5500 Servo Drive System
Popular Related Models
Model
Product Name
MPL-B330P-MJ72AA
MP-Series Servo Motor
VPL-B1003E-PJ12AA
Compact Kinetix Servo Motor
2090-CPBM7DF-16AA10
Servo Power & Brake Cable (10 m)
2090-CFBM7DF-CEAA05
Servo Feedback Cable (5 m)
Applications
• Used in Kinetix 6000 multi-axis servo drive systems for high-performance motion control
• Applied in CNC machining centers requiring precise multi-axis synchronization
• Suitable for robotics, semiconductor equipment, and automated manufacturing lines
• Integrated into packaging, assembly, and high-speed industrial motion platforms
• Supports complex motion architectures where multiple axis modules share a common DC bus
Key Advantages
• Delivers high-efficiency servo axis control with stable 400V-class industrial performance
• Supports precise current regulation for accurate motor torque and positioning control
• Modular design enables scalable multi-axis system configuration on a shared power rail
• High short-circuit rating enhances robustness in demanding industrial environments
• Optimized for integration within Rockwell Logix-based motion control architectures
Technical FAQs
1. What is the function of the 2094-BM01-M module?
It acts as an axis module that controls servo motor power and motion within a Kinetix 6000 system.
2. What systems is it compatible with?
It is designed for Allen-Bradley Kinetix 6000 and Kinetix 6200/6500 platforms.
3. What is its power rating?
It provides approximately 3.9 kW continuous output power.
4. What is the operating voltage range?
It operates on 360–480V AC three-phase supply.
5. Is it still in production?
No, it is discontinued, with a recommended replacement available in newer Kinetix platforms.
6. How is it installed?
It mounts directly onto the Kinetix power rail alongside other axis modules.
7. What type of control architecture does it support?
It supports multi-axis coordinated motion control systems.
8. Does it include built-in safety features?
Yes, it integrates with system-level safety and motion control functions.
9. What is its efficiency level?
It operates at approximately 98% efficiency.
10. What happens if an axis module fails?
It may cause loss of motion control for the affected axis or fault the entire drive system depending on configuration.
