Allen Bradley 2094-BM03-S Kinetix 6000 Axis Module

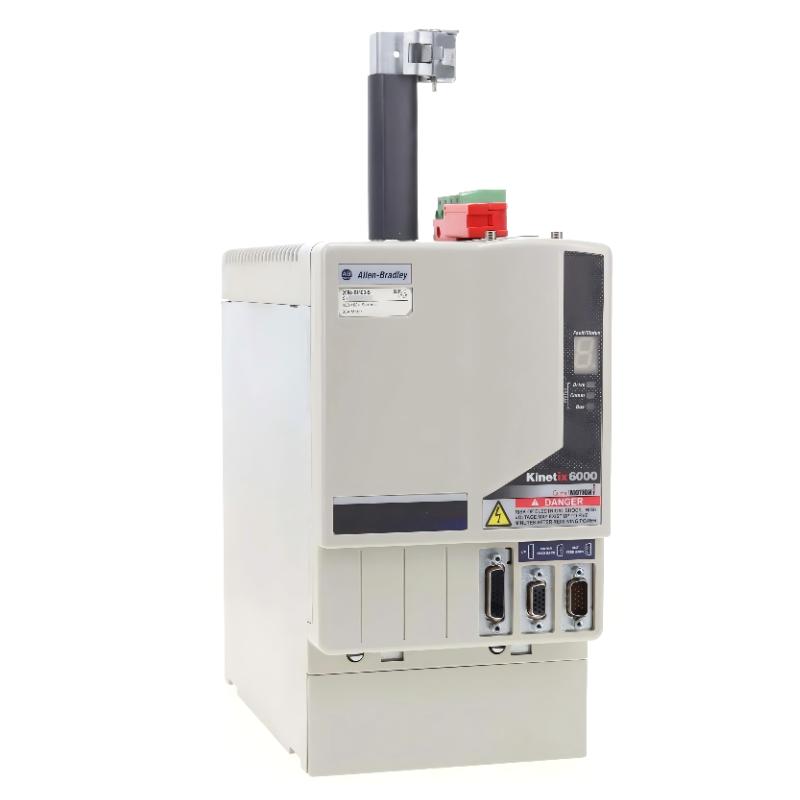

Allen Bradley 2094-BM03-S Kinetix 6000 Axis Module
0.0
Points
Brand:Allen Bradley PLC Item No.:2094-BM03-S Product Origin:USA Product Dimensions:375 x 141 x 249 mm Product Weight:4.58 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2094-BM03-S is a Kinetix 6000 Axis Module designed for high-performance multi-axis motion control systems. It plays a central role in converting DC bus power into precisely regulated motor output, enabling accurate control of speed, torque, and positioning in complex industrial machines.
Technical Specifications
Parameter
Specification
Product Model
2094-BM03-S
Series
Kinetix 6000
Function
Axis Module
Input Voltage
360–480V AC (3-phase)
DC Bus Voltage
~650V DC
Continuous Output Power
~13.5 kW
Continuous Current
~21.2 A
Peak Current
~53 A
Efficiency
~98%
Dimensions
375 × 141 × 249 mm
Weight
4.58 kg
Recommended Related Models
Model
Product Name
2198-D057-ERS3
Kinetix 5700 Axis Module Replacement
2094-BM02-M
Kinetix 6000 Lower Power Axis Module
2094-BC04-M03-S
Kinetix 6000 Integrated Axis Module
2198-H025-ERS
Kinetix 5500 Servo Drive System
Popular Related Models
Model
Product Name
MPL-B330P-MJ72AA
MP-Series Servo Motor
VPL-B1003E-PJ12AA
Compact Kinetix Servo Motor
2090-CPBM7DF-16AA10
Servo Power & Brake Cable (10 m)
2090-CFBM7DF-CEAA05
Servo Feedback Cable (5 m)
Applications
• Used in Kinetix 6000 multi-axis servo drive systems for coordinated motion control in industrial automation
• Applied in CNC machining centers requiring high-precision multi-axis synchronization
• Suitable for robotics systems, semiconductor manufacturing equipment, and packaging automation lines
• Integrated into high-speed production machinery where torque and position accuracy are critical
• Supports modular drive architectures sharing a common DC bus for scalable machine design
Key Advantages
• Delivers high-performance 400V-class axis control with strong dynamic response for demanding motion tasks
• Supports precise torque and speed regulation for stable servo performance under variable load conditions
• Modular multi-axis design enables flexible system expansion and compact cabinet integration
• Integrated safety functions such as Safe Torque-Off enhance operational safety and compliance
• High efficiency design reduces energy loss while maintaining consistent industrial-grade reliability
Technical FAQs
1. What is the function of the 2094-BM03-S?
It is an axis module that controls servo motor power output in a Kinetix 6000 system.
2. Which systems is it compatible with?
It is designed for Allen-Bradley Kinetix 6000 multi-axis drive platforms.
3. What is its power rating?
It typically supports around 13.5 kW output power depending on configuration.
4. What voltage level does it operate on?
It operates in the 400–480V AC industrial power class with DC bus architecture.
5. Is this module still available?
It has been discontinued, with replacement solutions available in newer Kinetix series.
6. Does it support multi-axis operation?
Yes, it is designed specifically for shared-bus multi-axis systems.
7. What safety features are included?
It includes Safe Torque-Off (STO) functionality for safe machine operation.
8. How is it installed?
It mounts directly onto the Kinetix 6000 power rail system.
9. What happens if one axis module fails?
Depending on system configuration, it may affect a single axis or the entire drive network.
10. Is programming required for the module itself?
No, configuration is handled through the motion controller system.
