Brand:Allen Bradley PLC Item No.:2094-BSP2 Product Origin:USA Product Dimensions:287 x 70 x 249 mm Product Weight:3.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

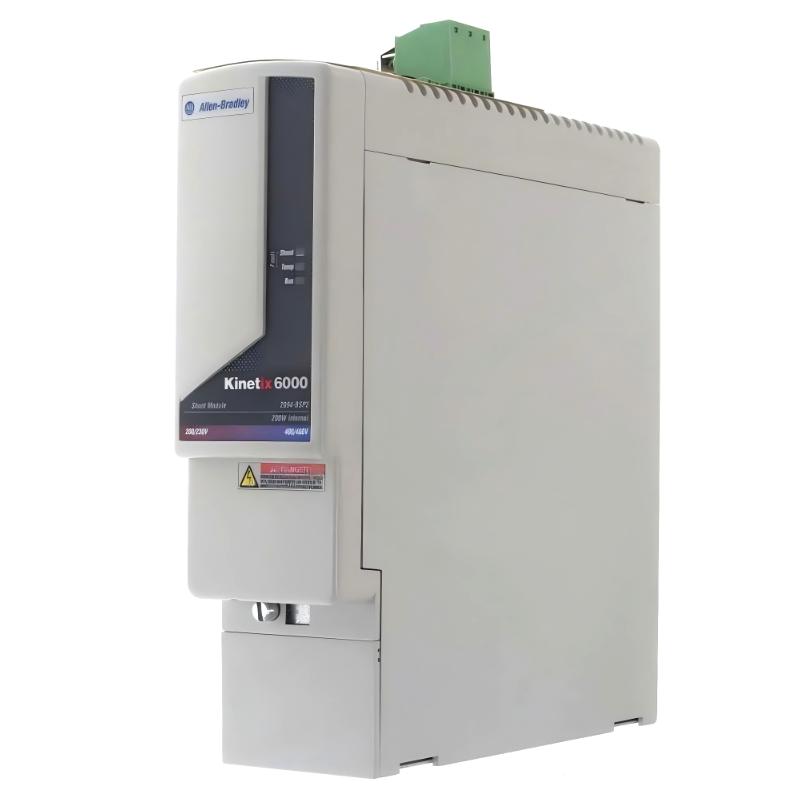

The Allen-Bradley 2094-BSP2 is a Kinetix 6000 shunt module designed to manage regenerative energy in multi-axis servo systems. When motors decelerate rapidly, they generate energy back into the DC bus; this module safely dissipates that energy to prevent overvoltage conditions.
Technical Specifications
Parameter
Specification
Product Model
2094-BSP2
Series
Kinetix 6000 / 6200 / 6500
Function
Shunt Module (Regenerative Energy Dissipation)
Shunt Capacity
200 W
Voltage Rating
230 / 460 VAC systems (DC bus operation)
Mounting Type
Kinetix 6000 power rail
Dimensions
287 × 70 × 249 mm
Weight
3.1 kg
Application
Multi-axis servo drive braking energy control
Recommended Related Models
Model
Product Name
2094-BL01
Kinetix 6000 Line Interface Module
2094-BC01-M01-S
Kinetix 6000 Power Rail Connector Module
2198-RP048
Kinetix 5700 Regenerative Power Module
2094-BM01-M
Kinetix 6000 Axis Module (Low Power Class)
Popular Related Models
Model
Product Name
2094-BM03-S
Kinetix 6000 High Power Axis Module
MPL-B330P-MJ72AA
MP-Series Servo Motor
2198-H025-ERS
Kinetix 5500 Servo Drive System
2090-CPBM7DF-16AA10
Servo Power & Brake Cable (10 m)
Applications
• Used in Kinetix 6000 / 6200 / 6500 multi-axis servo systems for regenerative energy management
• Applied in high-inertia motion systems such as CNC machines and heavy-duty industrial automation lines
• Suitable for robotics, packaging equipment, and rapid deceleration conveyor systems
• Installed in shared DC bus architectures where excess braking energy must be safely dissipated
• Supports system stability during frequent stop/start or high-speed deceleration cycles
Key Advantages
• Provides 200W shunt capacity to handle regenerative energy during motor braking
• Protects drive systems from DC bus overvoltage caused by high inertia loads
• Improves overall system reliability in demanding multi-axis motion environments
• Compatible with Kinetix 6000 power rail architecture for seamless integration
• Helps extend drive lifespan by reducing thermal and electrical stress on core components
Technical FAQs
1. What is the main function of the 2094-BSP2?
It is a shunt module that dissipates excess regenerative energy in a Kinetix 6000 system.
2. Where is it used?
It is used in Kinetix 6000, 6200, and 6500 multi-axis servo drive systems.
3. What happens if it is not installed?
The system may experience DC bus overvoltage faults during deceleration.
4. Does it control motion or motors directly?
No, it only handles regenerative energy dissipation.
5. Is it an active or passive device?
It is a passive braking energy module.
6. How much power can it dissipate?
It provides approximately 200W of shunt capacity.
7. Does it require programming or configuration?
No, it operates automatically within the drive system.
8. Can it be replaced with newer modules?
Yes, newer Kinetix platforms provide updated braking solutions.
9. Is it part of the main axis module?
No, it is a separate system-level accessory module.
10. What causes it to activate?
It activates when regenerative energy exceeds the DC bus absorption capacity.
