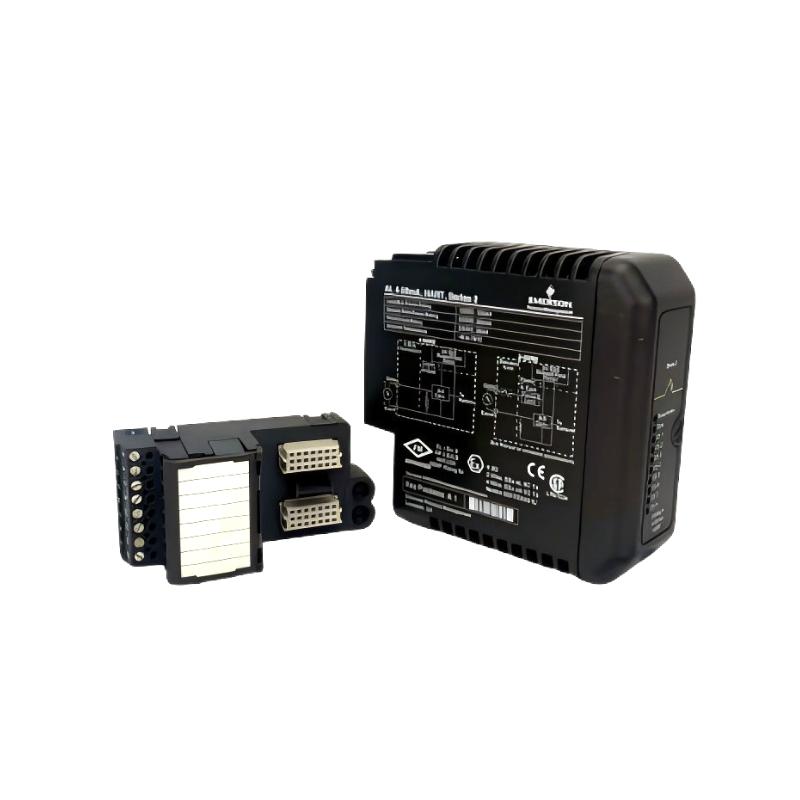

The Emerson VE4002S1T1B1 (KJ3001X1-BG1 + KJ4001X1-CB1) is a DeltaV Series 2 digital output module assembly designed for precise and reliable control of field actuators in industrial automation systems. It is widely used to drive solenoids, relays, motor starters, valve actuators, and alarm devices through stable ON/OFF output signals.

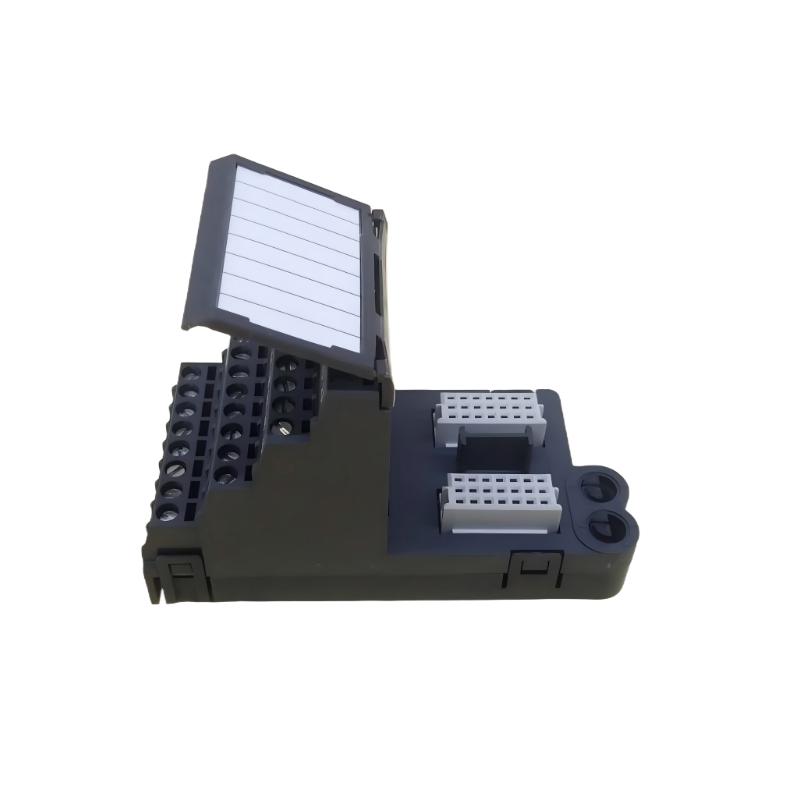

This configuration combines the KJ3001X1-BG1 output module with the KJ4001X1-CB1 termination block, enabling structured wiring, strong electrical isolation, and dependable signal delivery in demanding process environments such as oil & gas, power generation, and chemical processing plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4002S1T1B1 |
| Module Part Number | KJ3001X1-BG1 |
| Termination Block | KJ4001X1-CB1 |
| Product Type | Digital Output Module (DO) |
| System Platform | DeltaV Series 2 |
| Output Channels | 8 channels |
| Output Type | Digital ON/OFF output |
| Output Voltage | 24 V DC (typical industrial load control) |
| Load Capacity | Up to 1 A per channel (typical application range) |
| Isolation | Channel-to-system galvanic isolation |
| Output Function | Discrete actuator control |
| Diagnostics | Channel status and fault detection |
| Wiring Interface | Mass termination block (KJ4001X1-CB1) |
| Mounting Method | DeltaV I/O carrier mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Protection | Industrial-grade noise immunity |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 140 × 100 × 75 mm |
| Length × Width × Height | Standard DeltaV carrier-mounted form factor |
| Weight | Approx. 0.30–0.60 kg |
