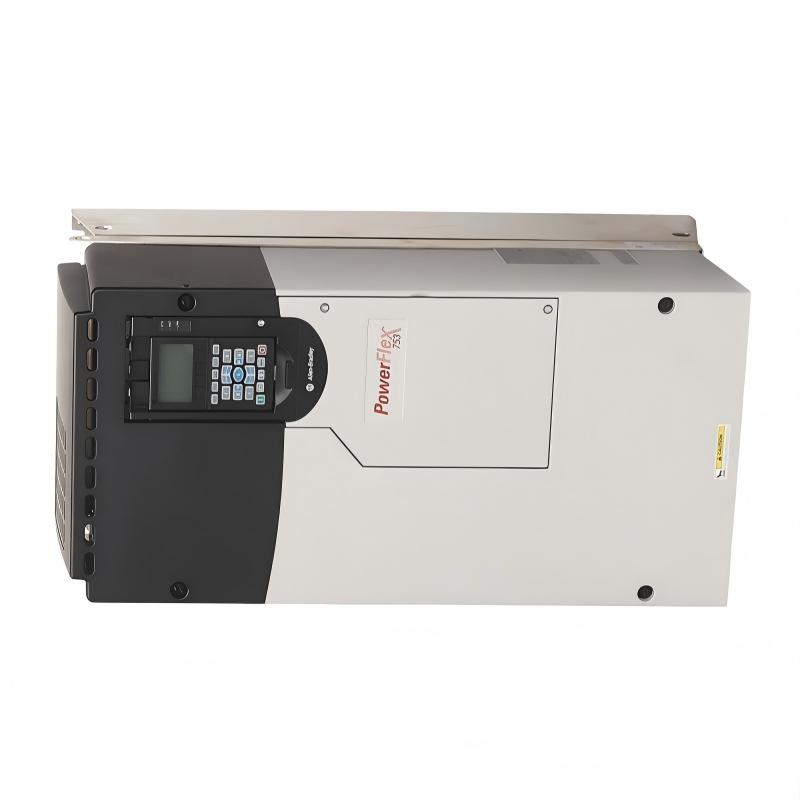

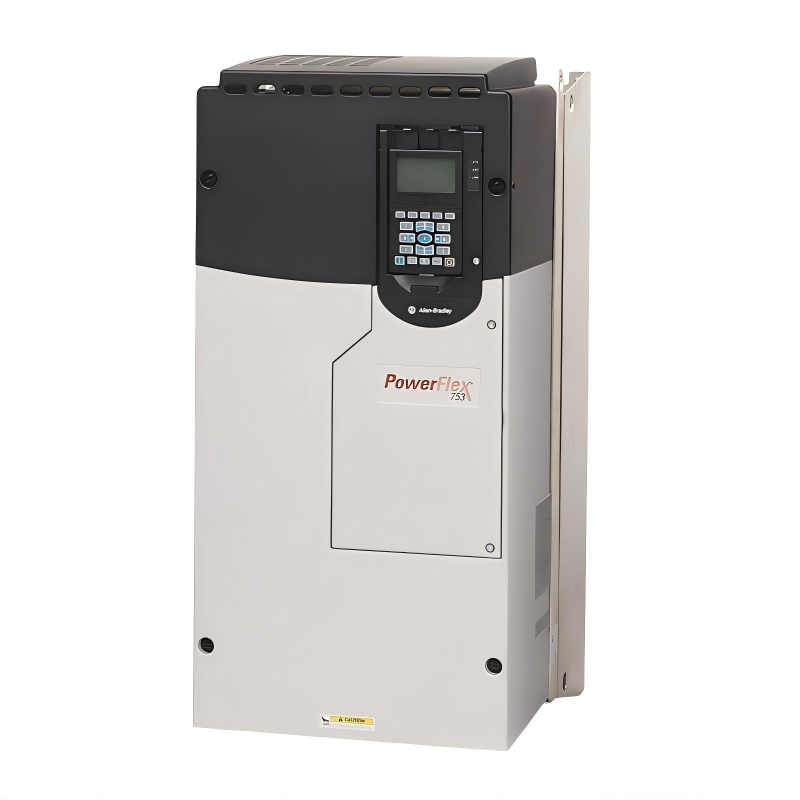

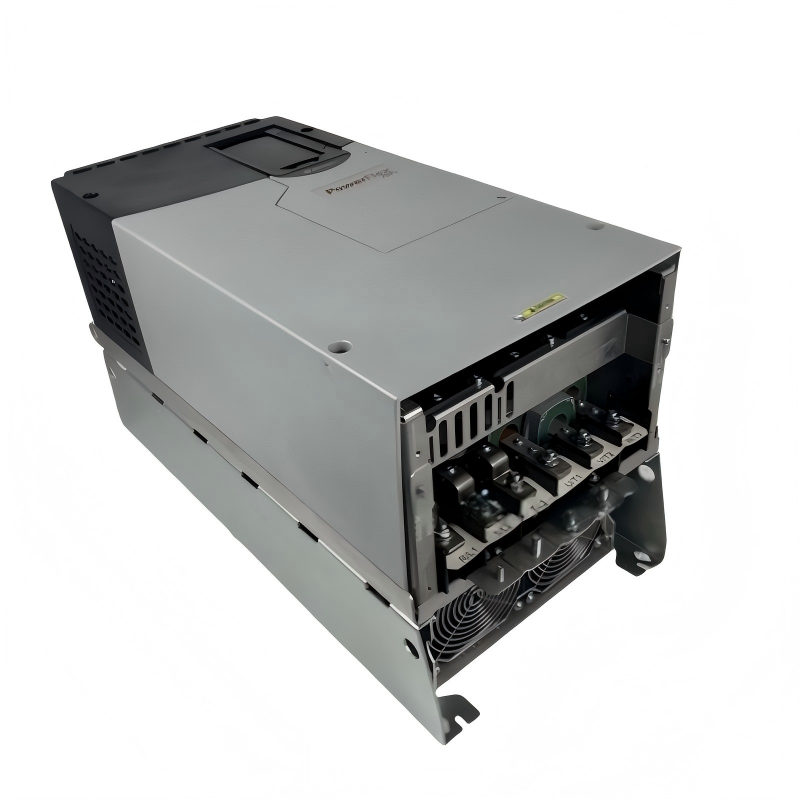

Allen Bradley 20F1AND186AN0NNNNN PowerFlex 753 AC drive
Allen Bradley 20F1AND186AN0NNNNN PowerFlex 753 AC drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F1AND186AN0NNNNN Product Origin:USA Product Dimensions:308 x 665.5 x 346.4 mm Product Weight:36.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley PowerFlex 753 AC Drive 20F1AND186AN0NNNNN is a high-performance variable frequency drive designed for precise motor control in industrial automation systems. It delivers stable torque, reliable speed regulation, and strong integration capabilities within Rockwell Automation architectures.
Although part of a discontinued series, it remains widely used in installed industrial bases due to its robustness and proven field performance. It is especially valued in applications requiring dependable motor control under fluctuating load conditions.
Technical Specifications
Specification
Details
Product Type
AC Variable Frequency Drive
Series
PowerFlex 753
Rated Current
186 A
Input Voltage
480 V AC, 3-phase
Power Rating
Up to 150 HP (ND) / 125 HP (HD)
Cooling Method
Air-cooled
Dimensions
308 × 665.5 × 346.4 mm
Weight
36.29 kg / 80.02 lb
Control Type
Variable Frequency Motor Control
Installation Type
Cabinet / Panel Mounted
Applications
The Allen-Bradley PowerFlex 753 AC Drive (20F1AND186AN0NNNNN) is designed for demanding industrial motor control applications requiring precise speed regulation, high torque performance, and reliable system integration. It is widely used in conveyor systems, pumps, fans, compressors, and heavy-duty production machinery across industries such as manufacturing, oil & gas, water treatment, mining, and material handling.
Its architecture supports integration into modern automation systems where consistent motor control, energy efficiency, and operational stability are essential.
Advantages
High-performance motor control: Optimized for both variable torque and constant torque applications
Industrial-grade reliability: Built for continuous operation in harsh environments
Flexible system integration: Compatible with Rockwell Automation control ecosystems
Energy-efficient operation: Helps reduce overall system power consumption
Advanced protection functions: Includes motor and drive protection mechanisms
Scalable architecture: Supports expansion through communication and control modules
Stable torque output: Ensures smooth operation under load variation
Maintenance-friendly design: Modular structure simplifies servicing and replacement
Technical FAQs
What is the rated current of this drive?
It is rated for approximately 186 A output current depending on configuration.
What voltage does it support?
It is designed for 480 V AC three-phase industrial power systems.
Is this drive suitable for heavy-duty applications?
Yes, it supports both normal duty and heavy-duty operation modes depending on setup.
Can it be integrated into PLC systems?
Yes, it integrates with Allen-Bradley PLC platforms via communication modules.
Does it support fieldbus communication?
Yes, it supports industrial communication modules for network integration.
What type of cooling does it use?
It uses air-cooled forced ventilation design for thermal management.
Is it suitable for variable torque loads?
Yes, it is commonly used in pump and fan applications.
Can it handle overload conditions?
Yes, it includes built-in overload protection depending on duty rating.
Is the drive still actively manufactured?
This series has been officially discontinued, with replacement models available.
What is the typical installation environment?
Industrial cabinet installation with controlled ventilation is recommended.
