Introduction

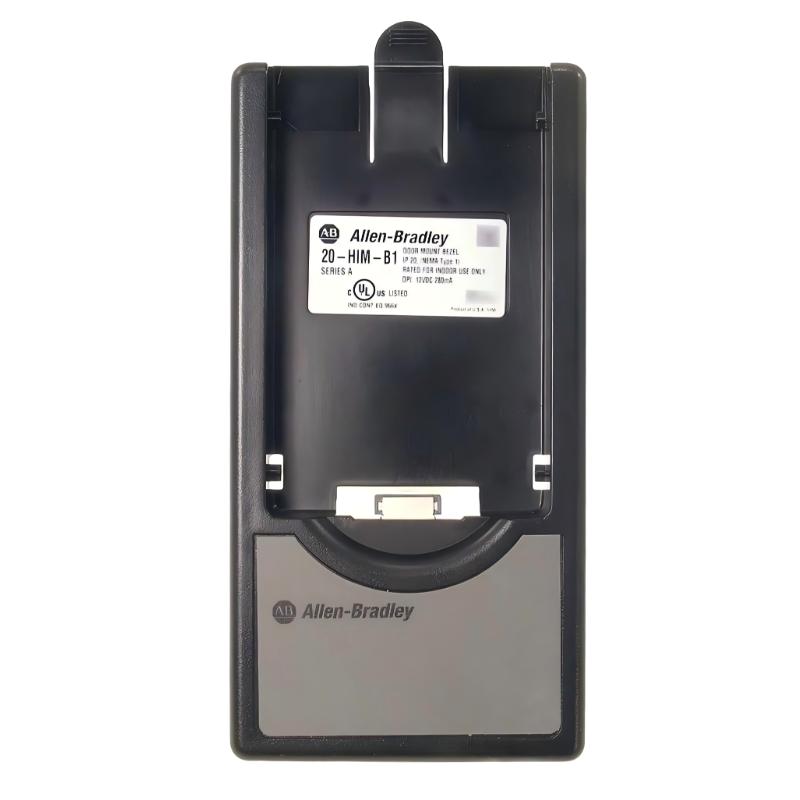

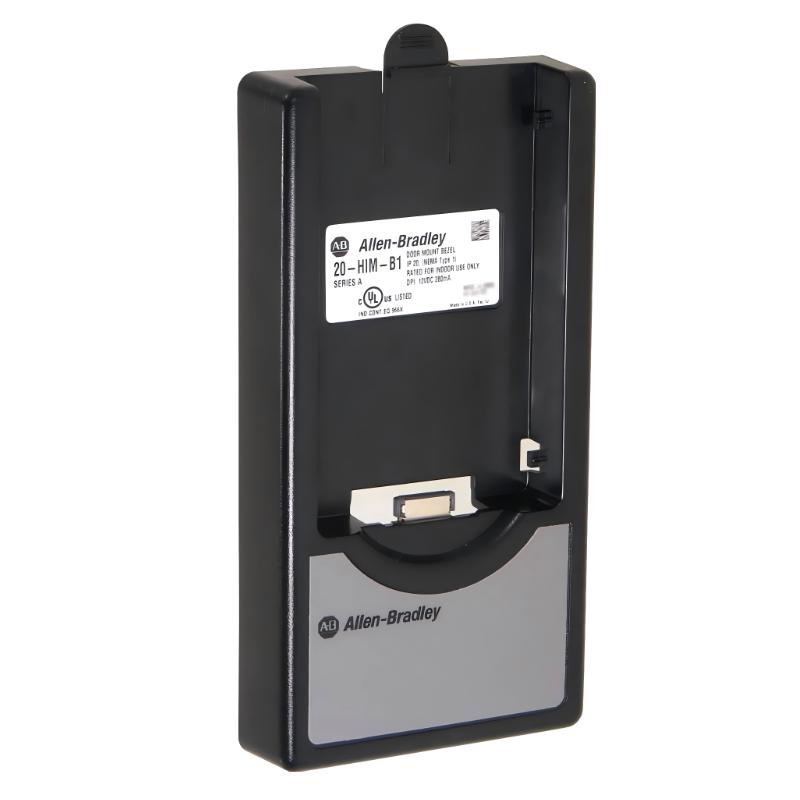

The Allen-Bradley 20-HIM-B1 PowerFlex Human-Machine Interface Module provides a simple and efficient way to interact with industrial drive systems. It allows operators to access key drive information and perform basic configuration tasks directly at the control panel.

Its compact design and industrial construction make it suitable for use in a wide range of automation environments where reliable local access to drive information is required.

Technical Specifications

Specification	Details
Product Type	Human-Machine Interface Module
Function	Drive monitoring and parameter access
Dimensions	191.1 × 25.2 × 93 mm
Weight	0.11 kg / 0.24 lb
Installation Type	Panel-mounted module
Power Supply	Powered by connected drive
Operating Environment	Industrial control panel use
Construction	Industrial-grade electronic module

Applications

The Allen-Bradley 20-HIM-B1 Human-Machine Interface Module is designed for configuration, monitoring, and basic operation of industrial drive systems. It is used in motor control environments where operators need local access to drive status and parameter settings.

Typical applications include industrial automation panels, motor control centers, conveyor systems, pumping stations, and general-purpose drive monitoring environments.

Advantages

Compact interface for drive interaction
Simplified local operation and monitoring
Provides basic access to drive parameters
Lightweight and easy to install in control panels
Supports maintenance and troubleshooting tasks
Industrial design suitable for panel environments
Clear and simple user interaction interface

Technical FAQs

What is the main function of this module?
It provides a local interface for monitoring and configuring drive parameters.
Is it used for programming drives?
It is used for parameter access and basic configuration functions.
Does it operate independently?
No, it operates when connected to a compatible drive system.
Is it suitable for industrial environments?
Yes, it is designed for use in industrial control panels.
Does it require external power?
It is powered through the connected drive system.
Can it display drive status?
Yes, it provides basic status and parameter display.
Is it portable?
Yes, it is compact and lightweight for easy handling.
Does it support real-time monitoring?
It supports basic real-time drive information display.
Is installation complex?
No, installation is straightforward in standard control panels.
Does it require maintenance?
It requires minimal maintenance under normal operating conditions.
