Brand:Emerson Module Item No.:KL3002X1-LS1 Product Origin:USA Product Dimensions:150 x 100 x 50 mm Product Weight:1.02 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

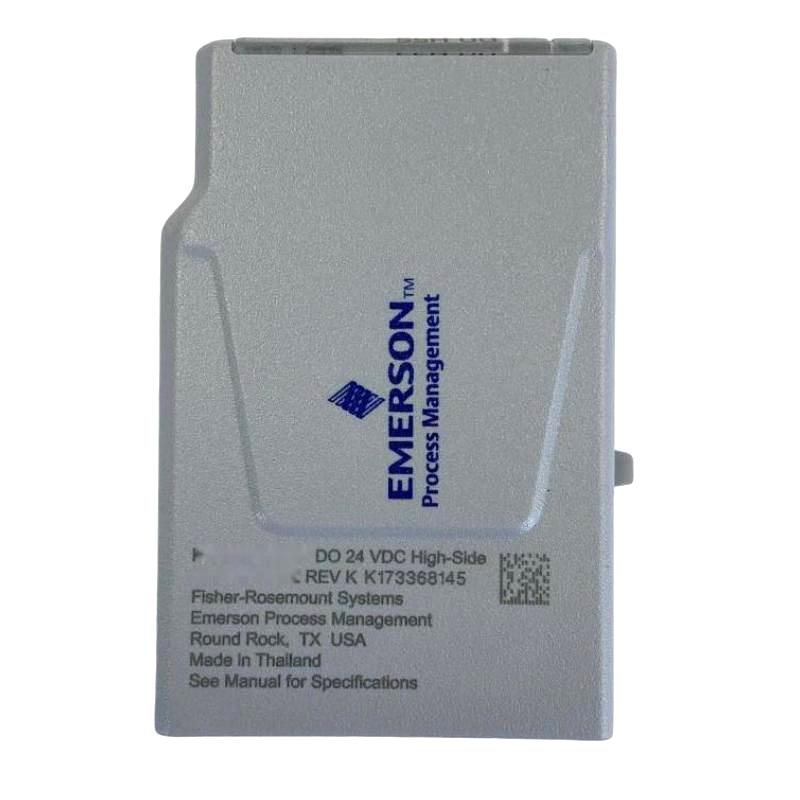

The Emerson KL3002X1-LS1 High-side Discrete Output Module is part of the DeltaV CHARM-based I/O architecture, designed for reliable switching of field devices in industrial automation systems. It converts control system commands into physical 24 VDC output signals that drive actuators, relays, and other discrete equipment.
Technical Specifications
Parameter
Specification
Product Model
KL3002X1-LS1
Manufacturer
Emerson
Series
DeltaV CHARM
Product Type
High-side Discrete Output Module
Output Type
24 VDC Digital Output
Function
Field device switching and control
Application
Industrial automation and process control
Dimensions
150 × 100 × 50 mm
Weight
1.02 kg
Recommended Related Models
Model
Product Name
KL3002X1-BA1
DeltaV High-side Digital Output Module
KL3003X1-LS1
Low-side Digital Input Module
VE4003S2B1
DeltaV Analog Input Module
VE4033S2B1
DeltaV Analog Output Module
Popular Related Models
Model
Product Name
KJ3222X1-BA1
DeltaV Analog Input Module
KJ4010X1-BG1
DeltaV Communication Module
VE3008
DeltaV Controller Module
KJ2003X1-BA1
DeltaV Network Interface Module
Applications
• Used in Emerson DeltaV distributed control systems (DCS) for switching and controlling discrete field devices.
• Applied in oil & gas facilities, chemical plants, refineries, and power generation systems for actuator and solenoid control.
• Suitable for industrial automation environments requiring reliable 24 VDC digital output switching.
• Integrated into control cabinets for driving relays, valves, motor starters, and indicator lamps.
• Supports critical process control applications where stable and safe switching performance is required.
Key Advantages
• Provides reliable high-side switching for industrial discrete output control.
• Ensures safe operation by switching the positive voltage side of the load.
• Designed for seamless integration within Emerson DeltaV CHARM architecture.
• Supports stable operation in harsh industrial environments with electrical noise and vibration.
• Enhances system reliability through consistent output performance and robust signal isolation.
Technical FAQs
1. What is the main function of the KL3002X1-LS1 module?
It provides high-side discrete output control for switching field devices in automation systems.
2. Which system is it designed for?
It is designed for Emerson DeltaV distributed control systems (DCS).
3. What type of output does it provide?
It provides 24 VDC high-side digital output switching.
4. What devices can it control?
It can control solenoids, relays, valves, motor starters, and indicator lights.
5. What does high-side switching mean?
It means the module switches the positive supply voltage to the load while the return is common ground.
6. Is it suitable for industrial environments?
Yes, it is designed for harsh industrial automation conditions.
7. Does it perform control logic?
No, it only executes output switching commands from the control system.
8. Can it be hot-swapped?
In many DeltaV configurations, CHARM modules support replacement at system level depending on installation conditions.
9. What happens if a channel fails?
The affected output point will no longer actuate its connected field device.
10. Why is high-side output preferred in industry?
It provides safer failure behavior and better protection against ground faults.
