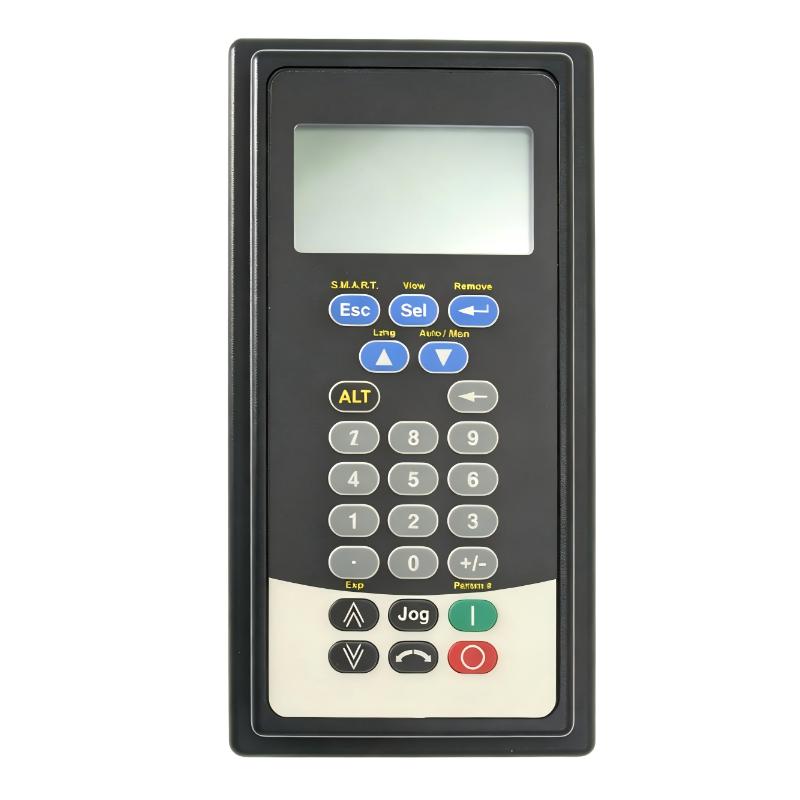

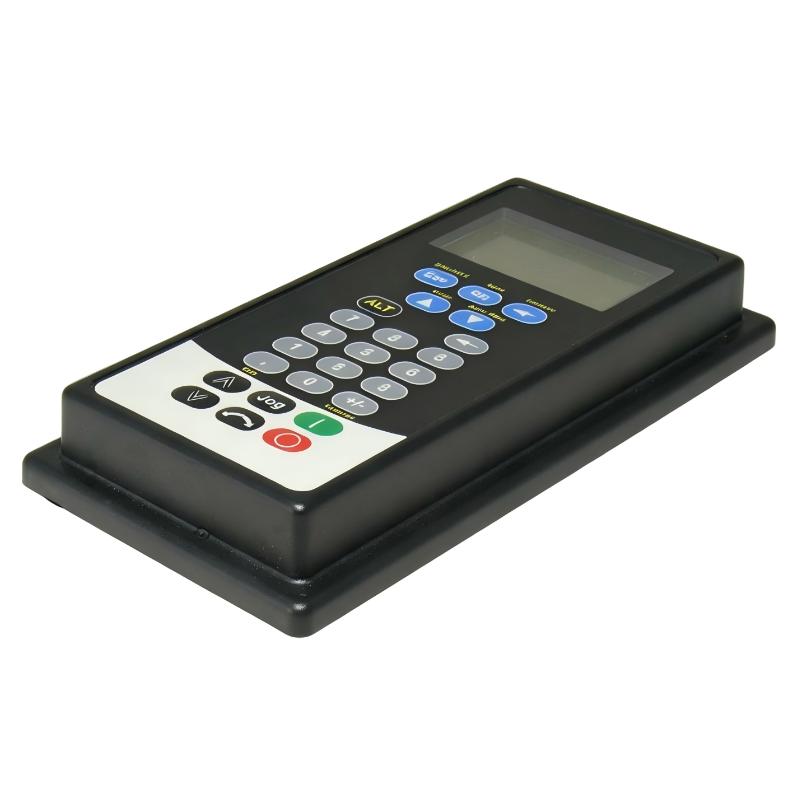

Allen Bradley 20-HIM-C3S PowerFlex Human-Machine Interface Module

Applications

The Allen-Bradley 20-HIM-C3S Human-Machine Interface Module is designed for local monitoring and basic configuration of industrial drive systems. It is typically used in control panels where operators need direct access to drive status, parameters, and basic operational feedback.

Common applications include motor control centers, industrial automation panels, pumping systems, conveyor controls, and general motor-driven equipment monitoring.

Advantages

• Compact and lightweight for easy panel installation
• Provides local access to drive parameters and status
• Simplifies monitoring and basic operational tasks
• Industrial-grade construction suitable for control panels
• Supports maintenance and troubleshooting workflows
• Clear, easy-to-read interface for operators
• Minimal footprint, conserving control panel space

Technical FAQs

1. What is the main purpose of this module?
   To provide a local interface for monitoring and basic configuration of connected drives.
2. Does it work independently?
   No, it requires connection to a compatible drive to function.
3. Is it portable?
   Yes, it is compact and lightweight for easy handling.
4. Can it display real-time drive information?
   Yes, it provides basic real-time parameter and status information.
5. Does it require external power?
   No, it draws power from the connected drive.
6. Is it suitable for industrial environments?
   Yes, designed for installation in industrial control panels.
7. Does it allow parameter adjustment?
   Yes, it allows basic parameter access and adjustment.
8. Is installation complicated?
   No, it is straightforward to install in standard panels.
9. Does it provide diagnostics?
   Yes, it can display drive fault or warning indicators.
10. Is maintenance required?
    Minimal maintenance is needed under normal operating conditions.
