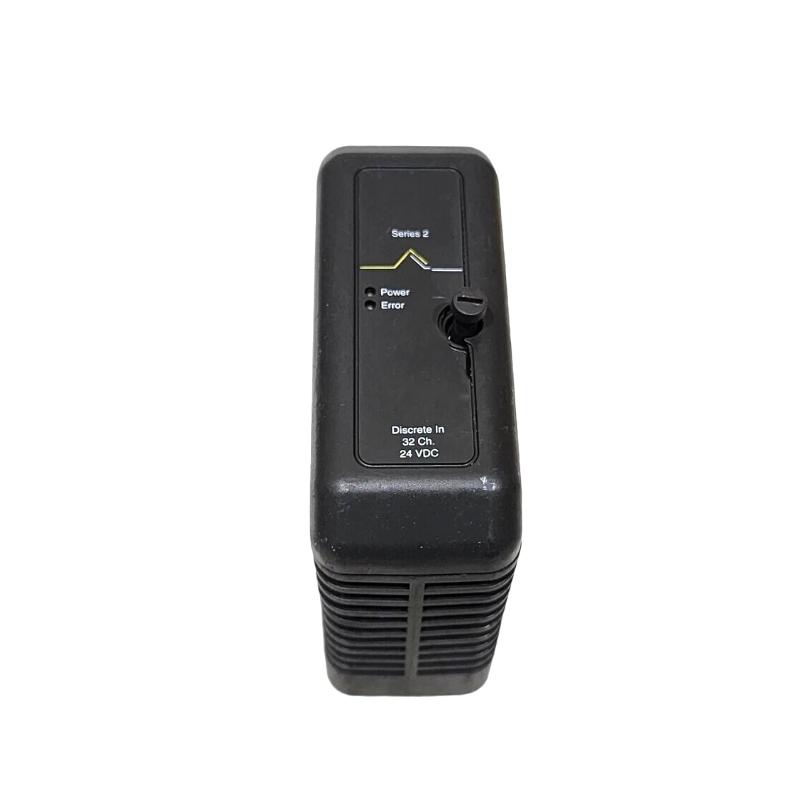

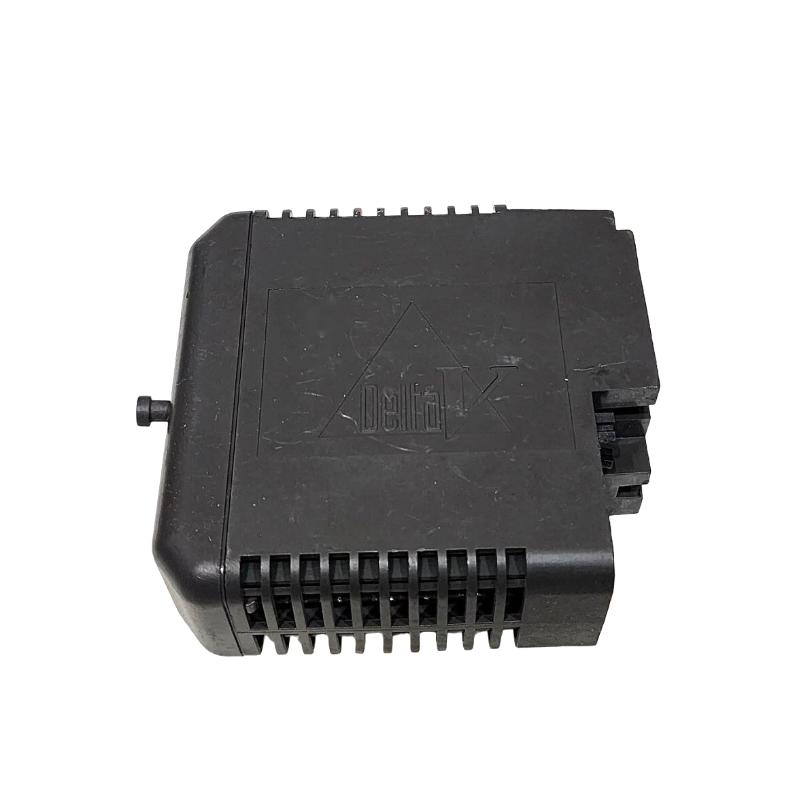

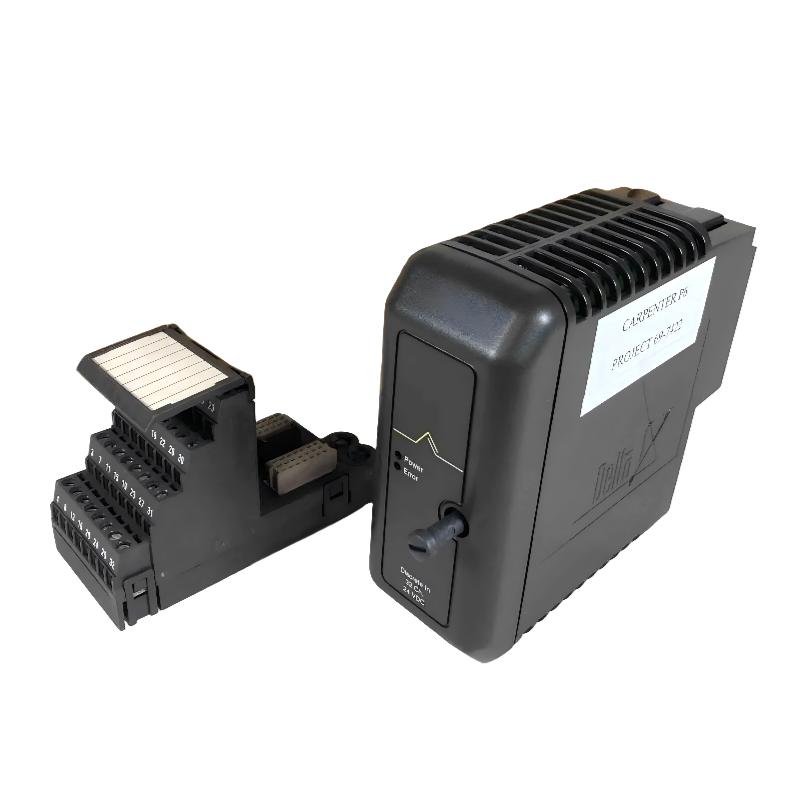

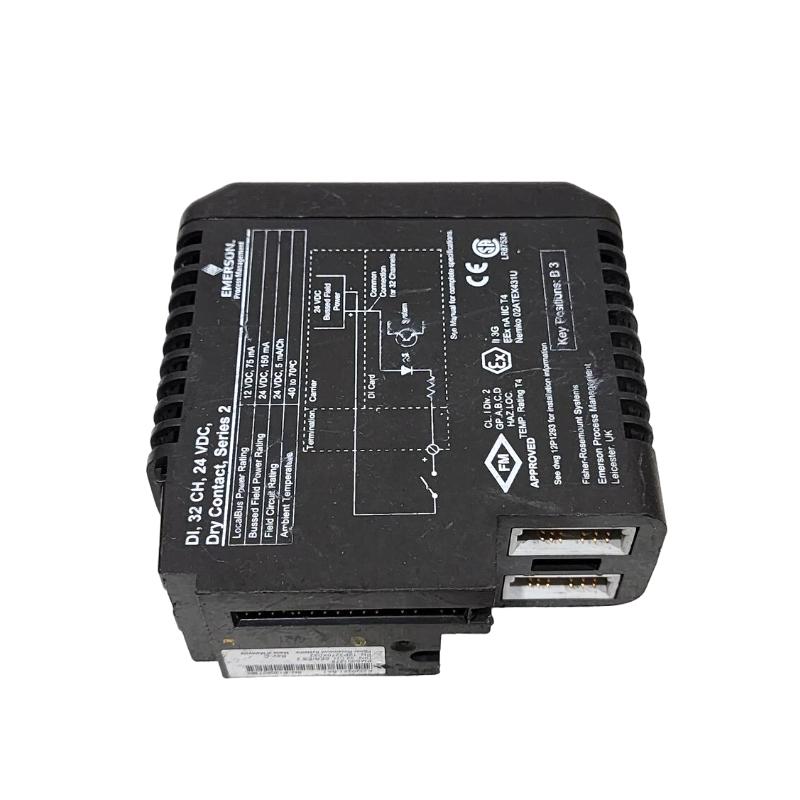

The Emerson VE4002S2T1 is a DeltaV Series 2 discrete input module designed for stable and accurate acquisition of digital field signals in industrial automation systems. It is typically used to monitor ON/OFF status signals from switches, relay contacts, limit switches, motor starters, alarm circuits, and safety interlock devices.
Built for demanding process environments, this module emphasizes signal stability, electrical isolation, and long-term operational reliability, making it suitable for continuous monitoring applications in critical industries such as oil & gas, chemical processing, and power generation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4002S2T1 |
| Product Type | Discrete Input Module (DI) |
| System Platform | DeltaV Series 2 I/O |
| Input Channels | 8 channels |
| Input Type | 24 V DC digital input |
| Signal Type | Dry contact / powered status signals |
| Input Voltage Range | 19.2–28.8 V DC |
| Response Time | ≤ 1 ms (typical) |
| Isolation | Channel-to-system galvanic isolation |
| Diagnostics | Channel status monitoring and fault detection |
| Wiring Interface | DeltaV termination system |
| Mounting Method | DeltaV I/O carrier mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Protection | Industrial-grade noise immunity |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 105 × 125 × 42 mm |
| Length × Width × Height | Compact DeltaV standard module form factor |
| Weight | Approx. 0.30–0.55 kg |
