Introduction

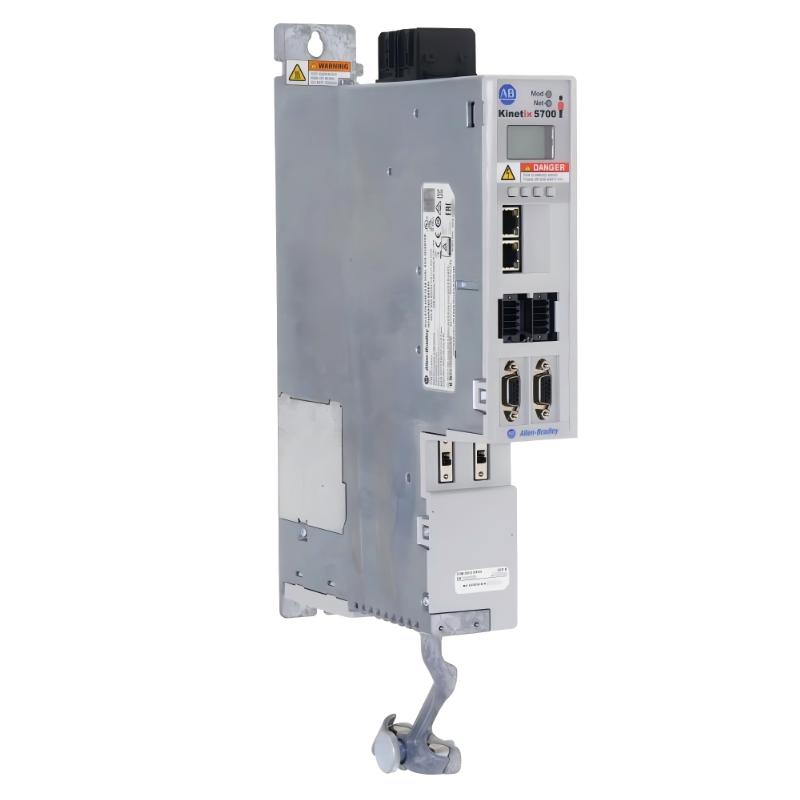

The Allen-Bradley 2198-D012-ERS3 Kinetix 5700 Dual-Axis Servo Drive is a compact, high-performance motion control module designed for industrial automation systems. Its dual-axis architecture enables efficient space utilization while maintaining precise and reliable servo control for complex motion applications.

It is widely used in modern manufacturing environments where synchronized motion, system efficiency, and stable operation are required.

Technical Specifications

Specification	Details
Product Type	Dual-Axis Servo Drive
Series	Kinetix 5700
Axes Supported	2
Communication	Industrial Ethernet-based control
Dimensions	451 × 55 × 267.5 mm
Weight	4.16 kg / 9.17 lb
Installation Type	Panel-mounted drive module
Application	Multi-axis motion control systems
Operating Environment	Industrial automation systems
Construction	Industrial-grade electronic drive module

Applications

The Allen-Bradley 2198-D012-ERS3 Kinetix 5700 Dual-Axis Servo Drive is designed for high-performance motion control applications in industrial automation systems. It is used to control dual-axis servo motors in synchronized or independent motion tasks where precision, speed, and coordinated control are required.

Typical applications include packaging machinery, material handling systems, printing equipment, assembly automation, and multi-axis robotics systems.

Advantages

Dual-axis design reduces cabinet space requirements
High-performance motion control for industrial automation systems
Supports precise synchronized or independent axis operation
Compact form factor for multi-axis system integration
Designed for stable operation in industrial environments
Integrated safety functionality (depending on system configuration)
Supports Ethernet-based industrial communication architecture
Suitable for complex multi-axis motion control systems

Technical FAQs

What is the main function of this module?
It is a dual-axis servo drive used to control industrial servo motors.
How many axes does it support?
It supports two servo axes within a single module.
Is it suitable for high-precision motion control?
Yes, it is designed for high-performance industrial motion applications.
What type of systems is it used in?
It is used in automated machinery requiring synchronized multi-axis motion.
Does it operate independently?
No, it operates as part of a motion control system.
Is it suitable for industrial environments?
Yes, it is designed for installation in industrial control cabinets.
Can it support continuous operation?
Yes, it is designed for continuous industrial duty cycles.
What is its physical configuration?
It is a compact dual-axis module designed for panel mounting.
Is it used in robotics applications?
Yes, it is commonly used in robotic and automated motion systems.
Does it support network-based control?
Yes, it is designed for integration into industrial Ethernet-based motion systems.
