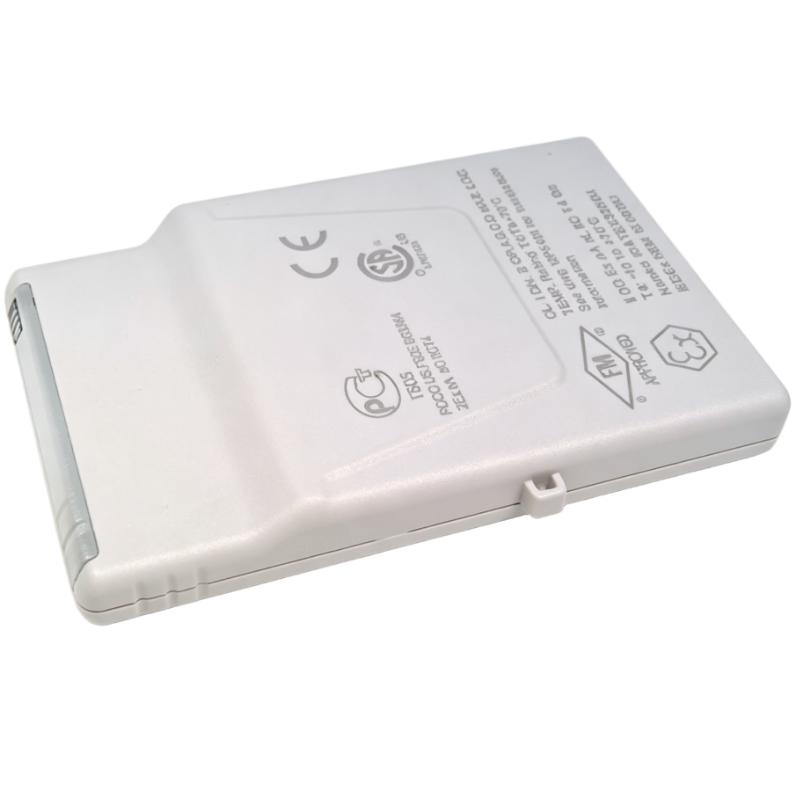

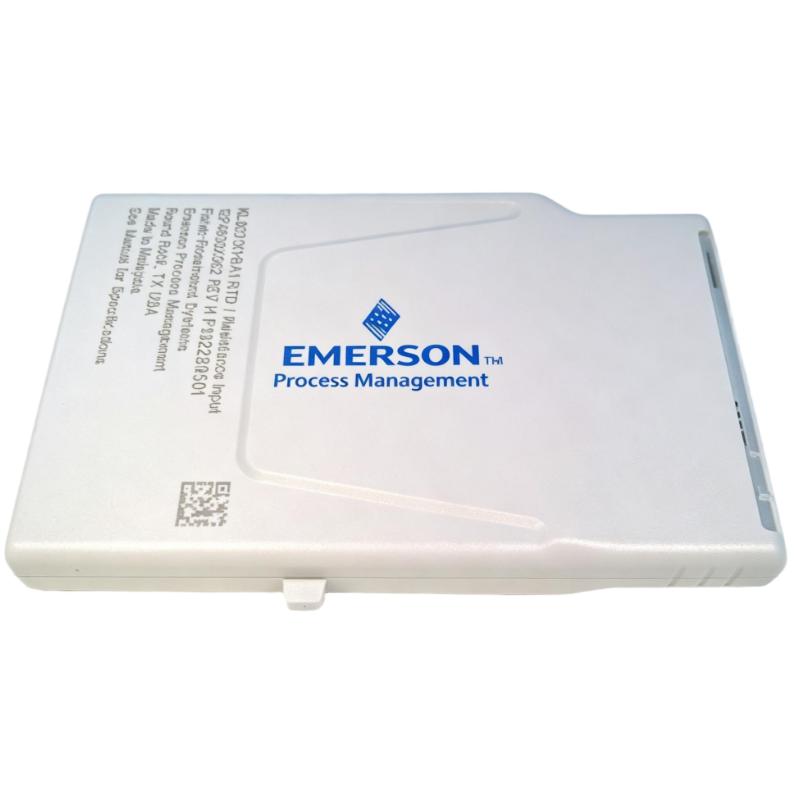

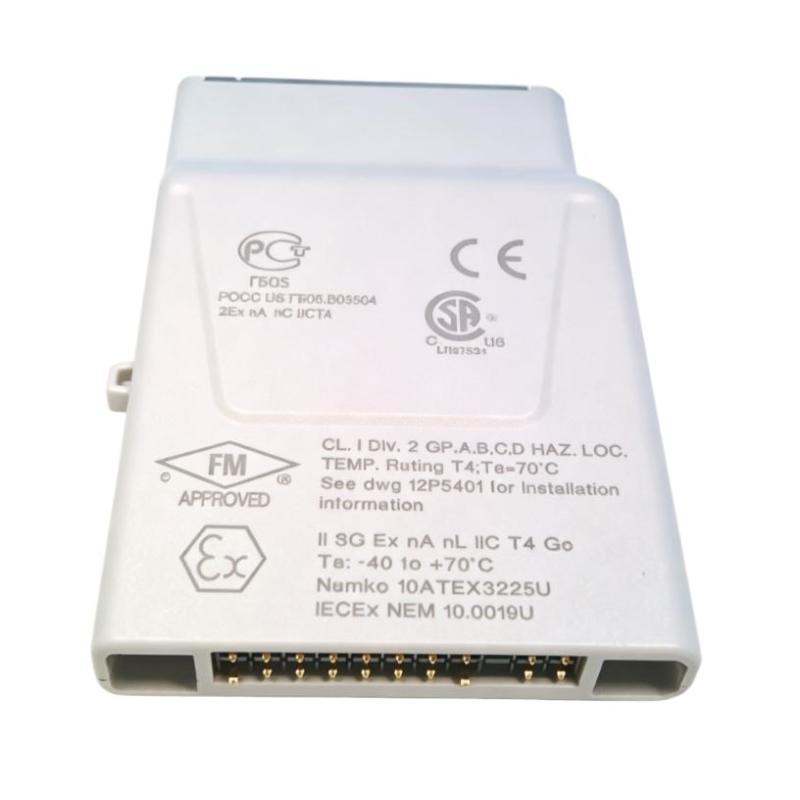

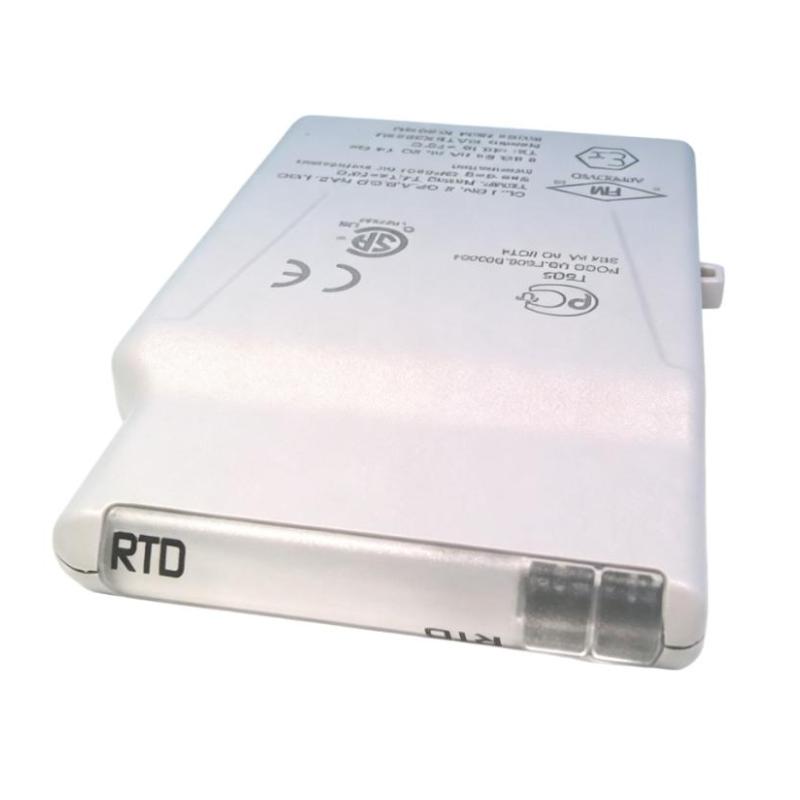

Emerson KL3031X1-BA1 RTD/Resistor Input CHARM Module

Applications

• Used in Emerson DeltaV Electronic Marshalling systems for precise temperature measurement using RTD sensors and resistance inputs.

• Applied in oil & gas plants, refineries, chemical processing units, and power generation facilities for process temperature monitoring.

• Suitable for industrial automation systems requiring accurate Pt100, Pt1000, Ni, and resistance-based signal acquisition.

• Integrated into control cabinets for direct field connection of temperature sensors without external signal conditioning.

• Supports critical process control environments where reliable thermal measurement is essential for safe operation.

Key Advantages

• Provides high-accuracy RTD and resistance signal acquisition for stable process control performance.

• Supports multiple RTD sensor types including Pt100, Pt1000, Ni100, and copper resistance elements.

• CHARM architecture enables flexible, distributed I/O installation without traditional marshalling cabinets.

• Built-in diagnostics help detect open circuits and sensor faults for improved maintenance efficiency.

• Designed for robust operation in harsh industrial environments with strong noise immunity.

Technical FAQs

1. What is the main function of this module?
It measures temperature using RTD sensors and resistance-based inputs and converts them into digital signals for the DeltaV system.

2. What system is it used with?
It is designed for Emerson DeltaV distributed control systems using CHARM architecture.

3. What types of sensors are supported?
It supports Pt100, Pt1000, Ni100, Cu100, and general resistance sensors.

4. Does it support resistance measurement only?
No, it supports both RTD temperature measurement and general resistance input.

5. Does it require external signal conditioning?
No, signal conditioning is built into the CHARM module.

6. How is it installed?
It is mounted on a CHARM base with terminal blocks in DeltaV electronic marshalling systems.

7. Does it support hot swapping?
Yes, CHARM modules can typically be replaced without disturbing other channels in non-hazardous areas.

8. Does it perform control logic?
No, it only acquires and converts sensor signals for the control system.

9. What happens if the sensor circuit fails?
The system can detect open circuits or abnormal resistance values through diagnostics.

10. Why is RTD input important in process control?
Accurate temperature measurement is critical for stable process operation and safety control.
