Introduction

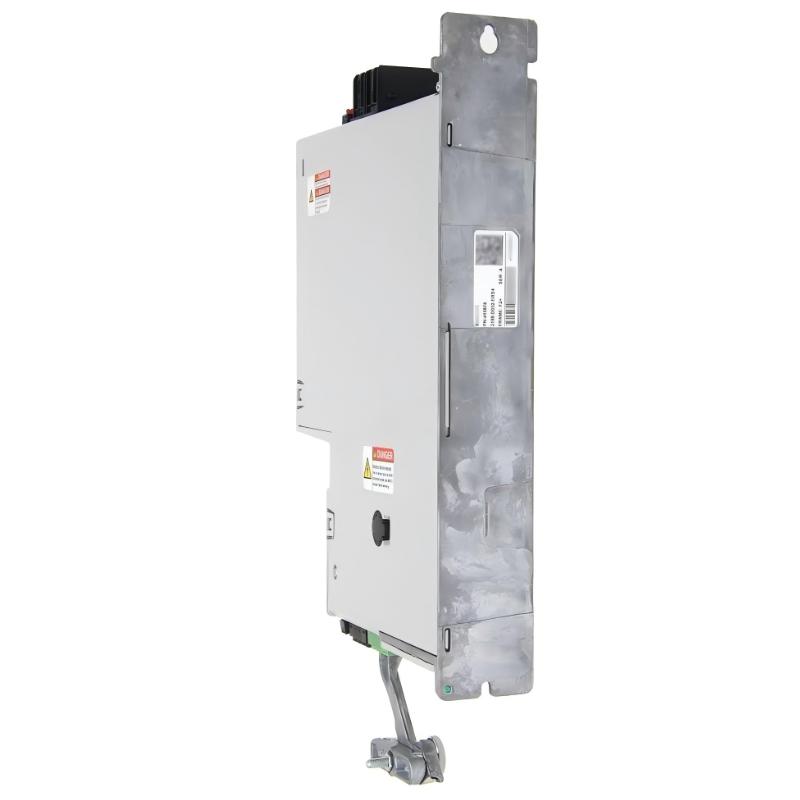

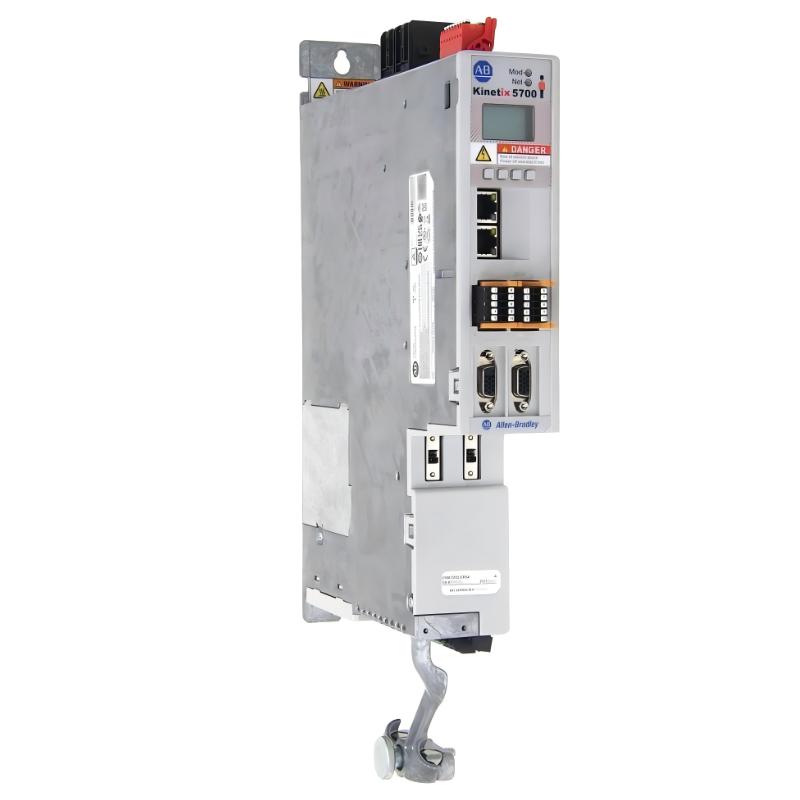

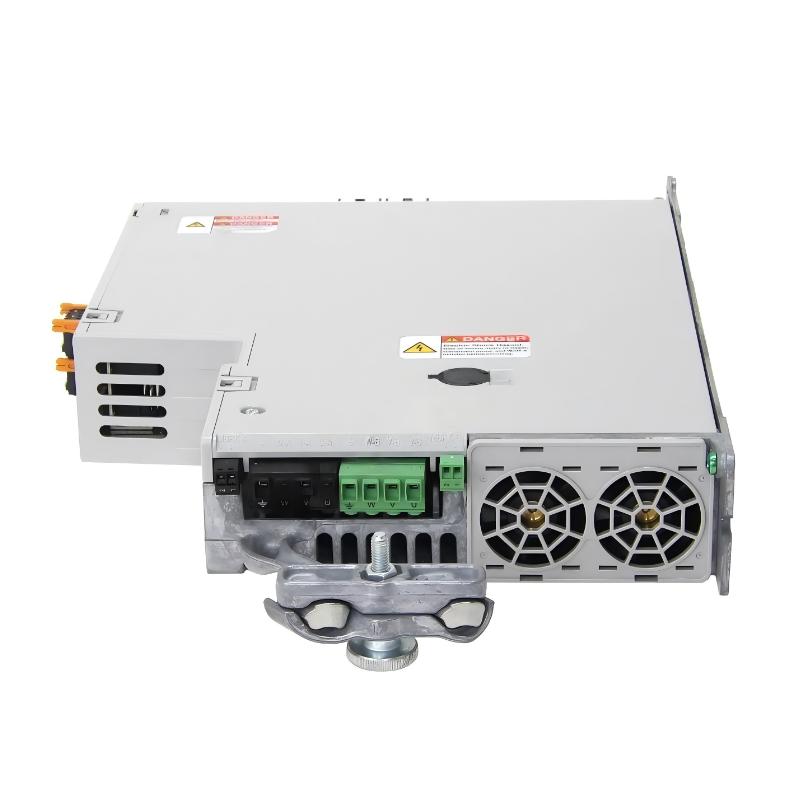

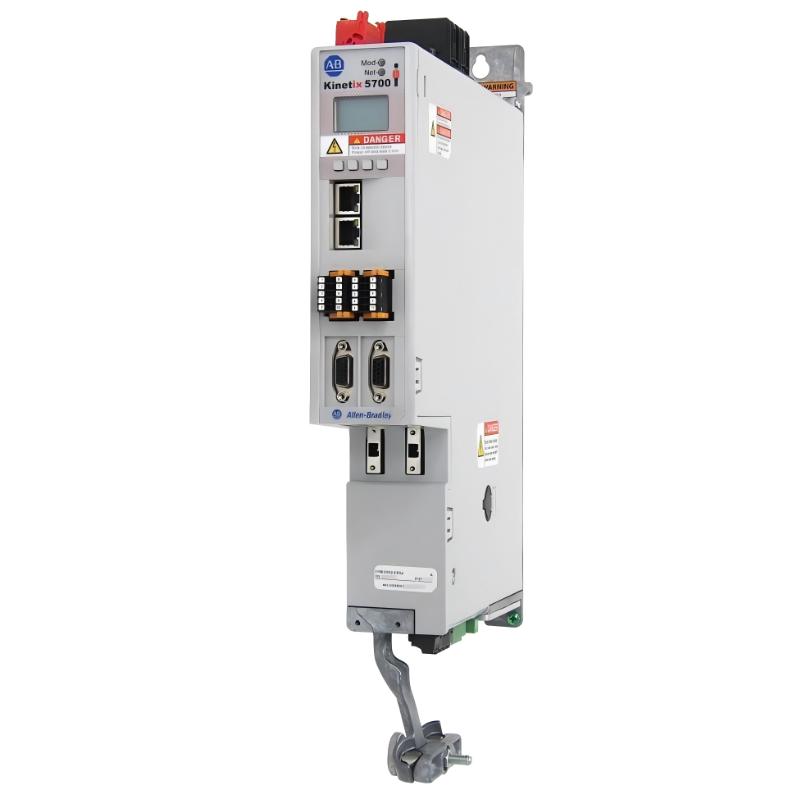

The Allen-Bradley 2198-D032-ERS4 Kinetix 5700 Dual-Axis Safe Speed Drive delivers high-performance motion control with integrated safety-oriented speed management. Its dual-axis architecture allows efficient space utilization while maintaining precise control in complex automation systems.

This drive is widely used in advanced industrial environments where synchronized motion, operational safety, and system efficiency are essential for production performance.

Technical Specifications

Specification	Details
Product Type	Dual-Axis Servo Drive
Series	Kinetix 5700
Function	Motion control with safe speed capability
Axes Supported	2
Communication	Industrial Ethernet-based control
Dimensions	451 × 55 × 267.5 mm
Weight	4.16 kg / 9.17 lb
Installation Type	Panel-mounted drive module
Application	Industrial motion control systems
Operating Environment	Industrial automation cabinets

Applications

The Allen-Bradley Kinetix 5700 2198-D032-ERS4 Dual-Axis Safe Speed Drive is designed for high-performance industrial motion control systems requiring coordinated multi-axis operation with integrated safety functionality.

It is commonly used in automated production lines, packaging machinery, robotics systems, material handling equipment, and precision manufacturing applications where controlled speed regulation and safety monitoring are required.

Advantages

Dual-axis integrated design for reduced cabinet space
High-performance motion control for synchronized industrial applications
Built-in safety-oriented speed control capability
Supports stable multi-axis coordination in automation systems
Designed for industrial network-based motion architectures
Efficient system integration within servo control environments
Suitable for continuous-duty industrial operation
Compact structure for high-density drive installations

Technical FAQs

What is the main function of this drive?
It is a dual-axis servo drive used for coordinated motion and speed control.
What does “Safe Speed” refer to?
It refers to integrated safety-related speed monitoring functions within the drive system.
How many axes does it control?
It controls two servo axes within a single module.
Is it suitable for synchronized motion systems?
Yes, it is designed for multi-axis synchronization in industrial automation.
Does it require external motion controllers?
It operates as part of a larger Kinetix motion control system.
Is it used in robotics applications?
Yes, it is commonly used in robotic and automated machinery systems.
Can it operate continuously?
Yes, it is designed for continuous industrial duty cycles.
What type of installation is required?
It is installed in industrial control cabinets.
Does it support industrial network communication?
Yes, it integrates into EtherNet/IP-based motion systems.
Is it suitable for high-speed production lines?
Yes, it is designed for high-speed, high-precision automation environments.
