Brand:Emerson Module Item No.:KL4210X1-BA1 Product Origin:USA Product Dimensions:32 x 114 x 156 mm Product Weight:0.43 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

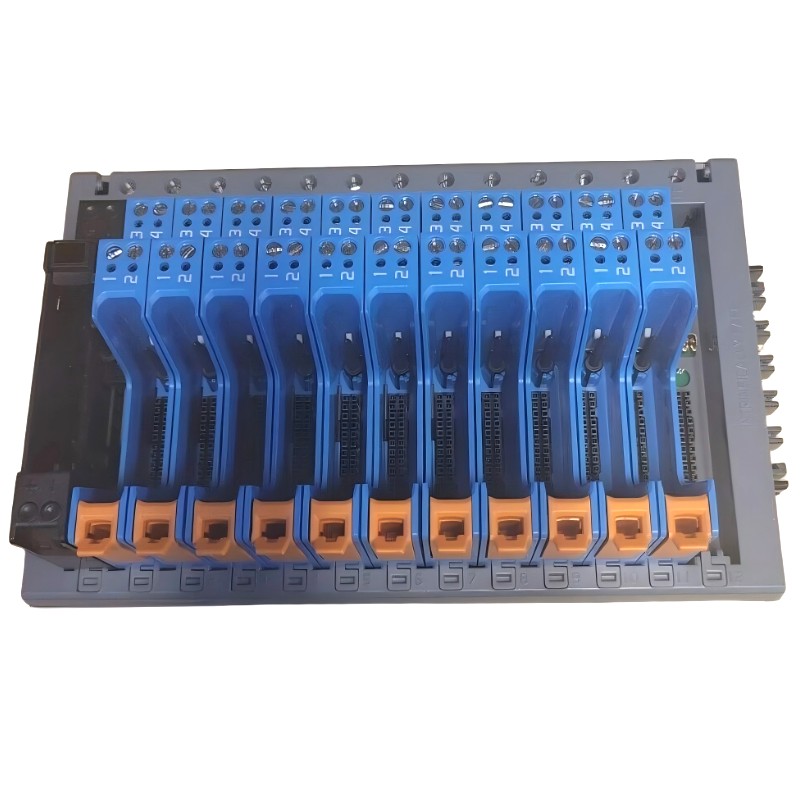

The Emerson KL4210X1-BA1 IS CHARM Base Plate is a fundamental component of the DeltaV Electronic Marshalling system, designed to host and power CHARM I/O modules in industrial automation environments. It serves as the structural and electrical foundation that enables flexible, distributed I/O configuration.
Technical Specifications
Parameter
Specification
Product Model
KL4210X1-BA1
Manufacturer
Emerson
Series
DeltaV CHARM
Product Type
IS CHARM Base Plate
Function
Mechanical mounting & power distribution
System Compatibility
DeltaV Electronic Marshalling
Power Supply
CHARM bus + field circuit power
Dimensions
32 × 114 × 156 mm
Weight
0.43 kg
Recommended Related Models
Model
Product Name
KL3002X1-LS1
High-side Discrete Output Module
KL3005X1-LS1
Isolated Digital Input Module
KL3031X1-BA1
RTD/Resistance Input Module
VE4003S2B1
Analog Input Module
Popular Related Models
Model
Product Name
KJ3222X1-BA1
DeltaV Analog Input Module
KJ4010X1-BG1
Communication Interface Module
VE3008
DeltaV Controller Module
VE4033S2B1
Analog Output Module
Applications
• Used in Emerson DeltaV Electronic Marshalling systems as a mounting and power interface for CHARM I/O modules.
• Applied in oil & gas facilities, refineries, chemical plants, and power generation stations for distributed control system (DCS) architecture.
• Suitable for hazardous area installations where intrinsically safe (I.S.) signal handling is required.
• Integrated into control cabinets to support flexible CHARM-based I/O configuration and field wiring organization.
• Supports modern automation systems that require modular, scalable I/O expansion with high reliability.
Key Advantages
• Provides secure mechanical mounting and electrical interface for CHARM I/O modules.
• Supports both CHARM bus power and field circuit power for stable system operation.
• Designed for intrinsically safe and industrial hazardous environments (Zone 2 capable).
• Enhances system flexibility by enabling modular, distributed I/O architecture.
• Built for high reliability with strong resistance to vibration, temperature variation, and contamination.
Technical FAQs
1. What is the main function of the KL4210X1-BA1 base plate?
It provides mounting, power distribution, and connection support for CHARM I/O modules in DeltaV systems.
2. Which system is it used with?
It is used with Emerson DeltaV Electronic Marshalling (CHARM) systems.
3. Is it suitable for hazardous areas?
Yes, it is designed for intrinsically safe applications and hazardous environments.
4. Does it supply power to modules?
Yes, it supplies CHARM bus power and field circuit power to connected modules.
5. Can it be used in standard industrial control panels?
Yes, it is commonly installed in control cabinets for DCS applications.
6. Does it perform signal processing?
No, it only provides infrastructure for CHARM I/O modules.
7. Is calibration required?
No, it does not require calibration.
8. Can modules be replaced easily?
Yes, CHARM architecture allows modular replacement depending on system design.
9. What industries use this base plate?
Oil & gas, petrochemical, chemical processing, and power generation.
10. Why is it important in DeltaV systems?
It enables flexible and scalable distributed I/O architecture for modern automation systems.
