Introduction

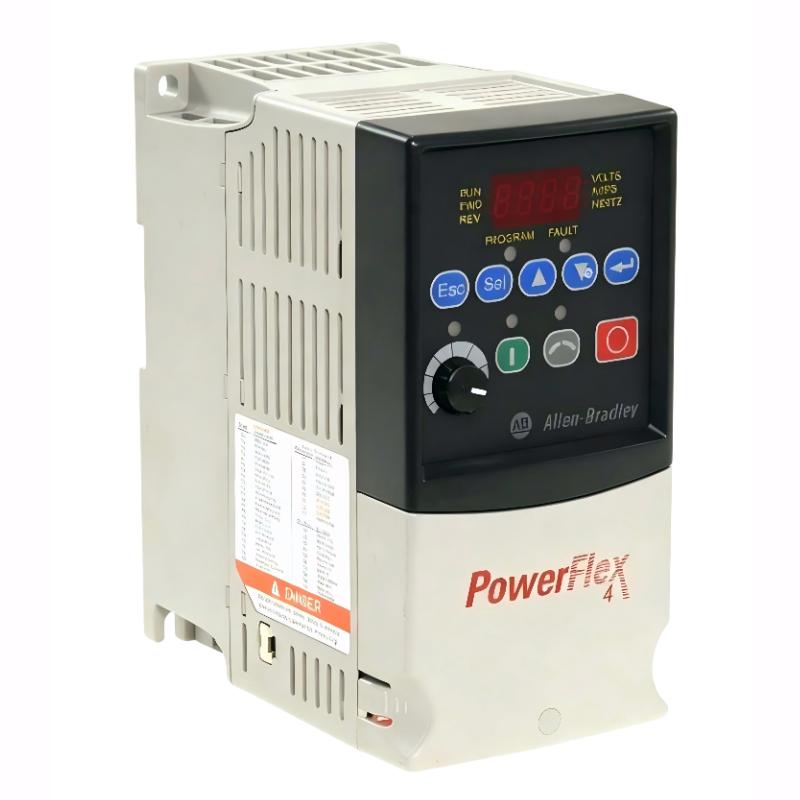

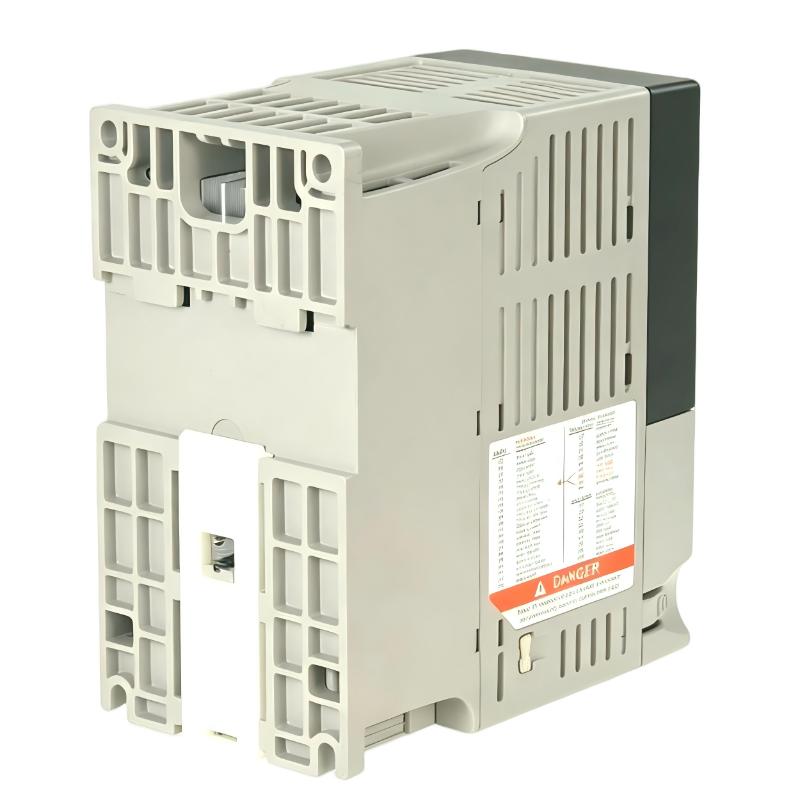

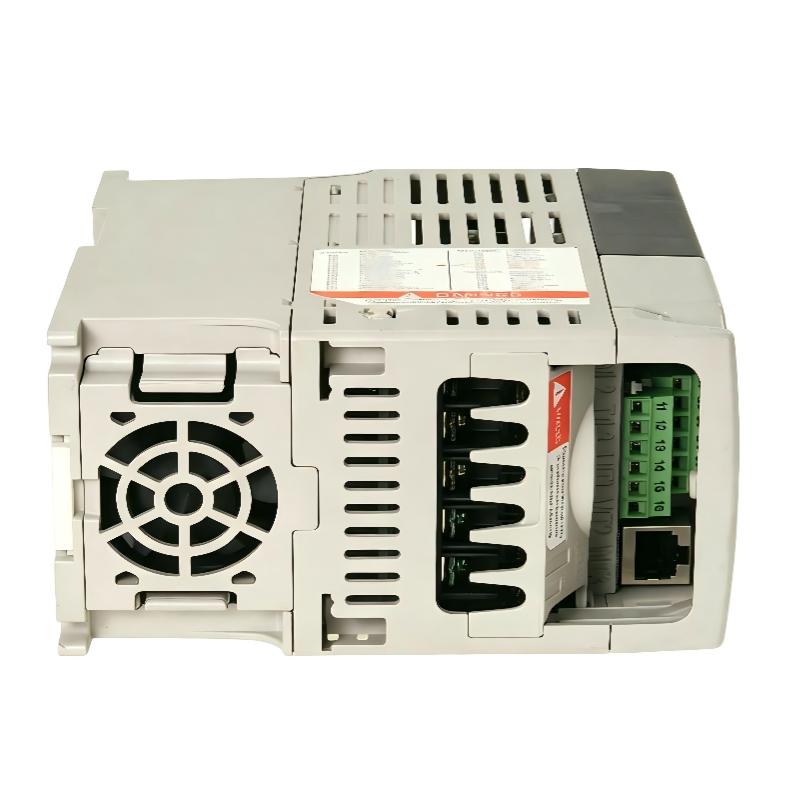

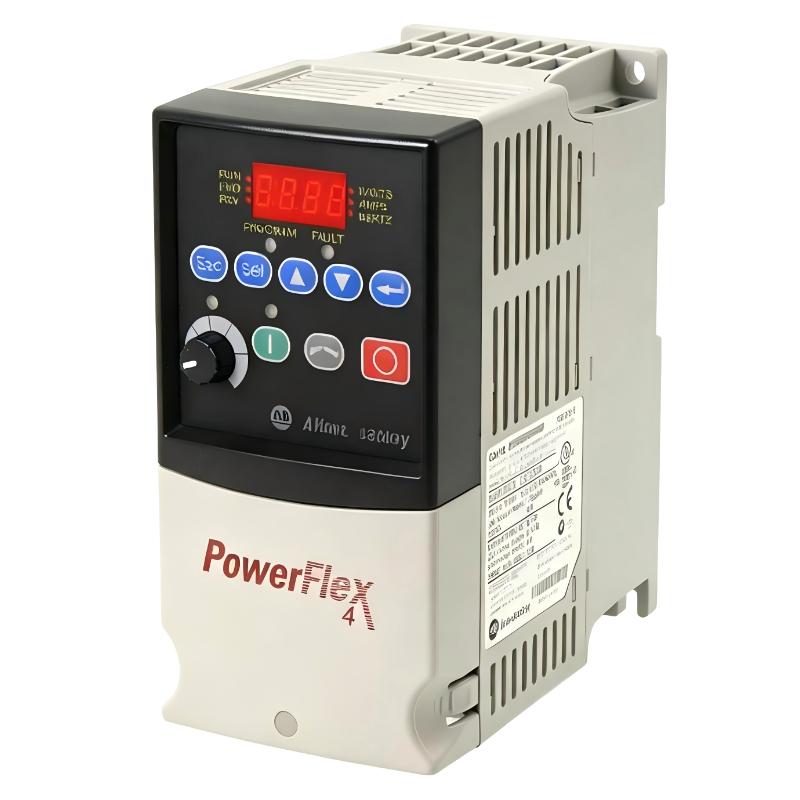

The Allen-Bradley 22A-A2P3N114 PowerFlex 4 AC Drive is a compact variable frequency drive designed for simple and reliable motor speed control. It provides basic functionality for industrial automation systems where ease of use and stable performance are key requirements.

Although part of a discontinued series, it remains widely used in existing installations due to its simplicity and reliability in light-duty applications.

Technical Specifications

Specification	Details
Product Type	AC Drive (Variable Frequency Drive)
Series	PowerFlex 4
Input Voltage	200–240 V AC, single phase
Output Current	2.3 A
Power Rating	0.4 kW (0.5 HP)
Control Type	V/Hz motor control
Dimensions	152 × 80 × 136 mm
Weight	1.4 kg / 3.09 lb
Installation Type	Panel-mounted drive
Operating Environment	Industrial control cabinets

Applications

The Allen-Bradley PowerFlex 4 22A-A2P3N114 AC Drive is designed for basic industrial motor speed control applications. It is used in compact automation systems where simple and reliable variable frequency control is required.

Typical applications include small conveyors, fans, pumps, material handling equipment, and light industrial machinery where basic speed regulation is sufficient.

Advantages

Compact design suitable for space-limited control panels
Simple configuration for basic motor control applications
Stable variable frequency operation for industrial motors
Integrated keypad for local drive operation
Designed for light-duty industrial automation use
Easy installation in standard control cabinet environments
Cost-effective solution for basic speed control

Technical FAQs

What is the main function of this drive?
It controls AC motor speed using variable frequency output.
What type of applications is it used for?
It is used in light industrial automation such as pumps and conveyors.
Is it suitable for heavy-duty machinery?
No, it is intended for light-duty applications.
Does it support local control?
Yes, it includes an integrated keypad for local operation.
Is it designed for industrial environments?
Yes, it is built for standard industrial control panels.
Can it be used for continuous operation?
Yes, within its rated load conditions.
Does it require programming?
Basic parameter setup is required for operation.
Is installation complicated?
No, it is designed for straightforward panel installation.
Does it support communication networks?
It supports basic industrial communication depending on configuration.
Is it still in production?
This product line has been discontinued by the manufacturer.
