Introduction

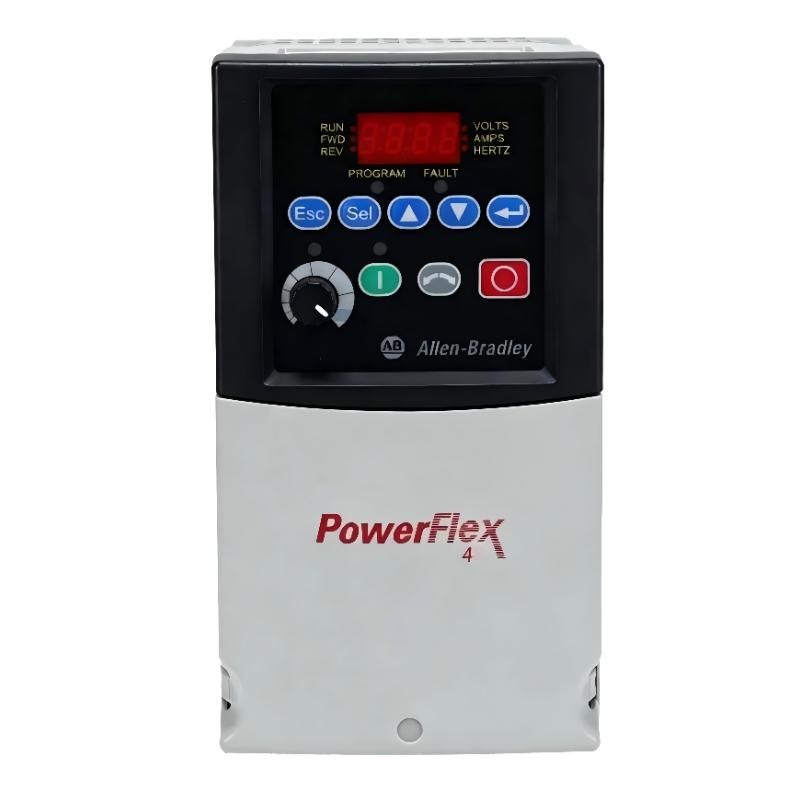

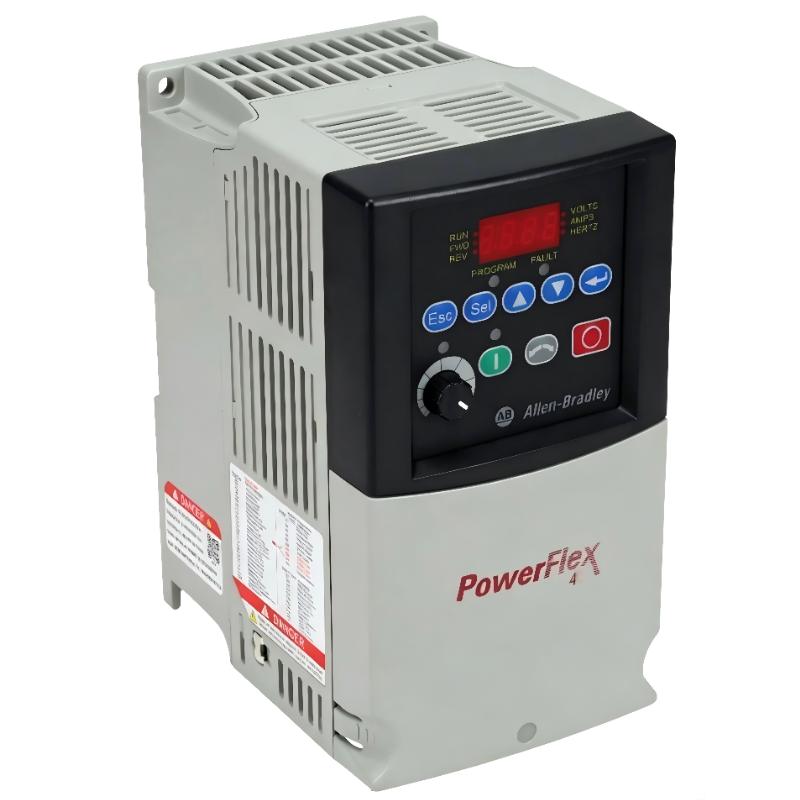

The Allen-Bradley 22A-B017N104 PowerFlex 4 AC Drive is a compact variable frequency drive designed for simple and reliable motor control. It delivers stable performance for light-duty industrial automation systems where ease of use and cost efficiency are key requirements.

Despite being discontinued, it remains widely used in installed base systems due to its reliability and straightforward operation in basic motor control applications.

Technical Specifications

Specification	Details
Product Type	AC Variable Frequency Drive
Series	PowerFlex 4
Input Voltage	200–240V AC, 3-phase
Output Current	17.5 A
Power Rating	3.7 kW (5 HP)
Control Method	V/Hz scalar control
Communication	RS485
Display	LED keypad interface
Dimensions	180 × 100 × 136 mm
Weight	2.2 kg / 4.85 lb
Installation Type	Panel-mounted drive
Series Status	Discontinued

Applications

The Allen-Bradley PowerFlex 4 22A-B017N104 AC Drive is designed for basic industrial motor speed control applications requiring reliable and compact variable frequency operation. It is widely used in light automation systems where simple motor speed regulation is required.

Typical applications include small conveyors, pumps, fans, material handling systems, and general-purpose industrial machinery.

Advantages

Compact footprint suitable for space-limited control panels
Simple setup for basic motor speed control
Stable variable frequency operation for industrial motors
Integrated keypad for local operation and configuration
Designed for light-duty industrial automation systems
Easy installation and maintenance in standard cabinets
Cost-efficient solution for basic drive applications

Technical FAQs

What is the main function of this drive?
It provides variable frequency control for AC motors.
What is its power rating?
It is rated at approximately 3.7 kW (5 HP).
What type of input does it use?
It operates on 200–240V AC three-phase input.
Is it suitable for heavy-duty applications?
No, it is designed for light industrial use.
Does it support local control?
Yes, it includes an integrated keypad interface.
Can it run continuously?
Yes, within its rated operating conditions.
Does it support communication protocols?
It supports basic industrial communication via RS485.
Is installation complicated?
No, it is designed for straightforward panel mounting.
Is it still in production?
The model has been discontinued by the manufacturer.
What environments is it designed for?
Industrial control cabinet environments with standard protection ratings.
