Brand:Allen Bradley PLC Item No.:22A-D2P3N104 Product Origin:USA Product Dimensions:152 x 80 x 136 mm Product Weight:1.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

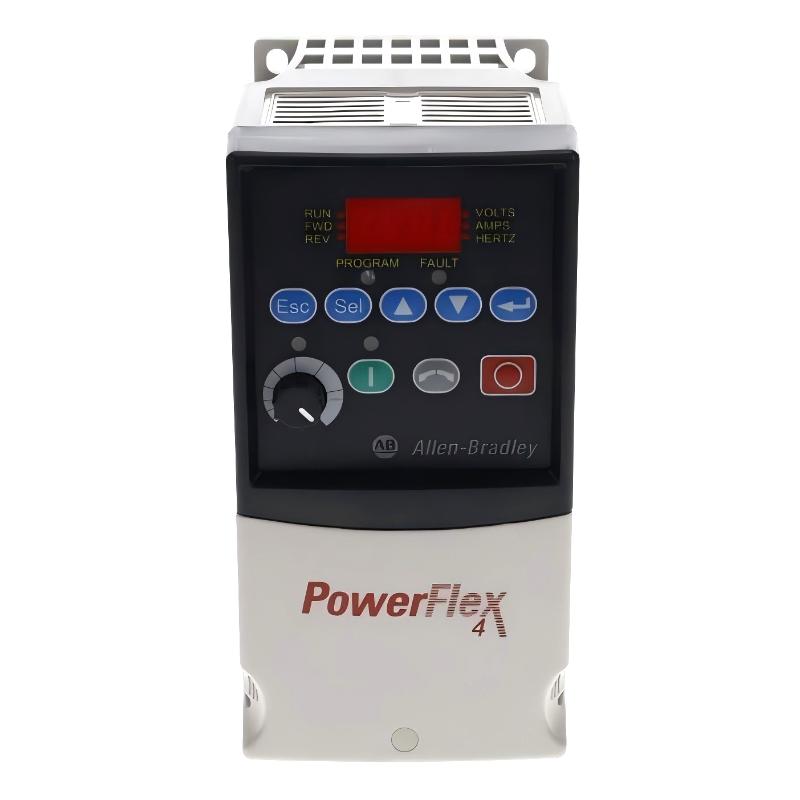

The Allen-Bradley 22A-D2P3N104 PowerFlex 4 AC Drive is a compact and reliable variable frequency drive designed for simple motor control applications. It delivers stable performance for light industrial automation systems where ease of use, compact size, and cost efficiency are important.
Although discontinued, it remains widely used in existing installations due to its proven reliability and straightforward operation.
Technical Specifications
Specification
Details
Product Type
AC Variable Frequency Drive
Series
PowerFlex 4
Input Voltage
380–480V AC, 3-phase
Output Current
2.3 A
Power Rating
0.75 kW (1 HP)
Control Method
V/Hz scalar control
Communication
RS485
Display
LED keypad interface
Dimensions
152 × 80 × 136 mm
Weight
1.4 kg / 3.09 lb
Installation Type
Panel-mounted drive
Series Status
Discontinued
Applications
The Allen-Bradley PowerFlex 4 22A-D2P3N104 AC Drive is designed for basic industrial motor speed control applications requiring compact, reliable variable frequency performance. It is widely used in light-duty automation systems where simple and stable motor speed regulation is required.
Typical applications include small conveyors, fans, pumps, material handling equipment, and general-purpose industrial machines.
Advantages
Compact design suitable for space-limited control panels
Simple configuration for quick commissioning
Stable variable frequency control for AC motors
Integrated keypad for local operation and monitoring
Designed for light-duty industrial automation systems
Easy installation in standard control cabinets
Cost-effective solution for basic motor speed control
Technical FAQs
What is the main function of this drive?
It provides variable frequency control for AC motors.
What is the rated power of this model?
0.75 kW (1 HP).
What is the input voltage?
380–480V AC, three-phase.
Is it suitable for heavy industrial loads?
No, it is designed for light-duty applications.
Does it support local control?
Yes, it includes an integrated keypad interface.
Can it run continuously?
Yes, within rated operating conditions.
Does it support communication functions?
Yes, RS485 communication capability is available.
Is installation complex?
No, it is designed for straightforward panel mounting.
Is this model still in production?
No, it has been discontinued.
What environment is it designed for?
Industrial control cabinet environments.
