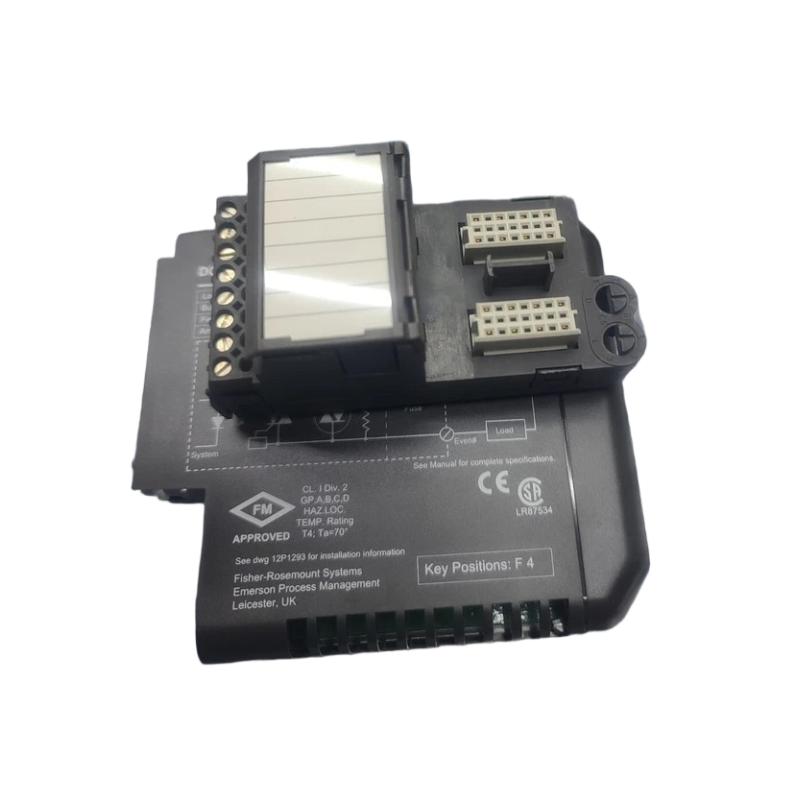

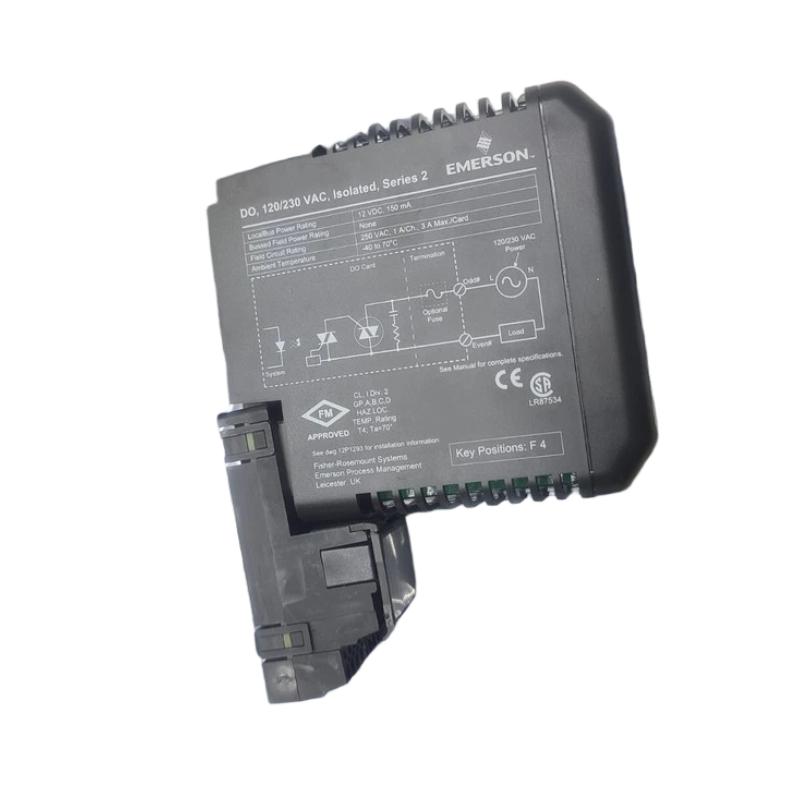

The Emerson VE4002S2T2B8 is a DeltaV Series 2 discrete output module designed for high-voltage AC output control in industrial automation systems. It is used for reliable ON/OFF switching of field devices such as contactors, motor starters, solenoid valves (via interposing relays), alarm systems, and other AC-driven actuators.
Engineered for robust industrial environments, this module provides stable electrical isolation, high channel density, and dependable switching performance, making it suitable for large-scale process control systems in power-intensive applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4002S2T2B8 |
| Product Type | Discrete Output Module (DO) |
| System Platform | DeltaV Series 2 |
| Output Channels | 32 channels |
| Output Type | 115/230 V AC digital output |
| Output Configuration | High-side switching |
| Field Voltage | 115 / 230 V AC |
| Load Type | Relay / contactor / AC actuator control |
| Output Capacity | Industrial-grade AC switching (application-dependent load rating) |
| Switching Method | Electronic / solid-state output switching |
| Isolation | Channel-to-system galvanic isolation |
| Diagnostics | Channel status monitoring & fault detection |
| Protection | Short-circuit and overload protection (system-level design) |
| Wiring Interface | 40-pin mass termination system |
| Mounting Method | DeltaV I/O carrier mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Protection | Industrial noise immunity design |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 254 × 25 × 203 mm |
| Length × Width × Height | High-density carrier-mounted format |
| Weight | Approx. 0.25–0.55 kg |
