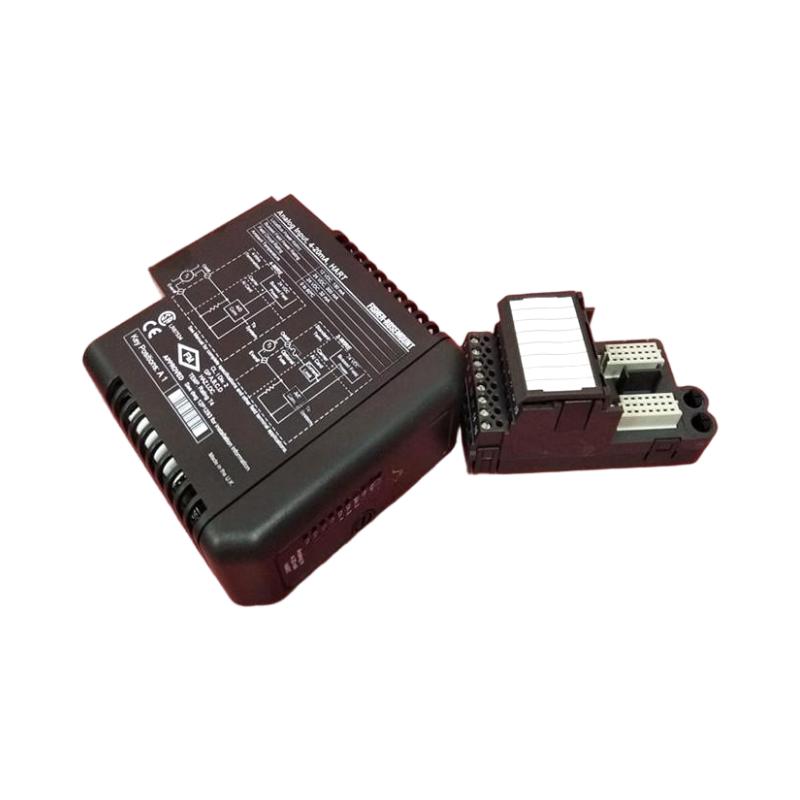

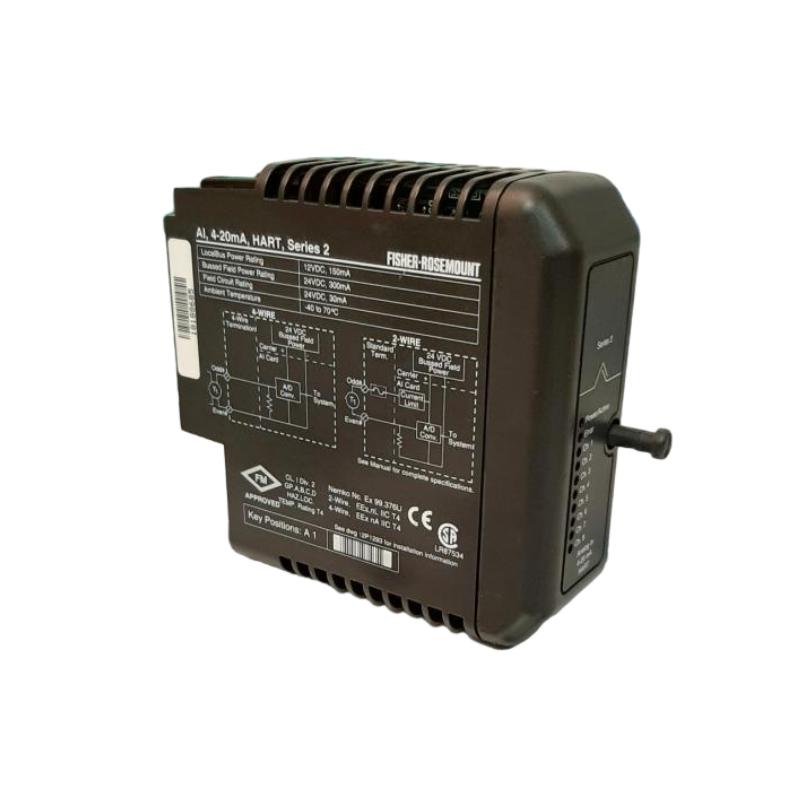

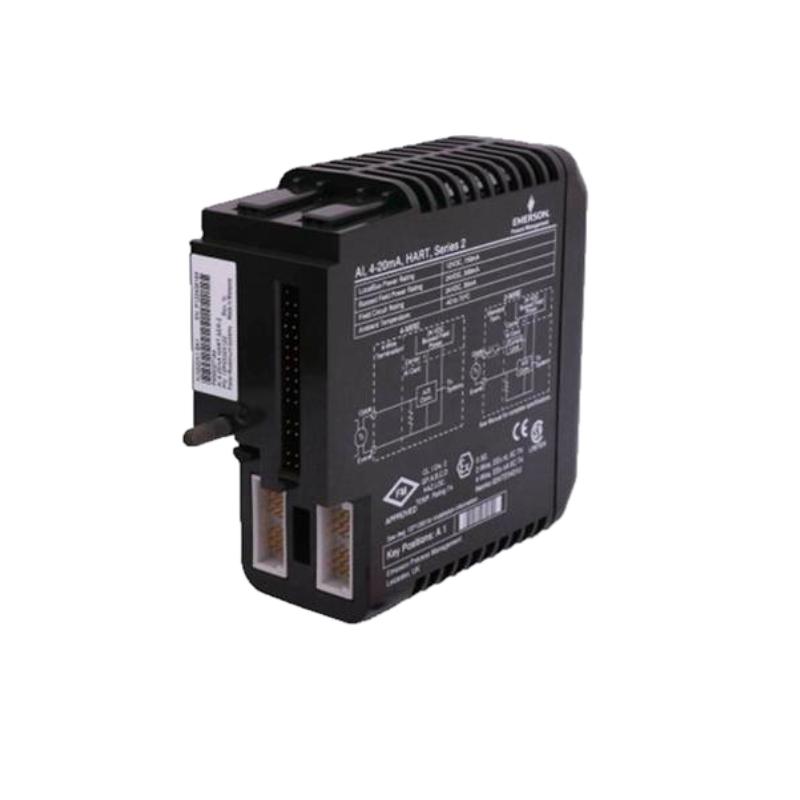

The Emerson VE4003S2B1 (KJ3222X1-BA1 + KJ4001X1-CA1) is a DeltaV Series 2 analog input module designed for precise acquisition of 4–20 mA process signals in industrial automation systems. It is widely used to interface with smart field instruments such as pressure transmitters, temperature transmitters, flow meters, and level sensors, supporting both standard analog measurement and HART digital communication.

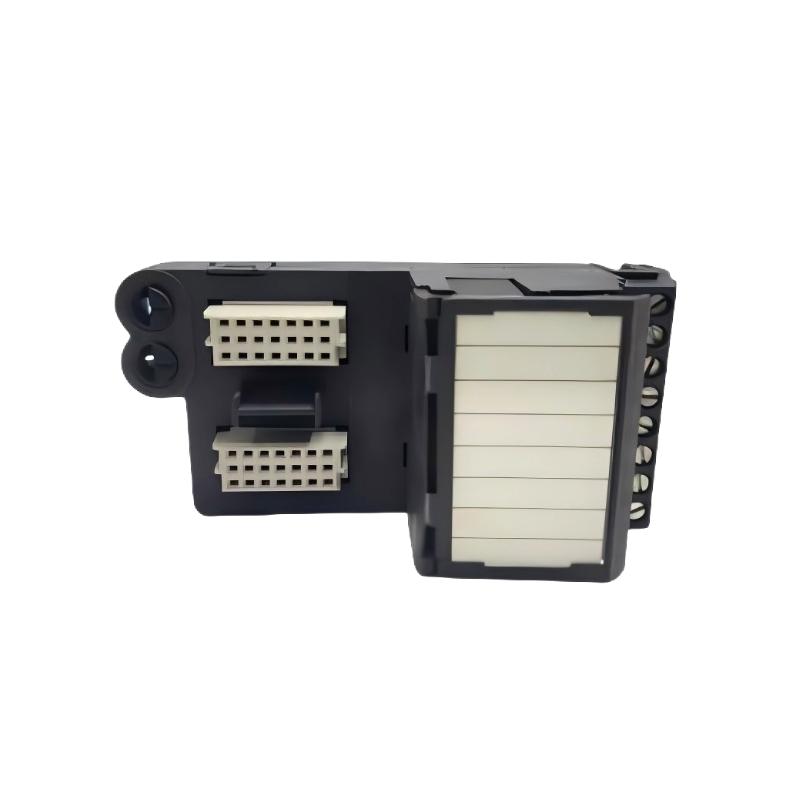

This configuration uses the KJ3222X1-BA1 analog input card together with the KJ4001X1-CA1 standard I/O termination block, enabling structured field wiring, simplified maintenance, and stable signal integrity in demanding process environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4003S2B1 |
| Module Part Number | KJ3222X1-BA1 |
| Termination Block | KJ4001X1-CA1 |
| Product Type | Analog Input Module (AI) |
| System Platform | DeltaV Series 2 I/O |
| Input Channels | 8 channels |
| Input Signal | 4–20 mA current loop |
| HART Support | Yes (digital communication overlay) |
| Measurement Type | Process variable (PV) acquisition |
| Accuracy | High-precision industrial class (≈ ±0.1% FS typical) |
| Resolution | 16-bit A/D conversion (typical DeltaV AI architecture) |
| Isolation | Channel-to-system galvanic isolation |
| Diagnostics | Sensor fault, loop break, and device health monitoring |
| Wiring Interface | KJ4001X1-CA1 standard termination block |
| Mounting Method | DeltaV I/O carrier mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Protection | Industrial-grade noise immunity |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 160 × 130 × 40 mm (assembly level) |
| Length × Width × Height | Compact carrier-mounted industrial module format |
| Weight | Approx. 0.30–0.80 kg |
