Emerson VE4003S2B3 KJ4001X1-CC1 Analog Input Module
Emerson VE4003S2B3 KJ4001X1-CC1 Analog Input Module
0.0
Points
Brand:Emerson Module Item No.:Emerson VE4003S2B3 KJ4001X1-CC1 Product Origin:USA Product Dimensions:160 × 130 × 40 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

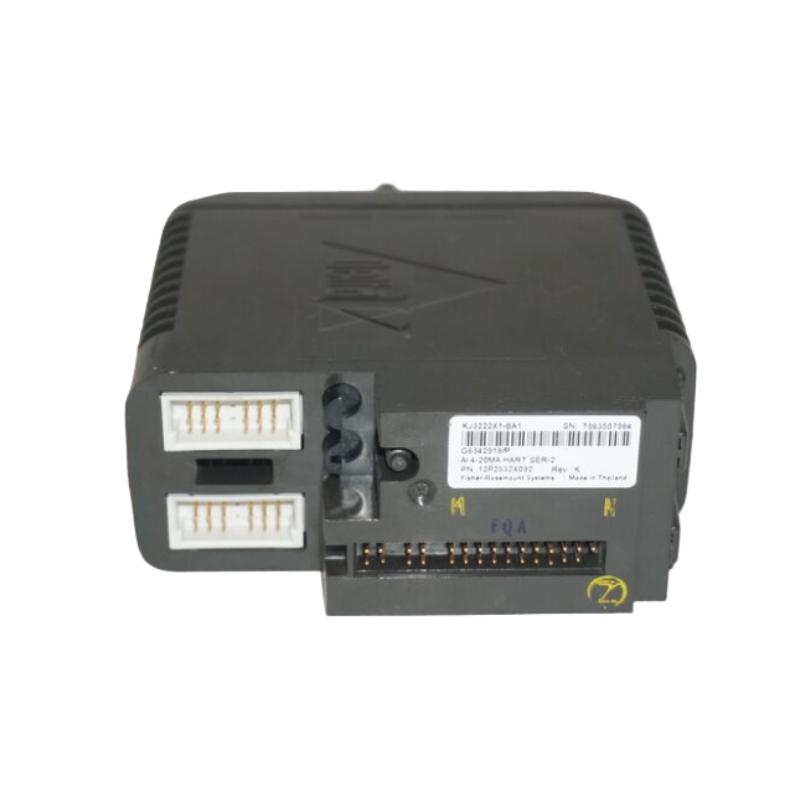

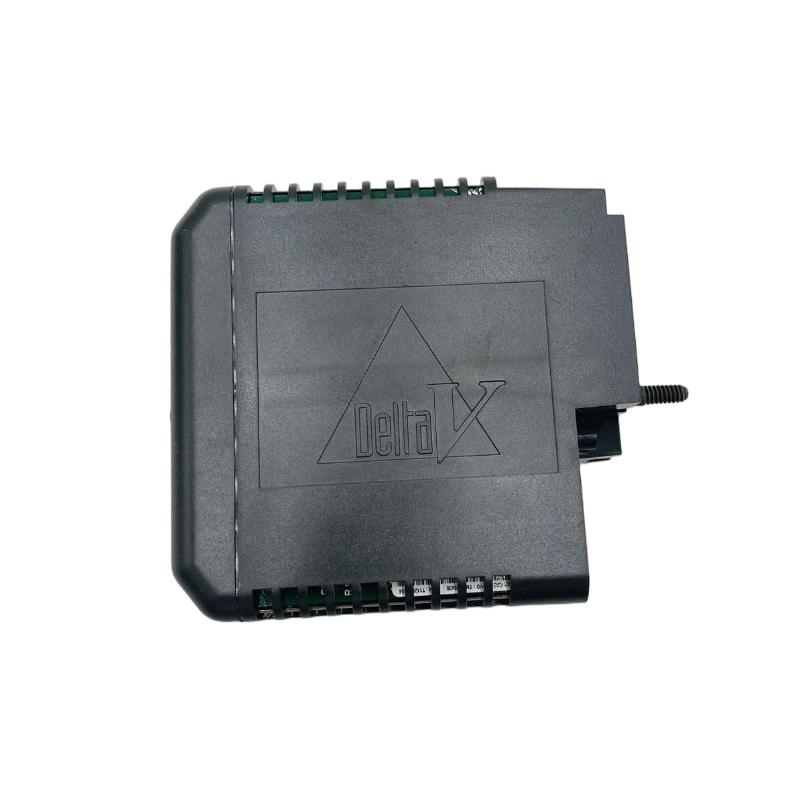

The Emerson VE4003S2B3 (KJ3222X1-BA1 + KJ4001X1-CC1) is a DeltaV Series 2 analog input module engineered for accurate acquisition of 4–20 mA process signals from industrial field devices. It supports HART communication, enabling enhanced diagnostics and configuration of smart transmitters while maintaining reliable process measurement performance.

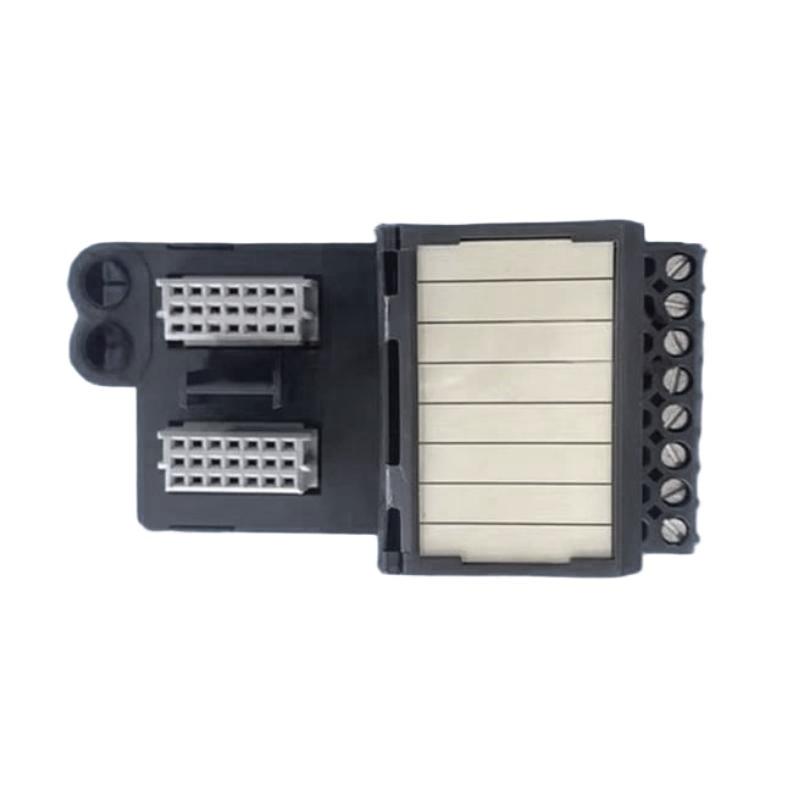

The module is commonly deployed in process industries to monitor critical variables such as pressure, temperature, flow, and level. The included KJ4001X1-CC1 4-wire termination block simplifies field wiring and improves installation flexibility.
Used for monitoring pressure transmitters, flow meters, temperature transmitters, and tank level instruments.
Chemical & Petrochemical Plants
Provides reliable process variable acquisition for reactors, storage tanks, and production units.
Power Generation
Supports boiler instrumentation, turbine monitoring, and balance-of-plant control systems.
Water & Wastewater Treatment
Collects analog data from pumps, reservoirs, filtration units, and dosing systems.
Industrial Manufacturing
Used in automated production processes requiring continuous process measurement and monitoring.
Advantages
High Measurement Accuracy
Ensures precise acquisition of process signals for stable control performance.
HART Communication Capability
Supports intelligent field devices with advanced diagnostics and remote configuration.
Reliable 4-Wire Termination
The KJ4001X1-CC1 termination block enhances wiring flexibility and maintenance efficiency.
Advanced Diagnostics
Provides loop integrity monitoring and transmitter fault detection.
Industrial Reliability
Designed for long-term operation in harsh industrial environments.
Full DeltaV Compatibility
Integrates seamlessly into Emerson DeltaV Series 2 DCS architectures.
Technical FAQs
1. What is the VE4003S2B3 used for?
It is used to collect and process 4–20 mA analog signals from industrial field instruments.
2. How many channels are available?
The module supports 8 analog input channels.
3. Does it support HART devices?
Yes, full HART communication support is provided.

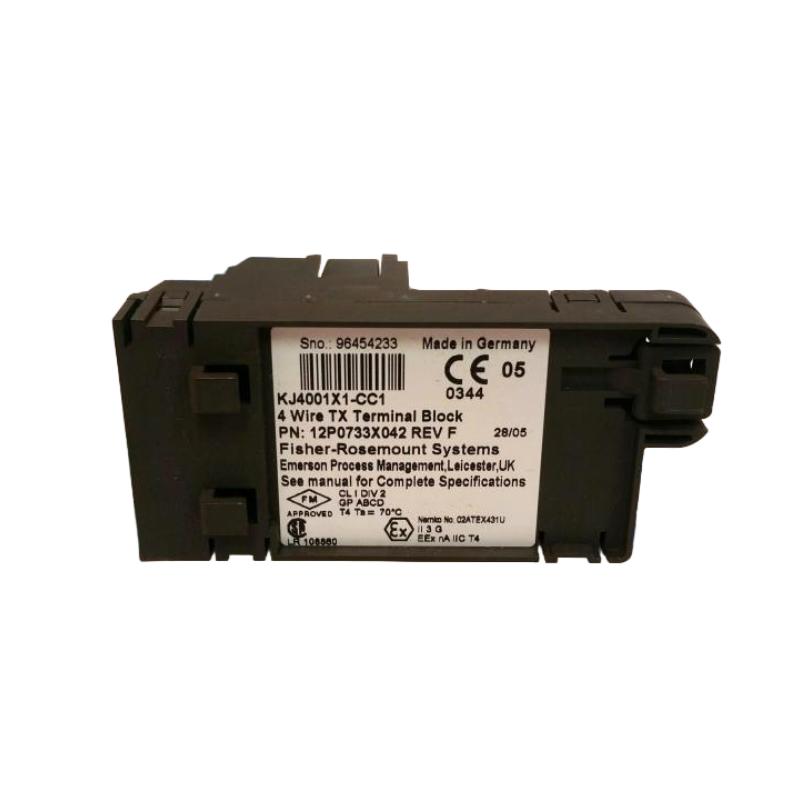

4. What is the function of the KJ4001X1-CC1?
It is a 4-wire termination block used for field signal connections.
5. What signal types can be connected?
Standard 4–20 mA analog current loop signals.
6. Is isolation provided?
Yes, channel-to-system galvanic isolation is included.
7. Which control system is it compatible with?
Emerson DeltaV Series 2 Distributed Control System.
8. What are the dimensions?
160 × 130 × 40 mm (L × W × H).
9. What is the weight?
Approximately 0.45 kg.
10. Why is this module widely used?
Because it combines accurate analog measurement, HART communication, advanced diagnostics, and reliable DeltaV integration for critical industrial process applications.
