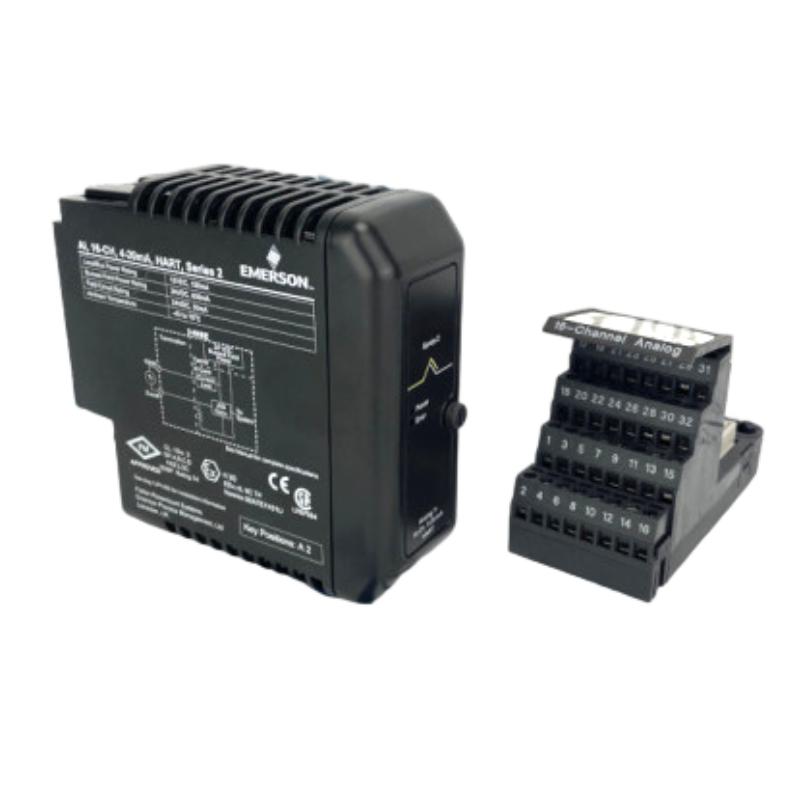

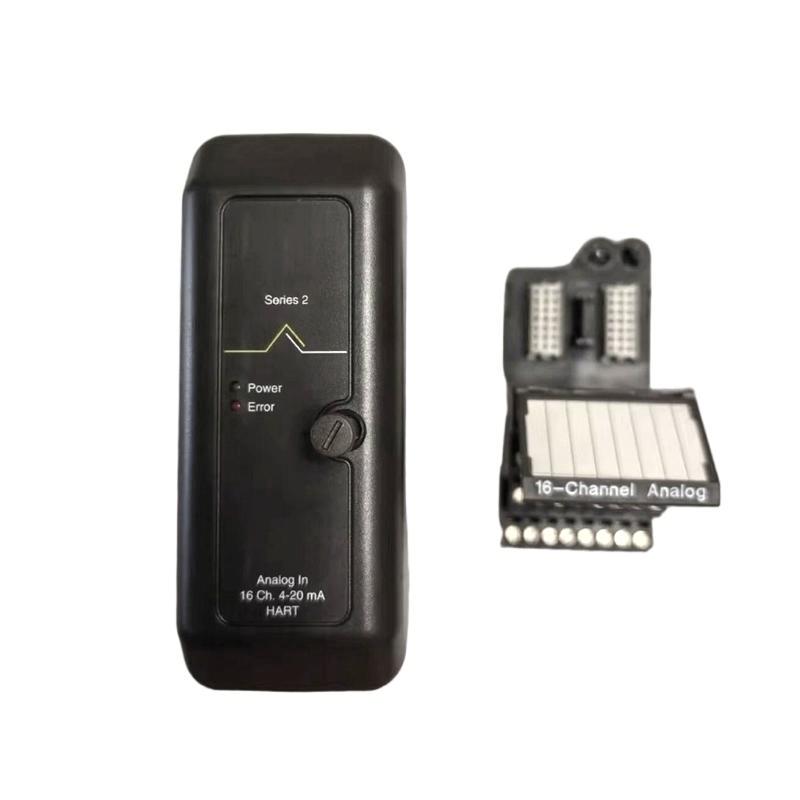

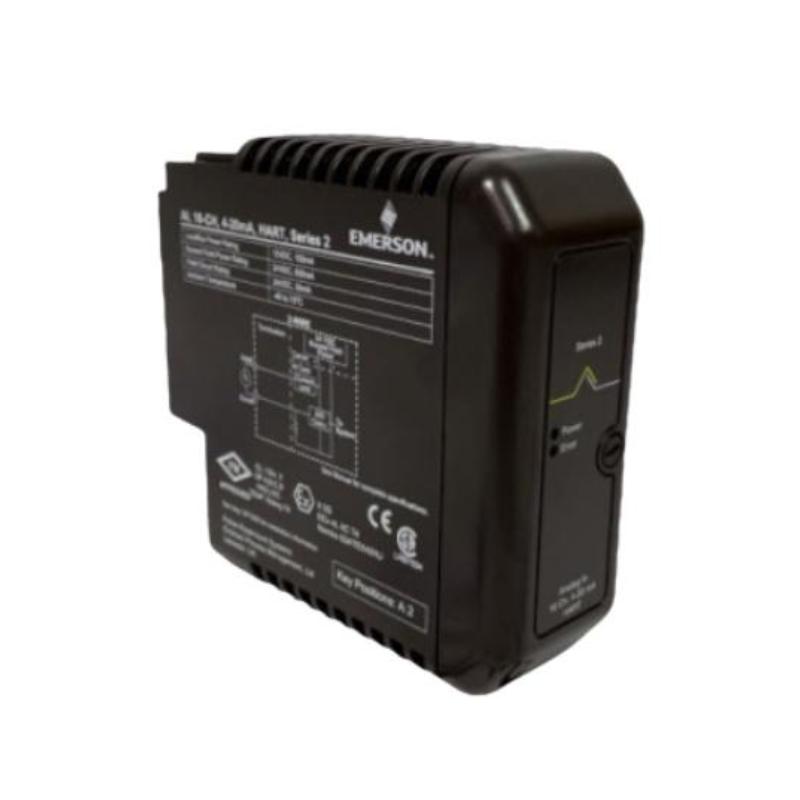

The Emerson VE4003S2B6 (KJ3223X1-BA1) is a DeltaV Series 2 analog input module used for acquiring analog process signals from industrial field instruments. It is designed for integration into Emerson’s DeltaV Distributed Control System (DCS), enabling reliable monitoring of key process variables such as pressure, temperature, flow, and level.
This module is typically used with DeltaV I/O termination systems and is engineered for high-density signal acquisition, strong electrical isolation, and advanced diagnostic capabilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4003S2B6 |
| I/O Card | KJ3223X1-BA1 |
| Product Type | Analog Input Module (AI) |
| System Platform | DeltaV Series 2 I/O |
| Input Channels | 8 channels |
| Input Signal | 4–20 mA current loop |
| HART Communication | Supported |
| A/D Resolution | 16-bit |
| Measurement Accuracy | ±0.1% FS (typical industrial class) |
| Isolation | Channel-to-system galvanic isolation |
| Diagnostics | Loop break detection, transmitter diagnostics, channel fault monitoring |
| Mounting Method | DeltaV carrier-mounted |
| Wiring Interface | DeltaV termination system (varies by installation design) |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Protection | Industrial-grade electromagnetic immunity |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 160 × 130 × 40 mm |
| Weight | Approx. 0.2–0.8 kg (varies by configuration) |
Key Features
- 8-channel analog input for 4–20 mA signals
- Full HART communication support for smart field devices
- High-density design for efficient cabinet space usage
- Strong electrical isolation for system protection
- Advanced diagnostics for loop and sensor health monitoring
- Seamless integration with Emerson DeltaV Series 2 systems
- Suitable for continuous 24/7 industrial operation
