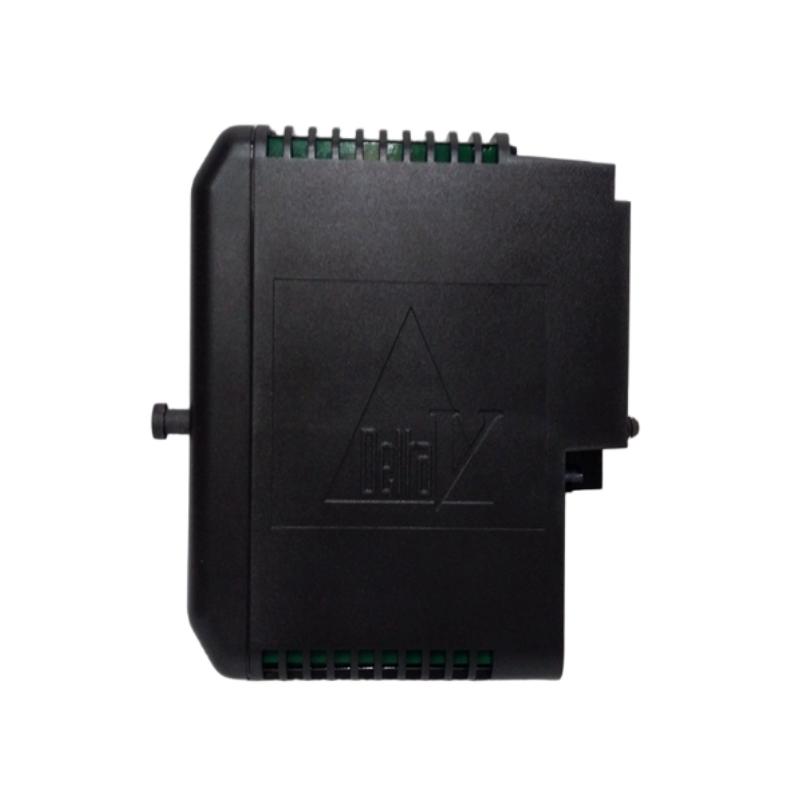

The Emerson VE4003S6B1 is a DeltaV Series 2 analog input module designed for high-precision temperature and resistance signal measurement. It is primarily used for RTD (Pt100/Pt1000), resistance (ohm), and low-level millivolt (mV) inputs, making it suitable for industrial temperature monitoring and process control applications in Emerson DeltaV Distributed Control Systems (DCS).
This module is part of Emerson’s specialized temperature input family, providing high accuracy, strong noise immunity, and reliable diagnostics for continuous industrial operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4003S6B1 |
| I/O Card | KJ3225X1-BA1 (varies by revision) |
| Product Type | RTD / Resistance / mV Analog Input Module |
| System Platform | DeltaV Series 2 I/O |
| Input Channels | 8 channels (typical configuration) |
| Input Types | RTD (Pt100, Pt1000), resistance (ohm), millivolt |
| Temperature Range | -200°C to 850°C (RTD dependent) |
| A/D Resolution | 16-bit (industrial-grade) |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Diagnostics | Open circuit detection, sensor fault monitoring |
| Mounting Method | DeltaV carrier-mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Protection | Industrial noise immunity design |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 160 × 130 × 40 mm (DeltaV standard module format) |
| Weight | Approx. 0.2–1.0 kg (varies by configuration) |
Key Features
- Supports RTD and resistance temperature measurement
- High accuracy for industrial temperature control loops
- Strong electrical isolation for harsh environments
- Built-in diagnostics for sensor and wiring faults
- Stable operation in continuous 24/7 processes
- Seamless integration with Emerson DeltaV DCS architecture
