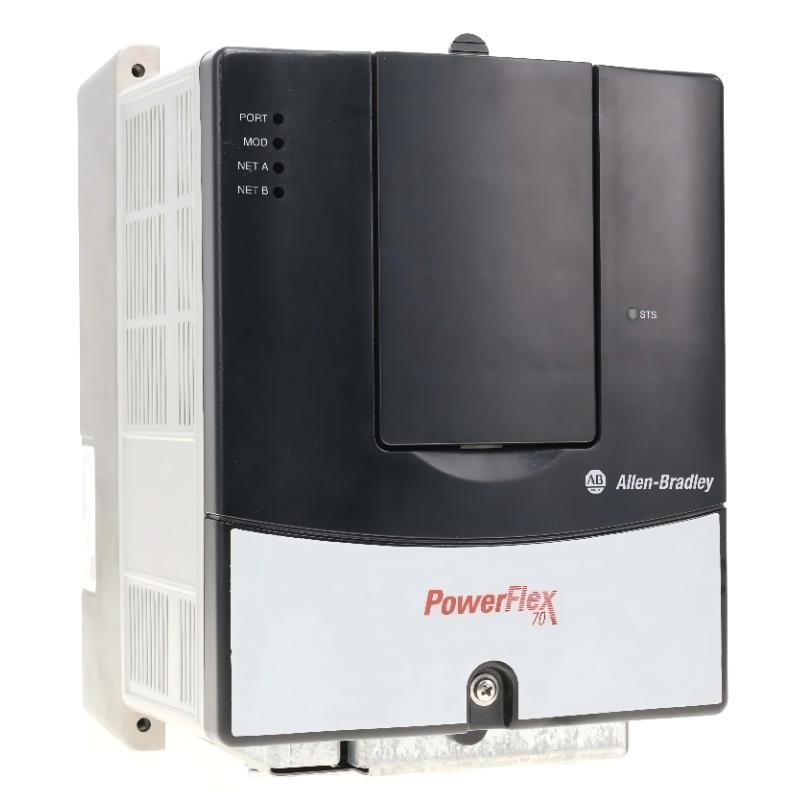

Allen Bradley 20AC2P1A0AYNANC0 PowerFlex 70 AC Drive
Allen Bradley 20AC2P1A0AYNANC0 PowerFlex 70 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20AC2P1A0AYNANC0 Product Origin:USA Product Dimensions:234.6 x 171.7 x 179.8 mm Product Weight:3.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20AC2P1A0AYNANC0 PowerFlex 70 AC Drive is a widely deployed variable frequency drive designed for general-purpose industrial motor control. It provides a balance of performance, flexibility, and reliability, making it suitable for a broad range of applications from HVAC systems to manufacturing conveyors. As part of the PowerFlex 70 family, it is known for its robust control capabilities and long-term industrial durability, especially in legacy automation systems where stable operation and compatibility are critical.
Technical Specifications
Parameter
Specification
Series
PowerFlex 70
Model
20AC2P1A0AYNANC0
Input Voltage
400 V AC, 3-phase
Output Current
2.1 A
Power Rating
0.75 kW (normal duty)
Control Method
V/Hz control / Sensorless vector control
Enclosure Rating
IP20 / NEMA Type 1
Dimensions
234.6 × 171.7 × 179.8 mm
Weight
3.6 kg
Cooling Method

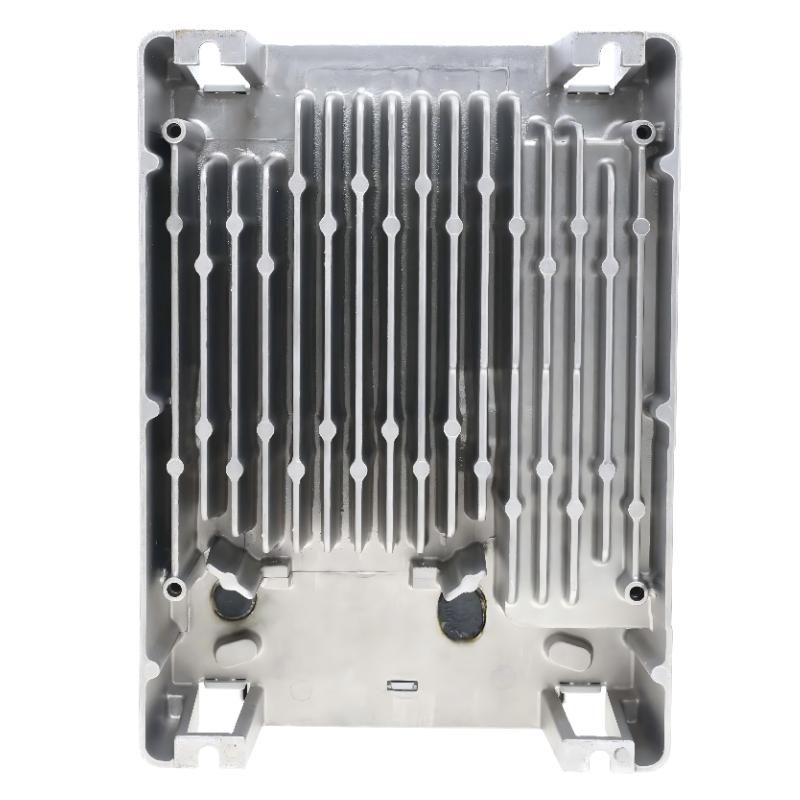

Forced air cooling
Mounting Type
Panel mount
Recommended Related Models
Model
Product Name
20AD2P1A0AYNANC0
Allen-Bradley PowerFlex 70 AC Drive (Alternate Control Option)
20AC5P0A0AYNANC0
Allen-Bradley PowerFlex 70 Higher Power Variant
20AB2P1A0AYNANC0
Allen-Bradley PowerFlex 70 Base Configuration Drive
20AC3P4A0AYNANC0
Allen-Bradley PowerFlex 70 Medium Duty AC Drive
Popular Related Models
Model
Product Name
25B-D013N114
Allen-Bradley PowerFlex 525 AC Drive
25B-D017N114
Allen-Bradley PowerFlex 525 Compact Drive
2198-H025-ERS
Allen-Bradley Kinetix 5500 Servo Drive
22F-D4P2N103
Allen-Bradley PowerFlex 4M AC Drive
Applications
• Industrial pump and fan control systems requiring stable variable speed regulation
• Conveyor and material handling systems with medium-duty torque demand
• HVAC automation systems for airflow and pressure optimization
• Packaging machinery requiring reliable motor speed adjustment under variable load
• General OEM industrial equipment with standard AC motor control requirements
• Light to medium industrial process automation using V/Hz or vector control modes
Key Advantages
• Proven PowerFlex 70 architecture ensures stable and reliable motor speed control in industrial environments
• Flexible control modes (V/Hz and vector control) support a wide range of application requirements
• Compact frame design allows straightforward installation in standard control cabinets
• Built-in communication flexibility supports integration with common industrial PLC systems
• High overload capability enhances performance during transient load conditions
• Durable industrial-grade construction improves long-term service life in demanding environments
Technical FAQs
Q1: What type of applications is the PowerFlex 70 best suited for?
It is commonly used in pumps, fans, conveyors, and general-purpose industrial motor control systems.
Q2: Does this drive support vector control?
Yes, it supports both V/Hz and sensorless vector control depending on configuration.
Q3: Is it suitable for HVAC systems?
Yes, it is widely used in HVAC applications for airflow and pressure regulation.
Q4: Can it be integrated with PLC systems?
Yes, it supports industrial communication options for PLC integration depending on installed modules.
Q5: Does it support braking functionality?
Yes, braking capability is supported with appropriate external or internal configurations.
Q6: Is it suitable for heavy-duty loads?
It is designed mainly for light to medium industrial duty applications.
Q7: What protection features are included?
It includes overcurrent, overvoltage, undervoltage, and thermal protection.
Q8: Can it handle sudden load changes?
Yes, it has overload handling capability for transient industrial conditions.
Q9: Is it still actively manufactured?
It is considered legacy/EOL in some regions, but still widely used in existing installations.
Q10: What makes it popular in retrofit projects?
Its wide installed base and compatibility with older industrial systems make it a common replacement choice.
