Brand:Allen Bradley PLC Item No.:22B-A2P3N114 Product Origin:USA Product Dimensions:180 x 100 x 136 mm Product Weight:2.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

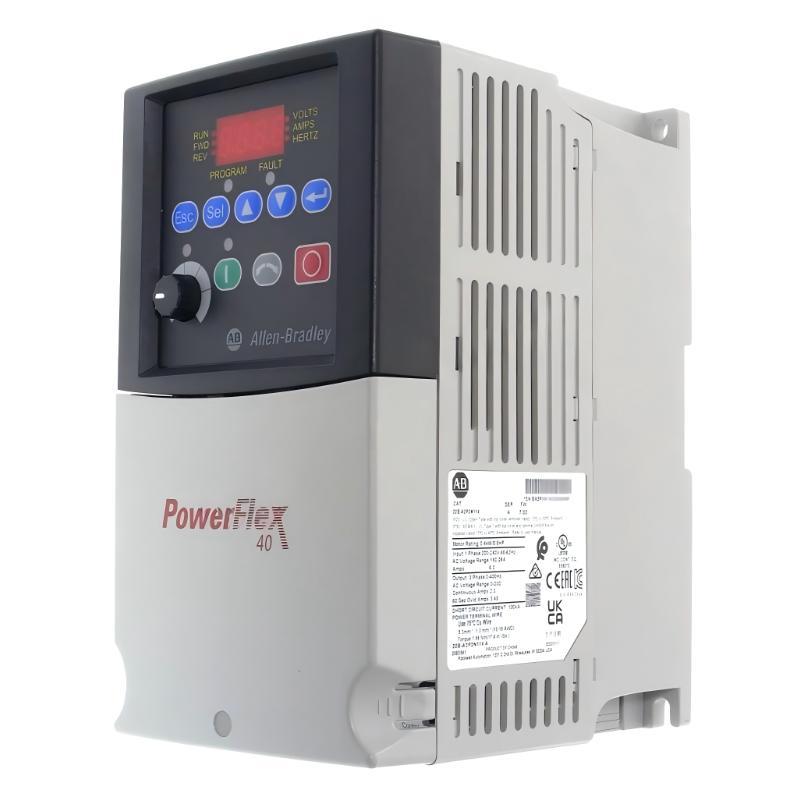

The Allen-Bradley 22B-A2P3N114 PowerFlex 40 AC Drive is a compact variable frequency drive designed for simple and efficient motor speed control in light industrial applications. It provides a straightforward solution for OEMs and system integrators who require reliable performance without the complexity of advanced control features. Its small footprint and ease of setup make it particularly suitable for cost-sensitive automation systems and compact machine designs.
Technical Specifications
Parameter
Specification
Series
PowerFlex 40
Model
22B-A2P3N114
Input Voltage
200–240 V AC, 1/3 phase
Output Current
2.3 A
Power Rating
0.37 kW (approx.)
Control Method
V/Hz control
Enclosure Rating
IP20
Dimensions
180 × 100 × 136 mm
Weight
2.2 kg
Cooling Method
Natural/forced air cooling
Mounting Type
Panel mount
Recommended Related Models
Model
Product Name
22B-D2P3N114
Allen-Bradley PowerFlex 40 Higher Current Variant
22A-A4P8N104
Allen-Bradley PowerFlex 4 AC Drive
25B-D013N114
Allen-Bradley PowerFlex 525 AC Drive
20AC2P1A0AYNANC0
Allen-Bradley PowerFlex 70 AC Drive
Popular Related Models
Model
Product Name
25B-D017N114
Allen-Bradley PowerFlex 525 Compact AC Drive
22F-D4P2N103
Allen-Bradley PowerFlex 4M AC Drive
2198-H015-ERS
Allen-Bradley Kinetix 5500 Servo Drive
20AD2P1A0AYNANC0
Allen-Bradley PowerFlex 70 AC Drive Variant
Applications
• Small conveyor systems requiring basic variable speed motor control
• Packaging and labeling machines with light-duty torque and speed adjustment needs
• HVAC auxiliary fan and blower control applications in commercial systems
• OEM machinery requiring compact and cost-efficient AC drive integration
• Simple material handling systems with consistent low-to-medium load conditions
• Light industrial automation equipment where straightforward motor control is sufficient
Key Advantages
• Compact frame design enables easy installation in space-limited control panels
• Simple configuration reduces commissioning time for OEM machine builders
• Reliable V/Hz control provides stable performance for general-purpose applications
• Built-in protection functions enhance operational safety and equipment longevity
• Cost-effective design makes it suitable for high-volume industrial deployments
• Straightforward integration with standard industrial motor systems and PLC setups
• Stable low-speed operation improves consistency in basic automation tasks
Technical FAQs
Q1: What type of applications is PowerFlex 40 best suited for?
It is designed for simple industrial applications such as small conveyors, fans, and pumps.
Q2: Does it support advanced vector control?
No, it primarily supports basic V/Hz control for general-purpose motor operation.
Q3: Is it suitable for HVAC systems?
Yes, it is commonly used for auxiliary HVAC fan and blower control.
Q4: Can it handle heavy industrial loads?
It is intended for light-duty to small medium-duty applications only.
Q5: Does it support PLC integration?
Yes, it can integrate with standard PLC systems depending on communication setup.
Q6: Is it easy to commission?
Yes, it is designed for simplified setup and quick startup.
Q7: What protection features are included?
It includes standard protections such as overcurrent, overvoltage, and thermal protection.
Q8: Can it be used in continuous operation?
Yes, within its rated load conditions it supports continuous industrial use.
Q9: Is it still widely used today?
Yes, it remains common in legacy systems and cost-sensitive OEM machines.
Q10: What makes it different from PowerFlex 70?
It is simpler, smaller, and more basic in control capability compared to PowerFlex 70.
