Brand:Allen Bradley PLC Item No.:25A-D4P0N114 Product Origin:USA Product Dimensions:172 x 72 x 152 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

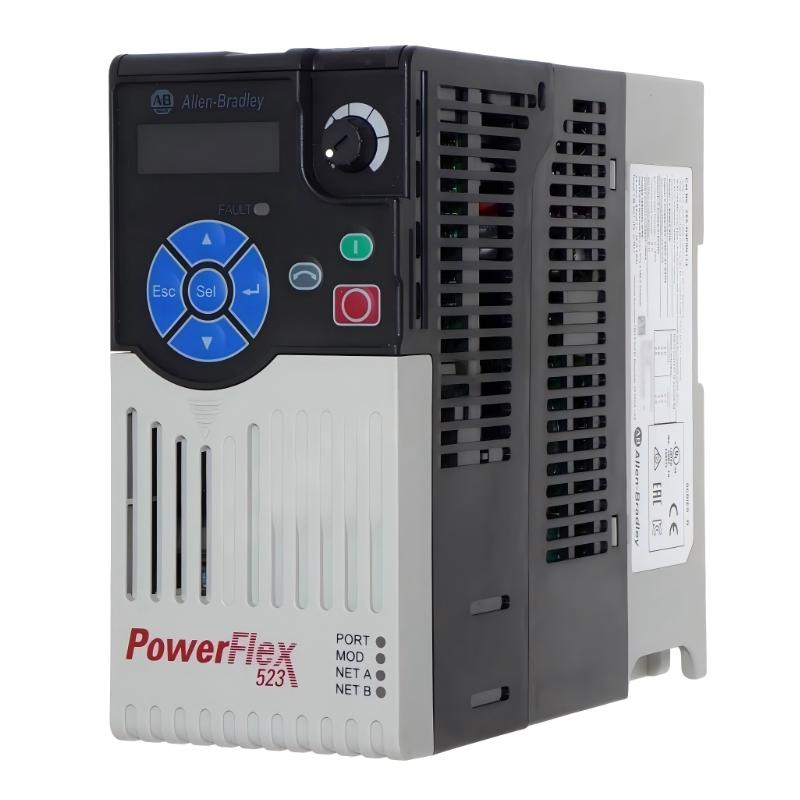

The Allen-Bradley 25A-D4P0N114 PowerFlex 523 AC Drive is a compact and efficient variable frequency drive designed for modern OEM applications requiring reliable motor control in a simplified architecture. It delivers a balance of performance and ease of use, making it suitable for machines where installation space, commissioning speed, and cost efficiency are critical factors. As part of the PowerFlex 520-series platform, it is widely adopted in small automation systems and standardized industrial equipment designs.
Technical Specifications
Parameter
Specification
Series
PowerFlex 523
Model
25A-D4P0N114
Input Voltage
380–480 V AC, 3-phase
Output Current
4 A
Power Rating
1.5 kW (2 HP)
Control Method
V/Hz / Sensorless vector control
Communication
RS485 / DSI support
Enclosure Rating
IP20
Dimensions
172 × 72 × 152 mm
Weight
1.1 kg
Mounting Type
Panel mount
Cooling Method
Forced air cooling
Recommended Related Models
Model
Product Name
25A-D2P3N114
Allen-Bradley PowerFlex 523 AC Drive (Smaller Current Variant)
25A-D6P0N114
Allen-Bradley PowerFlex 523 Higher Power AC Drive
25B-D013N114
Allen-Bradley PowerFlex 525 Compact AC Drive
20AC2P1A0AYNANC0
Allen-Bradley PowerFlex 70 AC Drive
Popular Related Models
Model
Product Name
22B-D2P3N114
Allen-Bradley PowerFlex 40 AC Drive
25B-D017N114
Allen-Bradley PowerFlex 525 AC Drive
22F-D4P2N103
Allen-Bradley PowerFlex 4M AC Drive
2198-H015-ERS
Allen-Bradley Kinetix 5500 Servo Drive
Applications
• Compact OEM machinery requiring basic variable speed motor control in tight cabinet layouts
• Small conveyor systems with stable low-to-medium load transport requirements
• Packaging and labeling equipment needing consistent motor speed regulation
• HVAC auxiliary fan and blower control for airflow adjustment in commercial systems
• Simple pump control applications with energy-efficient speed variation
• Light industrial automation systems where cost-effective drive control is preferred
Key Advantages
• Compact A-frame design enables easy integration into space-constrained control panels
• Sensorless vector control improves torque stability at low speeds
• Modular control core design simplifies configuration and maintenance operations
• Integrated EMC filtering enhances electromagnetic compatibility in industrial environments
• Flexible communication options support integration with standard PLC architectures
• Reliable overload handling improves performance under transient load conditions
• Efficient motor control reduces energy consumption in continuous-duty applications
Technical FAQs
Q1: What type of motor control does the PowerFlex 523 support?
It supports V/Hz control and sensorless vector control for flexible industrial applications.
Q2: Is this drive suitable for HVAC systems?
Yes, it is commonly used in HVAC fan and pump control applications.
Q3: Can it be used in conveyor systems?
Yes, it is widely used for small to medium conveyor speed control.
Q4: Does it support communication with PLC systems?
Yes, it supports industrial communication options depending on configuration.
Q5: Is it suitable for heavy-duty industrial loads?
It is intended for light to medium-duty applications, not heavy continuous loads.
Q6: Does it include built-in protection features?
Yes, it includes standard protections such as overcurrent and thermal protection.
Q7: Is commissioning complex?
No, it is designed for simplified setup and quick parameter configuration.
Q8: Can it handle sudden load changes?
Yes, within rated limits it can handle moderate transient load variations.
Q9: Is it still widely used today?
Yes, it remains common in OEM machines and installed base replacements.
Q10: What makes it different from PowerFlex 70?
It is smaller, simpler, and more cost-focused with fewer advanced control features.
