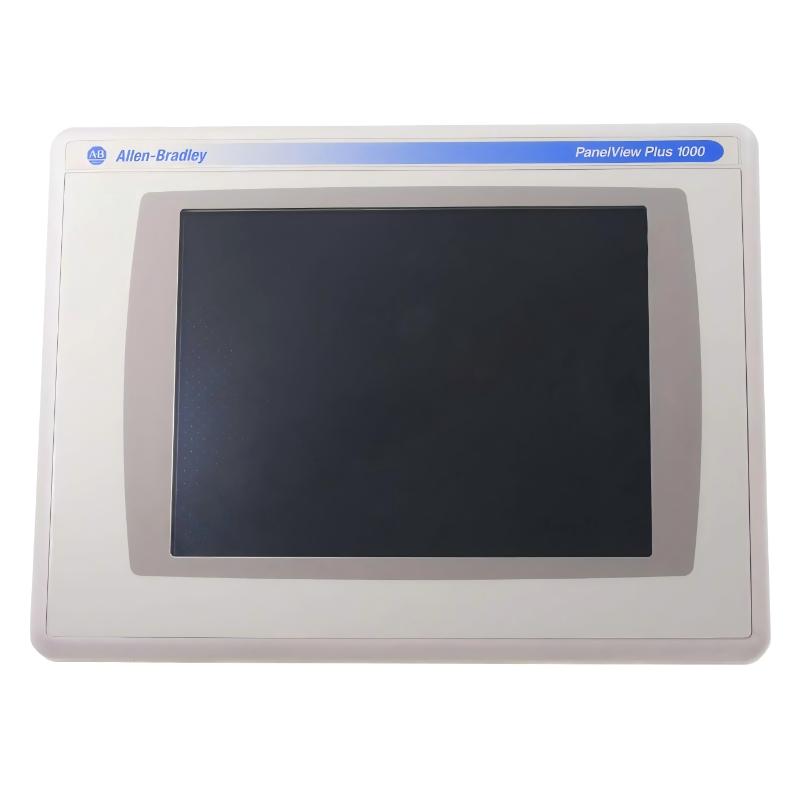

Allen Bradley 2711P-RDT10C PanelView Plus 6 1000 Operator Interface
Allen Bradley 2711P-RDT10C PanelView Plus 6 1000 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-RDT10C Product Origin:USA Product Dimensions:399 x 55 x 248 mm Product Weight:2.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2711P-RDT10C PanelView Plus 6 1000 is a widely used industrial operator interface designed to bridge human operators and automated control systems. It delivers stable visualization and control capabilities for machine-level and process-level applications. As part of the PanelView Plus 6 family, it represents a mature and proven HMI platform that continues to be deployed in industrial environments where reliability, compatibility, and established Rockwell Automation infrastructure are key requirements.
Technical Specifications
Parameter
Specification
Series
PanelView Plus 6 1000
Model
2711P-RDT10C
Display Size
10.4-inch color TFT LCD
Resolution
640 × 480 (VGA)
Input Method
Resistive touchscreen
Communication
Ethernet, RS-232
Input Voltage
85–264V AC
Memory
Application memory ~512 MB (system dependent)
Dimensions
399 × 55 × 248 mm
Weight
2.8 kg
Mounting Type
Panel mount
Protection Rating
Industrial-grade front panel sealing (IP/NEMA rated front)
Operating Temperature
0°C to 50°C
Recommended Related Models
Model
Product Name
2711P-RDT10C/C
Allen-Bradley PanelView Plus 6 1000 Display Module (Revision C)
2711P-T10C4D8
Allen-Bradley PanelView Plus 7 Standard 1000 HMI
2711P-T10C22D9P
Allen-Bradley PanelView Plus 7 Performance 1000 HMI
2711P-B10C4A8
Allen-Bradley PanelView Plus 1000 Terminal Base Unit
• Ethernet and serial communication support ensures flexible PLC connectivity options
• Rugged industrial-grade construction improves reliability in continuous production environments
• Wide compatibility with Allen-Bradley control systems simplifies integration and migration
• Stable runtime performance reduces system downtime in demanding automation tasks
• PanelView Plus 6 platform supports advanced HMI functions including alarms and trending
Technical FAQs
Q1: What PLC systems is this PanelView compatible with?
It is commonly used with Allen-Bradley CompactLogix, ControlLogix, and legacy PLC systems.
Q2: Does it support Ethernet communication?
Yes, it supports Ethernet along with serial communication options.
Q3: Is this model still in active production?
No, it belongs to a discontinued PanelView Plus 6 generation, but remains widely used in installed systems.
Q4: Can it run modern FactoryTalk View ME applications?
Yes, within version compatibility limits of PanelView Plus 6 firmware.
Q5: What type of input does it use?
It uses a resistive touchscreen interface for operator input.
Q6: Is it suitable for harsh industrial environments?
Yes, it is designed for industrial environments with dust and vibration resistance.
Q7: Can it display alarms and process trends?
Yes, it supports alarm management, trending, and data visualization functions.
Q8: Is it easy to replace in legacy systems?
Yes, it is often used as a direct replacement in PanelView Plus 6 installations.
Q9: Does it require external computing hardware?
No, it is a standalone operator interface terminal.
Q10: What is its main limitation compared to newer models?
It lacks modern high-speed processors and advanced visualization features found in newer PanelView Plus 7 systems.
