Introduction

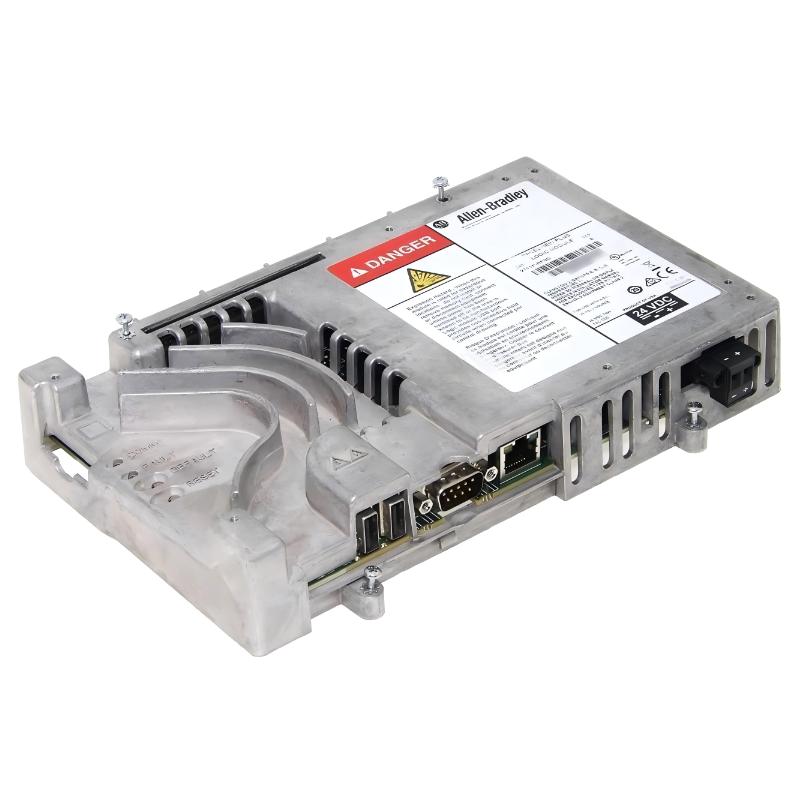

The Allen-Bradley 2711P-RP8D is the logic module used in PanelView Plus 6 operator terminals, providing the core processing and communication functions required for industrial HMI operation. As the central computing component of the system, it manages runtime execution, network communication, and application handling within Rockwell Automation’s PanelView Plus 6 architecture. It is widely used in maintenance and retrofit scenarios due to its modular design and field-proven reliability in industrial environments.

Technical Specifications

Parameter	Specification
Series	PanelView Plus 6
Model	2711P-RP8D
Function	Logic / Processing Module
Memory	512 MB RAM / 512 MB Flash
User Storage	~79 MB available application memory
Power Supply	24V DC
Communication	Ethernet, RS-232
USB Ports	1 × USB device, 2 × USB host
Software Support	FactoryTalk View ME
Operating System	Windows CE 6.0
Dimensions	155 × 35 × 105 mm
Weight	0.57 kg
Mounting Type	PanelView Plus 6 terminal integration module

Recommended Related Models

Model	Product Name
2711P-RP8A	Allen-Bradley PanelView Plus Logic Module (Alternate Revision)
2711P-RP1	Allen-Bradley PanelView Plus Logic Module Base Version
2711P-RP2	Allen-Bradley PanelView Plus Logic Module Standard Memory
2711P-RDT10C	Allen-Bradley PanelView Plus 6 1000 Terminal Display Unit

Popular Related Models

Model	Product Name
2711P-T10C4D8	Allen-Bradley PanelView Plus 7 1000 HMI Terminal
2711P-T7C4D8	Allen-Bradley PanelView Plus 7 700 HMI Terminal
2711R-T4T	Allen-Bradley PanelView 800 Compact HMI
2711-K10C8	Allen-Bradley PanelView 1000 Keypad Operator Interface

Applications

• Replacement logic core module for PanelView Plus 6 700–1500 HMI systems

• Repair and refurbishment of industrial operator interface terminals in production environments

• Maintenance of legacy Rockwell Automation HMI systems using Windows CE architecture

• Upgrade or swap-out module in PanelView Plus 6 display units with communication or boot failures

• Industrial automation service operations requiring fast HMI restoration without full terminal replacement

• Spare part inventory for OEM machine support and long-term lifecycle maintenance programs

Key Advantages

• Central processing unit for PanelView Plus 6 terminals ensuring stable HMI runtime execution

• Integrated communication support for Ethernet and RS-232 industrial networks

• High-capacity memory architecture improves application stability and runtime performance

• Modular design enables fast replacement without changing full HMI hardware assembly

• Supports FactoryTalk View ME runtime environments for consistent visualization performance

• Built-in diagnostic indicators simplify troubleshooting and maintenance procedures

• Proven industrial lifecycle design widely used in installed base automation systems

Technical FAQs

Q1: What is the main function of the 2711P-RP8D?
It acts as the logic and processing module for PanelView Plus 6 operator terminals.

Q2: Which PanelView systems is it compatible with?
It is used in PanelView Plus 6 700–1500 series terminals.

Q3: Can it be replaced independently?
Yes, it is a modular component and can be replaced without replacing the full HMI.

Q4: Does it store the HMI application?
Yes, it contains non-volatile memory for runtime applications and system data.

Q5: What communication ports are available?
It typically supports Ethernet and RS-232 communication interfaces.

Q6: Is it still in production?
No, it has been discontinued but remains widely used in existing systems.

Q7: What software is used with it?
It operates with FactoryTalk View Machine Edition runtime applications.

Q8: Can firmware updates improve performance?
Yes, firmware updates can improve stability and resolve runtime issues.

Q9: What is the most common failure symptom?
Boot loop issues or communication failure in HMI terminals.

Q10: Is it better to replace the full HMI or only the module?
If the display is functional, replacing only the logic module is usually more cost-effective.
