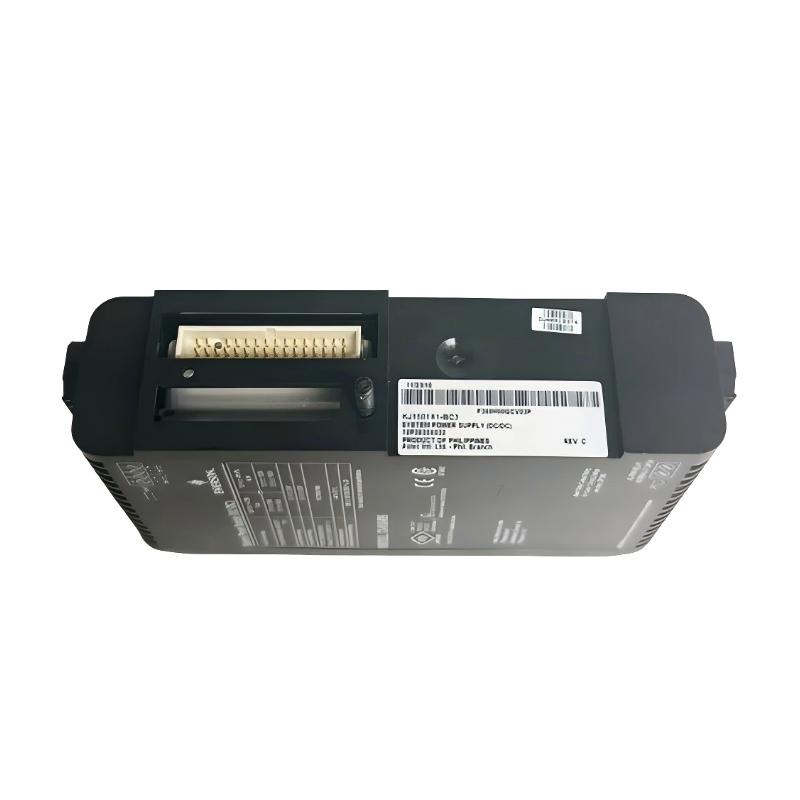

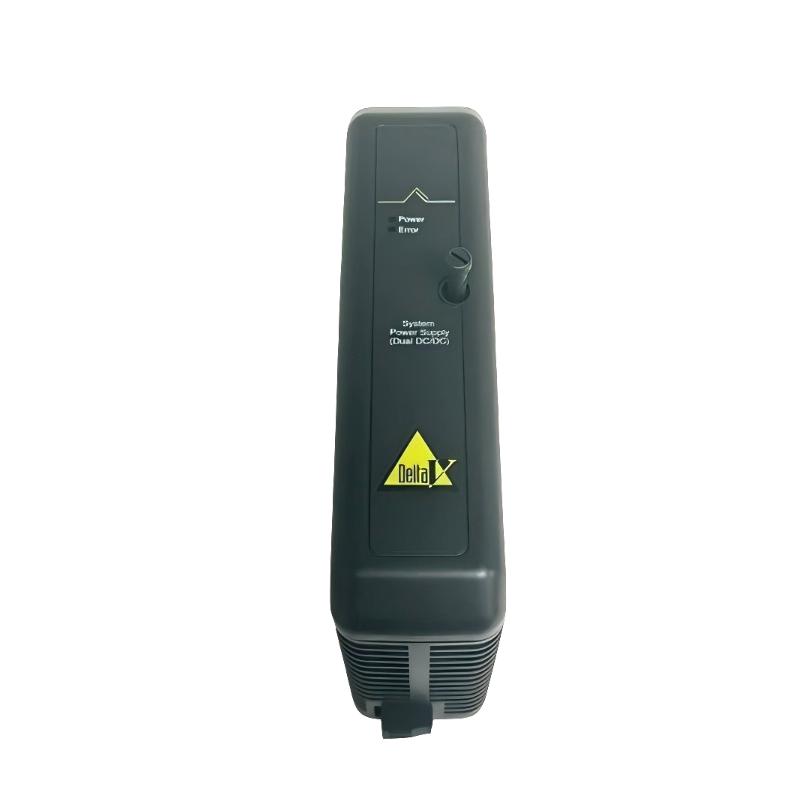

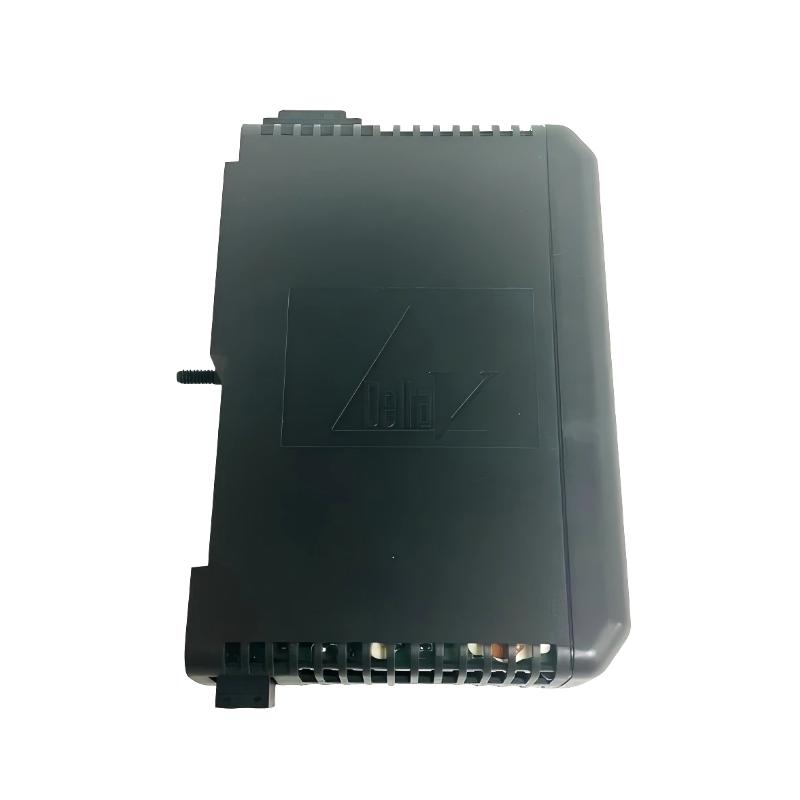

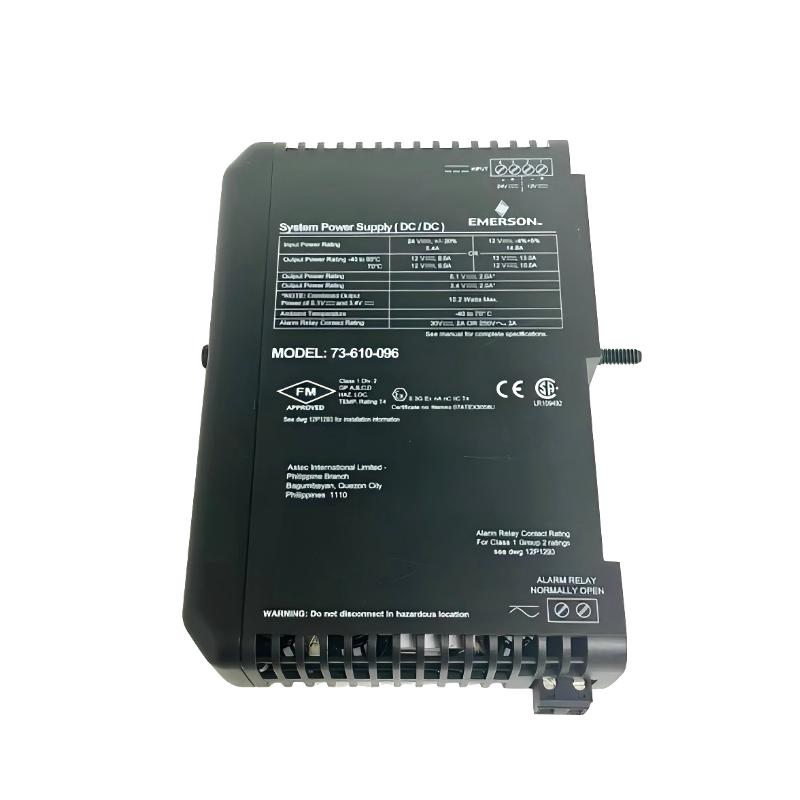

The Emerson VE5001 KJ1501X1-BA1 is a Dual-Channel Redundant Power Supply Module designed for the Emerson DeltaV™ Distributed Control System (DCS). It provides stable and reliable power to DeltaV controllers, I/O modules, communication interfaces, and other critical system components, ensuring continuous operation in demanding industrial environments.
The module features a redundant architecture, allowing high-availability system configurations and minimizing the risk of process interruptions caused by power supply failures. It also supports hot-swapping for simplified maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE5001 KJ1501X1-BA1 |
| Module Type | Power Supply Module |
| System Platform | DeltaV M-Series |
| Function | System power distribution |
| Input Voltage | 85–264 VAC, 47–63 Hz |
| Output Voltage | 24 VDC |
| Output Current | Up to 40 A |
| LocalBus Power | 12 VDC @ 100 mA |
| Field Circuit Power | 24 VDC @ 5 mA per channel |
| Redundancy | Dual-channel redundant design |
| Hot Swap | Supported |
| Protection | Overload and fault protection |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Mounting Type | DeltaV system carrier/rack mounted |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 150 × 150 × 90 mm |
| Weight | Approx. 0.53 kg |
Dimensions and weight may vary slightly depending on assembly revision.
Key Features
- Dual-channel redundant power supply design
- Provides reliable power for DeltaV system components
- Supports hot-swappable replacement
- Wide AC input voltage range
- High efficiency and low heat generation
- Industrial-grade reliability
- Designed for continuous process control applications
- Supports high-availability DeltaV architectures
