Brand:Schneider PLC Item No.:ATV320U22M2C Product Origin:France Product Dimensions:158 x 105 x 142 mm Product Weight:1.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

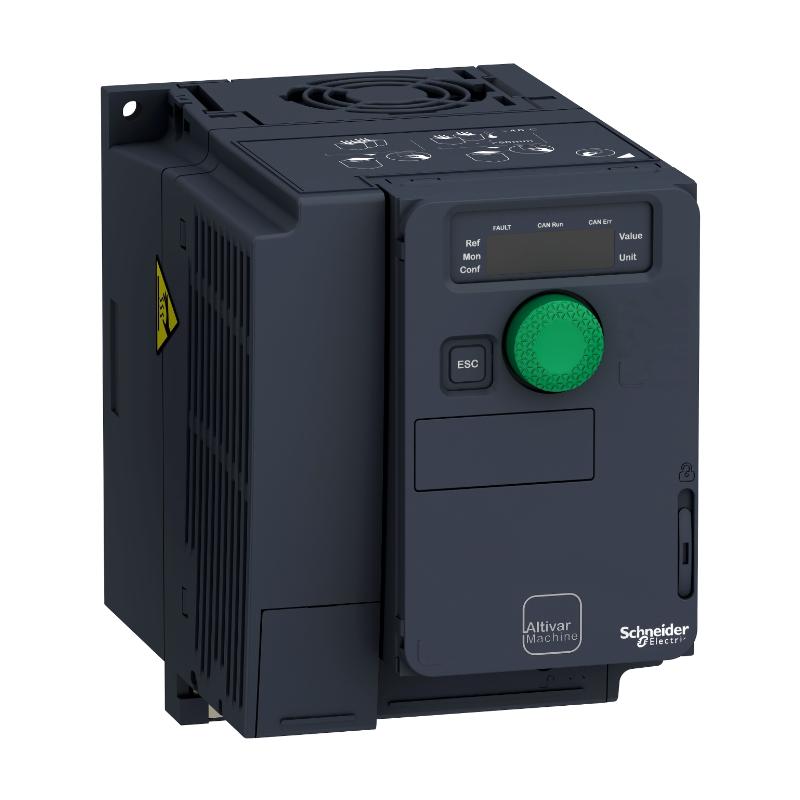

The Schneider ATV320U22M2C is a compact variable speed drive designed for efficient and precise motor control in industrial automation systems. It is part of the Altivar Machine ATV320 series, known for its flexibility, robustness, and ease of integration.
This drive is widely used in pumps, fans, conveyors, and machine-building applications where stable motor speed regulation is essential. Its compact design, combined with advanced control algorithms and integrated safety functions, makes it suitable for modern industrial environments requiring both performance and reliability.
Technical Specifications
Item
Value
Product Model
ATV320U22M2C
Type
Variable Speed Drive (VFD)
Series
Altivar Machine ATV320
Supply Voltage
200–240 V AC (1-phase)
Motor Power
2.2 kW
Output Current
11 A
Control Method
Sensorless Vector / V/F Control
Communication
Modbus + optional fieldbus modules
Safety Function
Safe Torque Off (STO)
EMC Filter
Integrated Class C2
Protection Class
IP20
Cooling
Forced air cooling
Dimensions
158 × 105 × 142 mm
Weight
1.6 kg
Recommended Related Models
Model
Product Name
ATV320U30M2C
Variable Speed Drive 3.0 kW
ATV320U22M3C
Three-phase Input Version
ATV320D11M2C
Compact VFD 1.1 kW
ATV320U40M2C
Higher Power VFD Model
Popular Related Models
Model
Product Name
ATV320D07M2C
Small Motor Drive
ATV320U15M2C
Medium Power VFD
ATV320U55M2C
Heavy Duty VFD
ATV320U75M2C
High Power Industrial Drive
Applications
• Industrial Motor Speed Control Systems
Used to regulate speed and torque of three-phase and single-phase asynchronous motors in automation systems.
• Pumps, Fans, and HVAC Systems
Provides energy-efficient speed control for fluid handling and air movement applications.
• Manufacturing Equipment
Applied in conveyors, packaging machines, and light industrial automation lines requiring stable motor control.
• Machine Integration Systems
Suitable for OEM machine builders requiring compact and flexible variable speed control solutions.
Key Advantages
• Compact High-Performance Design
Delivers 2.2 kW motor control capability in a space-saving industrial housing.
• Advanced Motor Control Modes
Supports sensorless vector control and V/F control for flexible application performance.
• Integrated Safety Functions
Includes Safe Torque Off (STO) for enhanced operational safety compliance.
• Flexible Communication Options
Supports Modbus and multiple industrial fieldbus extensions for system integration.
Technical FAQs
Q1 What is the main function of the ATV320U22M2C?
A: It is a variable speed drive used to control motor speed, torque, and direction in industrial applications.
Q2 What type of motors can it control?
A: It supports both asynchronous and synchronous AC motors.
Q3 What is its rated power?
A: It is rated for 2.2 kW motor applications.
Q4 What supply voltage does it require?
A: It operates on a single-phase 200–240 V AC supply.
Q5 Does it support industrial communication protocols?
A: Yes, it supports Modbus and optional fieldbus communication modules.
Q6 Is it suitable for harsh environments?
A: Yes, it is designed for industrial environments with coated PCBs for protection.
Q7 Does it include safety functions?
A: Yes, it includes Safe Torque Off (STO) functionality.
Q8 What control methods does it support?
A: It supports sensorless vector control and voltage/frequency (V/F) control.
Q9 What industries commonly use this drive?
A: It is widely used in manufacturing, HVAC, water systems, and OEM machinery.
Q10 Can it be used in energy-saving applications?
A: Yes, it improves energy efficiency by adjusting motor speed to process demand.
