Brand:Schneider PLC Item No.:TM200C40R Product Origin:France Product Dimensions:175 x 75.5 x 90 mm Product Weight:0.504 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

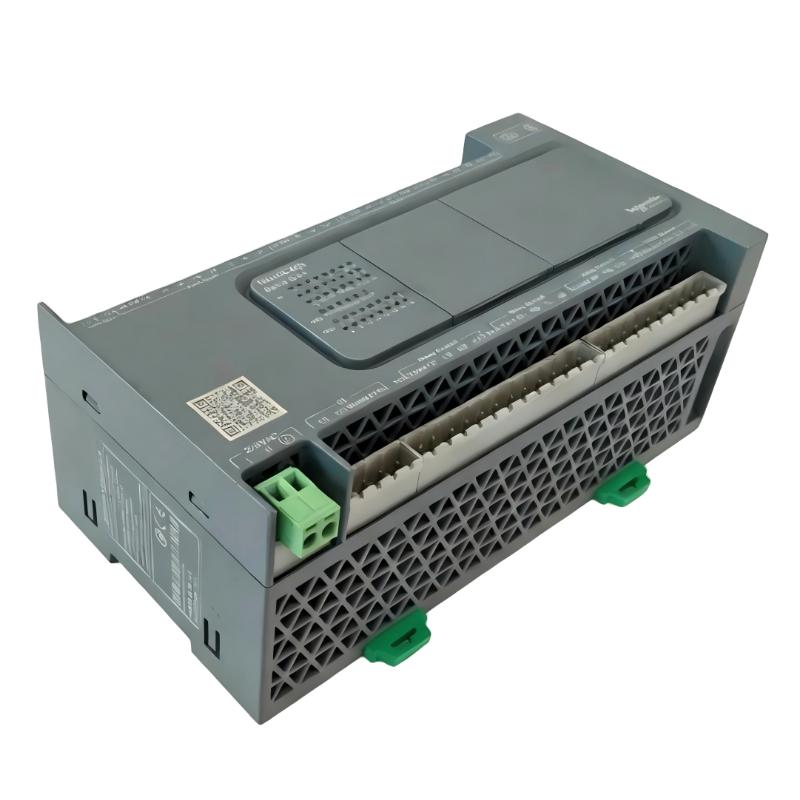

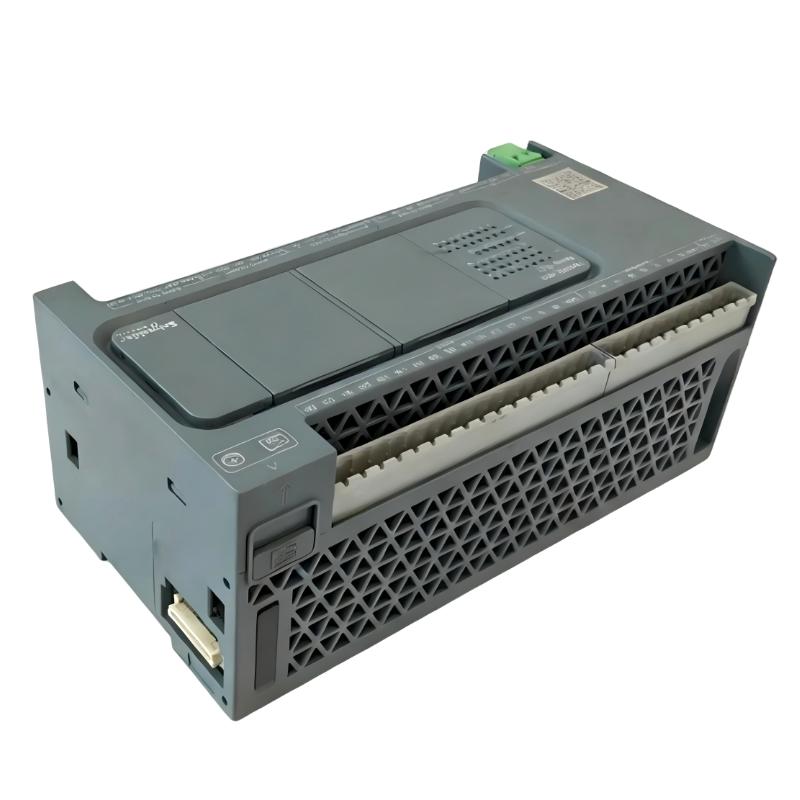

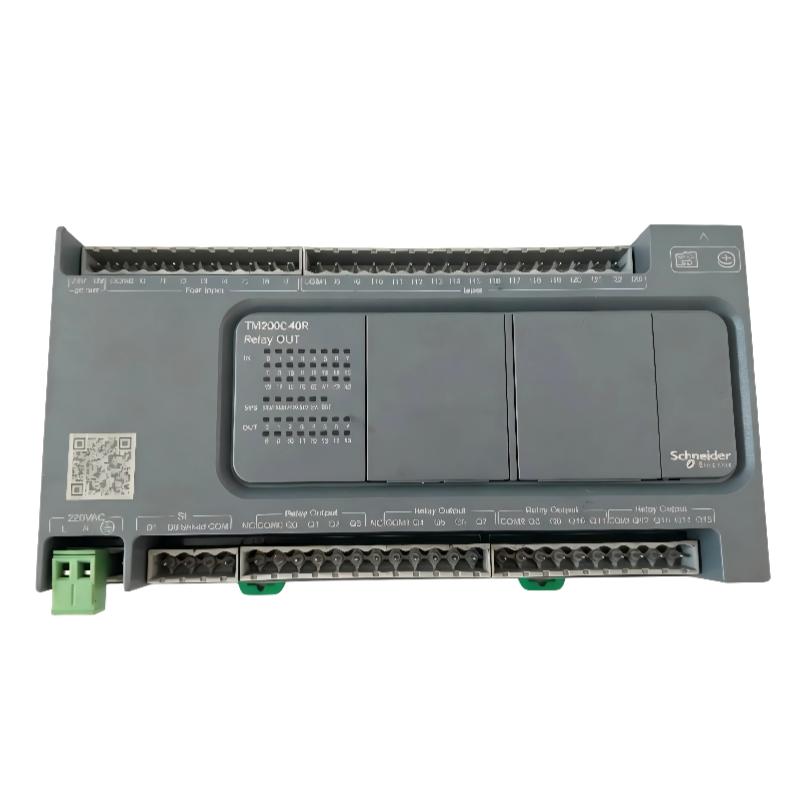

The Schneider TM200C40R is a compact logic controller from the Modicon Easy M200 series designed for small and medium-scale industrial automation applications. It integrates multiple digital inputs and relay outputs into a single controller, making it suitable for machine-level control tasks.
Technical Specifications
Item
Value
Product Model
TM200C40R
Type
Logic Controller (PLC)
Series
Modicon Easy M200
I/O Points
40 discrete I/O
Input Type
Digital inputs (24 V DC)
Output Type
Relay outputs
Output Load
AC/DC switching capability
Supply Voltage
100–240 V AC
Communication
USB, Serial (RS232/RS485)
Memory
Internal flash + micro SD support
Expansion Capability
Supported

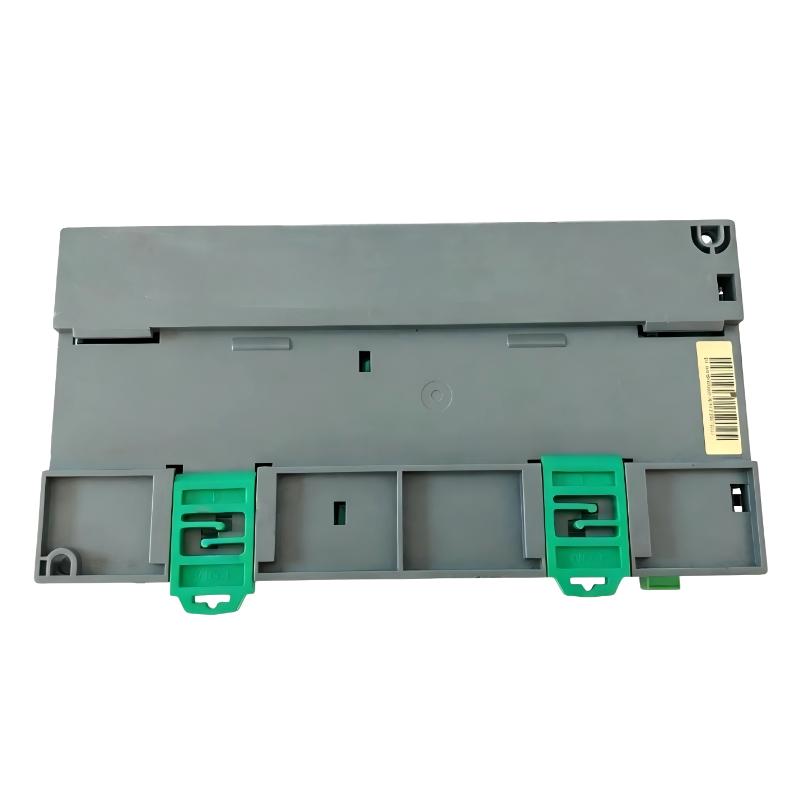

Mounting
DIN rail
Protection Class
IP20
Dimensions
175 × 70 × 90 mm
Weight
0.504 kg
Recommended Related Models
Model
Product Name
TM200C24R
Compact Logic Controller 24 I/O
TM221CE40R
Advanced Compact PLC Controller
TM200C60R
Expanded I/O Logic Controller
TM200C40T
Transistor Output PLC Version
Popular Related Models
Model
Product Name
TM221CE16R
Compact PLC Controller
TM221CE24R
Mid-range Logic Controller
TM241C40R
Advanced Motion PLC Controller
TM200C16R
Entry-level PLC Controller
Applications
• Compact Machine Automation Systems
Used in small to medium industrial machines requiring integrated logic control with multiple I/O points.
• Packaging & Material Handling Systems
Controls conveyors, sorting systems, and packaging equipment with coordinated digital I/O processing.
• Pumping & Fluid Control Systems
Applied in pump stations and water control systems for automated start/stop and interlock logic.
• OEM Industrial Equipment
Widely used by machine builders for cost-effective embedded PLC control in standardized automation designs.
Key Advantages
• High I/O Density in Compact PLC Format
Integrates multiple input/output channels in a single controller, reducing cabinet space requirements.
• Flexible Communication Architecture
Supports serial and USB interfaces for programming, diagnostics, and system integration.
• Reliable Industrial Control Performance
Designed for stable operation in continuous industrial environments with deterministic logic execution.
• Expandable System Capability
Supports expansion modules to scale control capacity according to application needs.
Technical FAQs
Q1 What is the main function of the TM200C40R controller?
A: It is a logic controller used to manage industrial automation processes through digital inputs and outputs.
Q2 What type of applications is it suitable for?
A: It is used in packaging machines, conveyors, pumping systems, and small automation lines.
Q3 How many I/O points does it support?
A: It supports a total of 40 discrete I/O points with a mix of inputs and relay outputs.
Q4 What type of outputs does it use?
A: It uses relay-based outputs suitable for AC and DC switching loads.
Q5 What is the input power range?
A: It operates on a wide AC supply range from industrial control networks.
Q6 Can it be expanded with additional modules?
A: Yes, it supports expansion modules to increase I/O capacity.
Q7 What communication interfaces are available?
A: It includes USB and serial communication ports for programming and diagnostics.
Q8 Is it suitable for harsh environments?
A: Yes, it is designed for industrial environments with standard protection ratings.
Q9 What programming methods are supported?
A: It supports standard PLC programming languages such as Ladder Logic.
Q10 What is its main advantage in OEM machines?
A: It provides a cost-effective, compact, and scalable control solution for machine builders.
