Brand:Schneider PLC Item No.:TWDLCDE40DRF Product Origin:France Product Dimensions:157 x 70 x 90 mm Product Weight:0.525 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

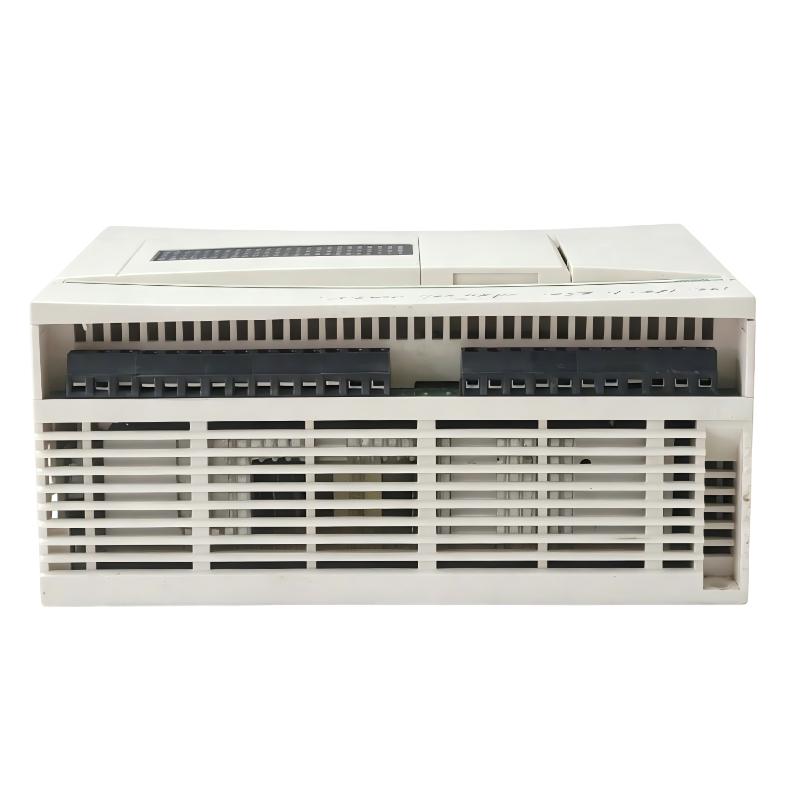

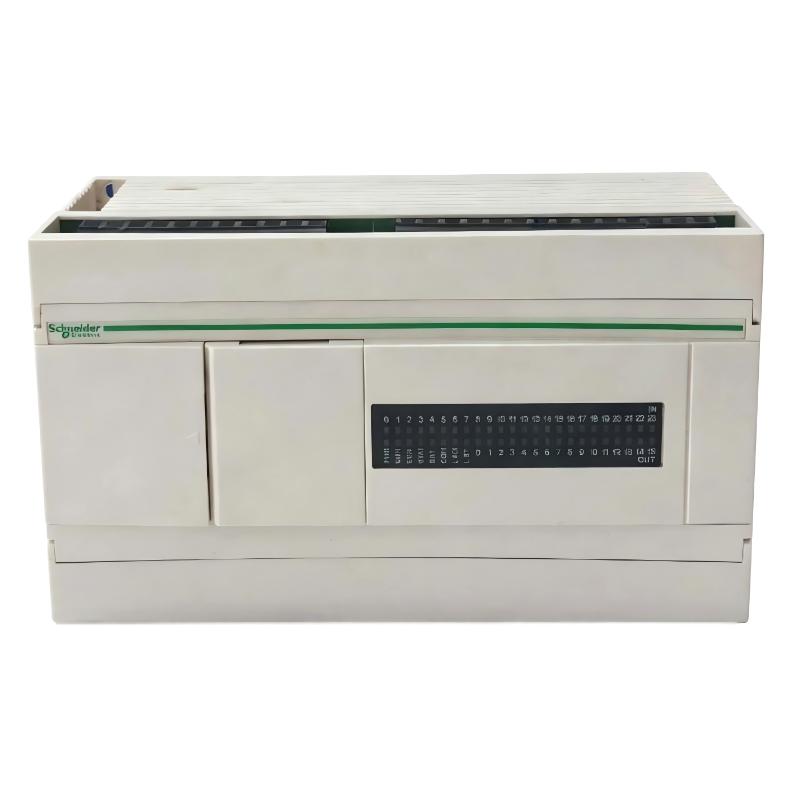

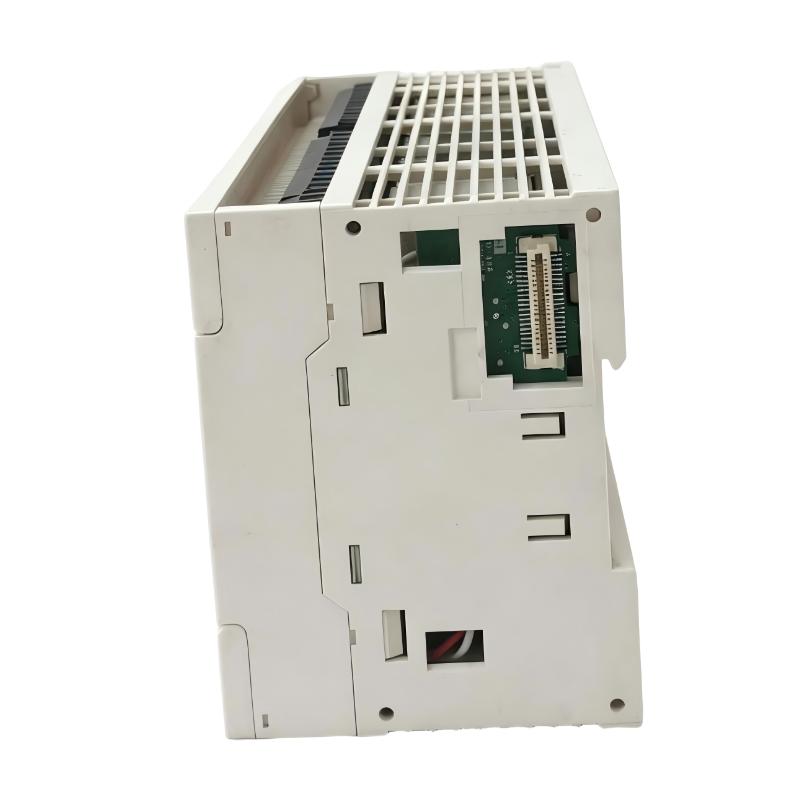

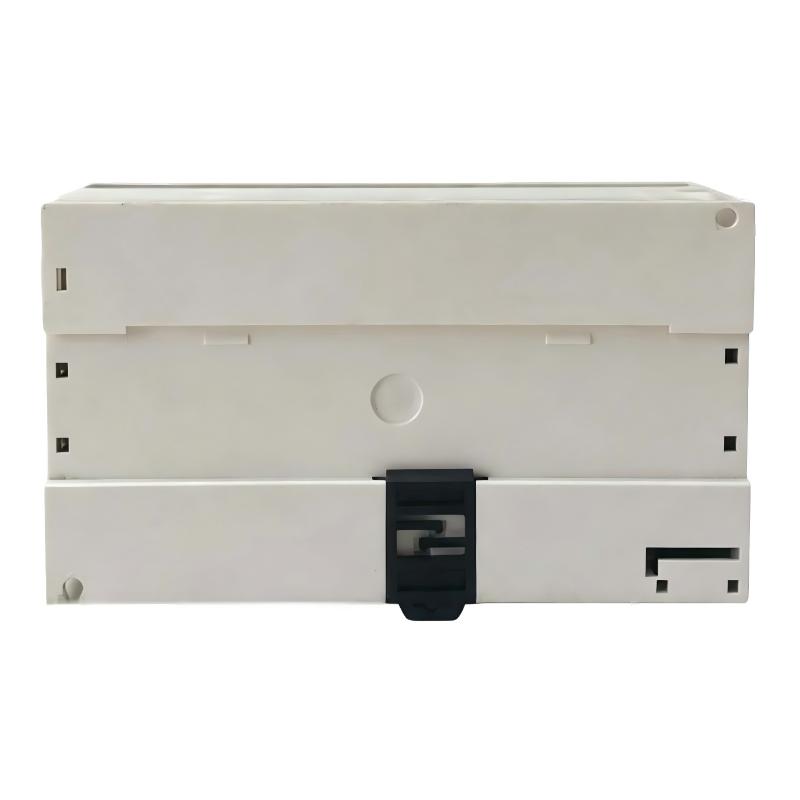

The Schneider TWDLCDE40DRF Compact Base Controller is a space-efficient PLC solution designed for machine-level automation and small industrial control systems. It integrates processing and I/O into a single compact unit, making it ideal for OEM applications where simplicity, reliability, and cost efficiency are important. With flexible communication and modular expansion capability, it provides a stable and practical control platform for a wide range of automation tasks.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Twido
Model Number
TWDLCDE40DRF
Product Type
Compact Base Controller (PLC)
Supply Voltage
24 V DC
Digital Inputs
24 × 24 V DC
Digital Outputs
16 (relay + transistor mix)
Total I/O Capacity
40 points
Expansion Modules
Up to 7 modules
Communication
Modbus serial
Program Memory
Internal PLC memory
Mounting Type
DIN rail / panel mount
Dimensions
157 × 70 × 90 mm
Weight
0.525 kg
Recommended Related Models
Model Number
Product Name
TWDLCAA40DRF
Twido Compact Base Controller 40 I/O AC Version
TM221CE40R
Modicon M221 Logic Controller
TM241CE40R
Modicon M241 Advanced PLC Controller
TM3DI16K
Modicon Digital Input Expansion Module
Popular Related Models
Model Number
Product Name
TM3DQ16T
Modicon Digital Output Module
TM3AI8
Modicon Analog Input Module
TM221CE16R
Modicon M221 Compact PLC
TM262L10MESE
Modicon M262 Motion Controller
Applications
• Used in small to medium-scale industrial automation systems for machine-level control and basic process logic execution.
• Commonly applied in packaging machines, conveyor systems, textile equipment, and light manufacturing automation.
• Suitable for standalone control applications requiring integrated I/O in a compact PLC architecture.
• Ideal for OEM equipment where cost-effective control and flexible I/O configuration are required.
Key Advantages
• Integrated 40 I/O compact architecture reduces the need for additional expansion modules.
• Built-in relay and transistor outputs provide flexible load control options.
• Compact design allows easy installation in space-limited control panels.
• Supports Modbus communication for integration with industrial networks and HMIs.
Technical FAQs
Q1: What is the main function of the TWDLCDE40DRF?
A: It is a compact PLC base controller used to execute automation logic and manage digital inputs and outputs.
Q2: How many I/O points does it support?
A: It supports 40 total I/O points, including 24 inputs and 16 outputs.
Q3: What type of outputs does it have?
A: It includes relay outputs and transistor outputs depending on configuration.
Q4: What is the supply voltage?
A: It operates on 24 V DC power supply.
Q5: Can it be expanded with additional modules?
A: Yes, it supports up to 7 expansion modules depending on configuration.
Q6: Does it support communication protocols?
A: Yes, it supports Modbus serial communication for industrial integration.
Q7: Is it suitable for small machines?
A: Yes, it is designed specifically for compact OEM and small automation systems.
Q8: Does it include built-in programming capability?
A: Yes, it executes user-defined control logic stored in internal memory.
Q9: Can it be used in continuous operation?
A: Yes, it is designed for industrial 24/7 operation environments.
Q10: Is it still widely used today?
A: It is considered a legacy Twido series controller but is still used in existing installed systems.
