Brand:Siemens Item No.:6AG1193-4CA40-2AA0 Product Origin:Germany Product Dimensions:15 × 157 × 43 mm Product Weight:0.083 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

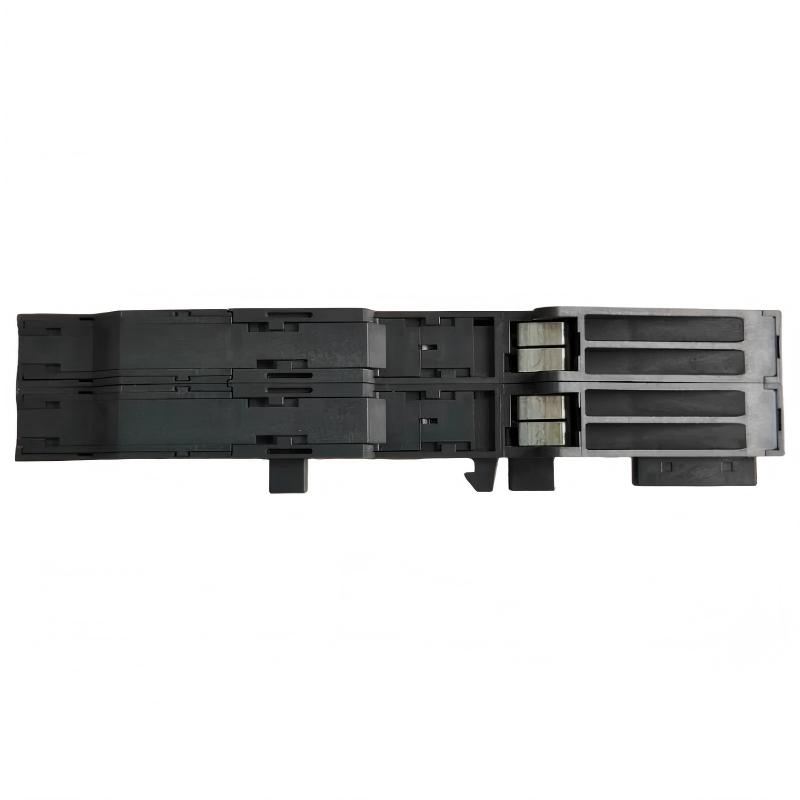

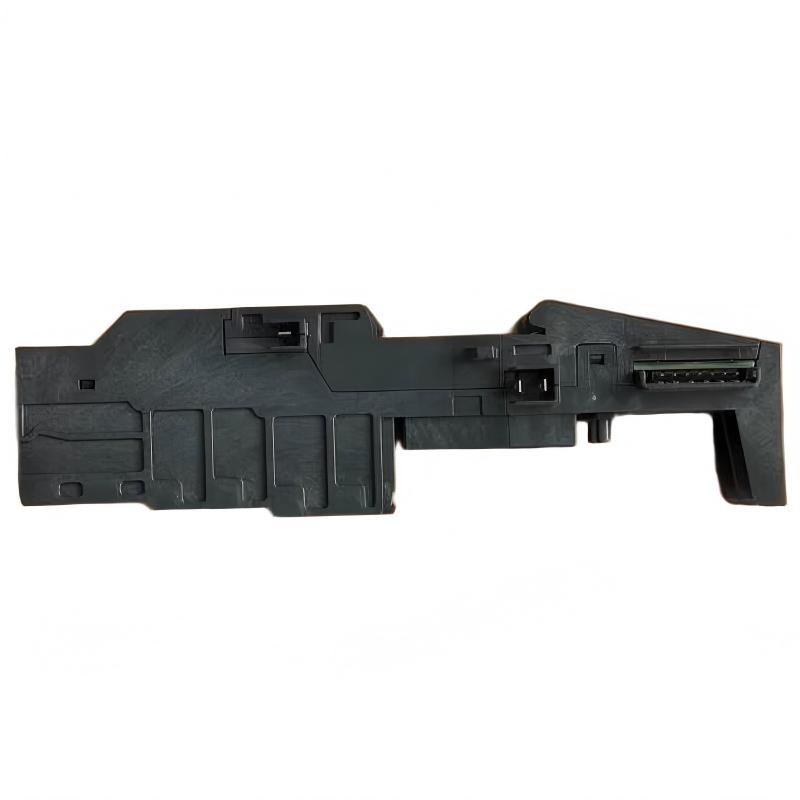

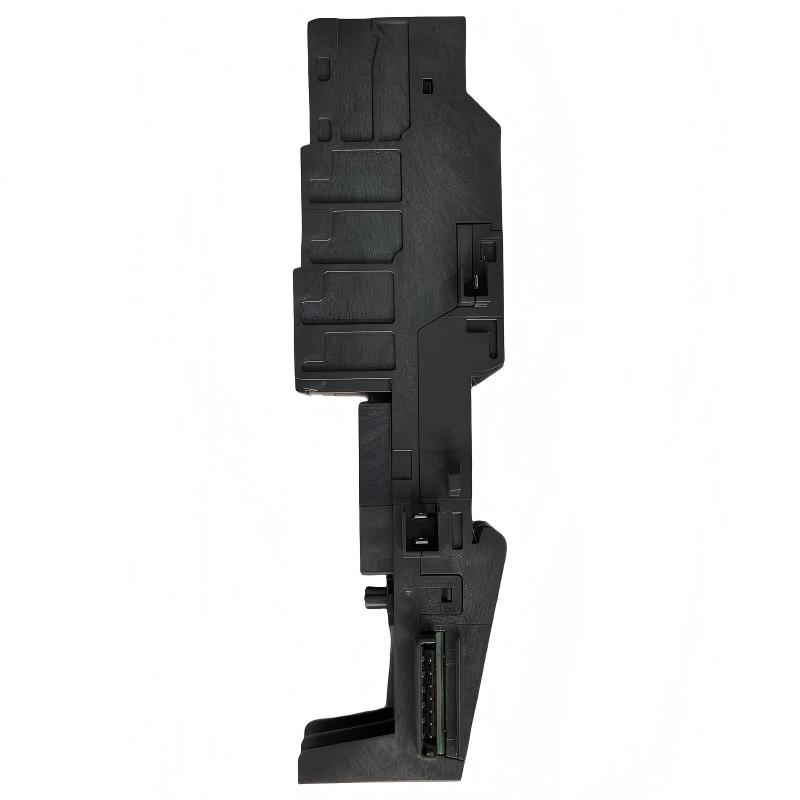

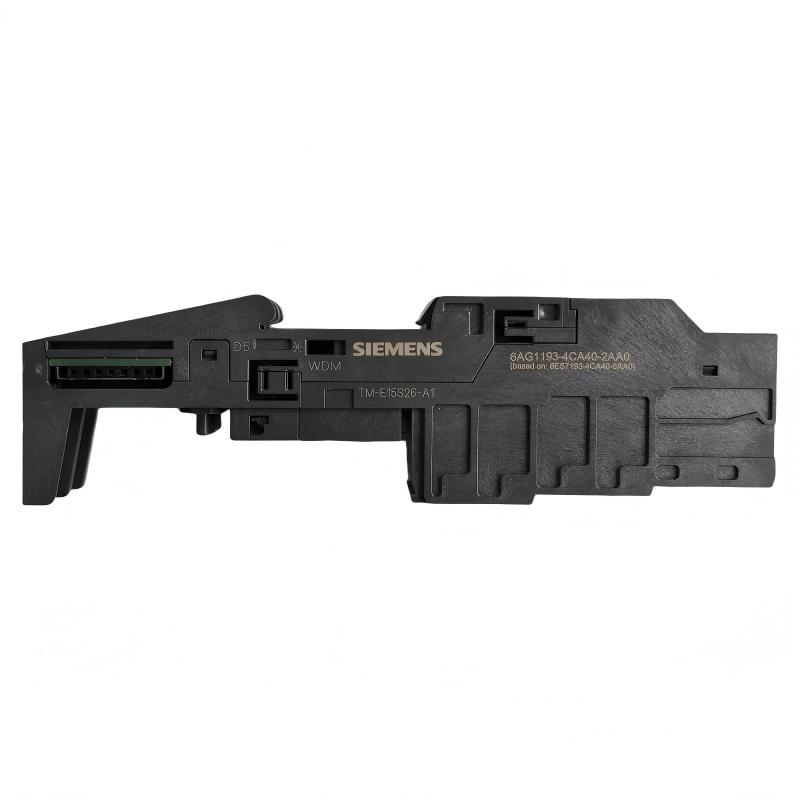

The Siemens 6AG1193-4CA40-2AA0 Terminal Module is part of the SIPLUS ET 200S distributed I/O system and is designated as the TM-E15S26-A1.
The module is based on the standard 6ES7193-4CA40-0AA0 and is specifically designed for ET 200S electronic modules with a 15 mm width. Its primary role is to provide the physical mounting arrangement and field-wiring interface for the corresponding electronic module.
A major feature of this model is its screw-terminal connection technology. The module provides 2 × 6 terminal connections, allowing field wiring to be connected through a conventional screw-terminal arrangement. It also provides terminal access to AUX1 and AUX1 continuous, which can be useful in ET 200S applications requiring auxiliary electrical distribution.
The SIPLUS version is differentiated by its conformal coating and extended environmental specifications. With an operating range of -40 to +70 °C, it is designed for industrial installations where temperature conditions may vary significantly.
The compact 15 mm module width also helps maintain a high-density ET 200S configuration. This is particularly valuable in control cabinets where available installation space is limited and a large number of distributed I/O channels must be accommodated.
The 6AG1193-4CA40-2AA0 is therefore well suited to industrial machinery, factory automation, distributed I/O systems, control cabinets, legacy ET 200S installations, field-wiring applications, and maintenance or replacement projects.
Technical Specifications
Parameter
Specification
Manufacturer
Siemens
Product Family
SIPLUS ET 200S
Product Type
Terminal Module
Terminal Module Type
TM-E15S26-A1
Model
6AG1193-4CA40-2AA0
Standard Base Model
6ES7193-4CA40-0AA0
Application
ET 200S Electronic Modules
Compatible Module Width
15 mm
Connection Type
Screw Terminals
Terminal Connections
2 × 6
Number of Terminal Connections
12
Terminal Access
AUX1, AUX1 Continuous
Conformal Coating
Yes
Operating Temperature
-40 to +70 °C
Dimensions
15 × 157 × 43 mm
Weight
0.083 kg / 0.18 lb
Packing Unit
5 units
System
ET 200S
Installation
ET 200S Modular Station
Function
Electrical and Mechanical Connection for Electronic Module
Recommended Related Models
Model
Description
6ES7193-4CA40-0AA0
SIMATIC ET 200S TM-E15S26-A1 terminal module
6AG1193-4CA40-2AA0
SIPLUS ET 200S TM-E15S26-A1 terminal module
6AG1193-4CA30-2AA0
SIPLUS ET 200S TM-E15C24-A1 terminal module with spring terminals
6AG1193-4CA50-2AA0
SIPLUS ET 200S TM-E15C26-A1 terminal module
6AG1193-4CB30-2AA0
SIPLUS ET 200S TM-E15C24-01 terminal module
6AG1193-4CB10-7AA0
SIPLUS ET 200S TM-E15C23-01 terminal module
6AG1193-4CL30-7AA0
SIPLUS ET 200S TM-E15C24-AT terminal module
Popular Related Models
6ES7193-4CA40-0AA0 – SIMATIC ET 200S TM-E15S26-A1
6AG1193-4CA40-2AA0 – SIPLUS ET 200S TM-E15S26-A1
6AG1193-4CA30-2AA0 – SIPLUS ET 200S TM-E15C24-A1
6AG1193-4CA50-2AA0 – SIPLUS ET 200S TM-E15C26-A1
6AG1193-4CB30-2AA0 – SIPLUS ET 200S TM-E15C24-01
6AG1193-4CB10-7AA0 – SIPLUS ET 200S TM-E15C23-01
6AG1193-4CB70-7AA0 – SIPLUS ET 200S TM-E15N24-01
6AG1193-4CD30-2AA0 – SIPLUS ET 200S TM-P15C23-A0
Applications
The Siemens 6AG1193-4CA40-2AA0 is a SIPLUS ET 200S TM-E15S26-A1 terminal module designed for Siemens ET 200S electronic modules with a 15 mm module width. It is based on the standard 6ES7193-4CA40-0AA0 and uses screw terminals with 2 × 6 terminal connections, including access to AUX1 and AUX1 continuous.
As a SIPLUS component, the module features conformal coating and an extended temperature specification, making it suitable for demanding industrial automation environments.
ET 200S Distributed I/O Systems
The terminal module provides the electrical and mechanical connection required for compatible ET 200S electronic modules. It forms part of the modular ET 200S station architecture used for distributed field I/O.
Industrial Automation
The 6AG1193-4CA40-2AA0 can be used in production machinery, assembly systems, packaging equipment, conveyor systems, and other industrial installations using ET 200S distributed I/O.
Control Cabinet Installations
With a compact 15 mm width, the terminal module allows ET 200S stations to maintain a high component density while keeping field wiring organized.
Screw-Terminal Field Wiring
The screw-terminal configuration is suitable for applications where conventional screw connections are preferred for field wiring. The 2 × 6 terminal arrangement provides dedicated connection points for compatible electronic modules.
Auxiliary Bus Applications
The module provides access to AUX1 and AUX1 continuous, making it suitable for ET 200S configurations that require auxiliary electrical distribution through the terminal-module architecture.
Harsh Industrial Environments
The SIPLUS version incorporates conformal coating and is specified for an extended temperature range of -40 to +70 °C, making it suitable for industrial installations exposed to challenging environmental conditions.
Maintenance and Replacement
The 6AG1193-4CA40-2AA0 can be used as a replacement terminal module in compatible ET 200S installations, helping maintenance teams keep legacy distributed I/O systems operational.
Advantages
SIPLUS Environmental Design
The conformal-coated construction provides additional protection for the module and makes it more suitable for industrial environments where environmental exposure is a concern.
Wide Temperature Range
The specified -40 to +70 °C temperature range provides greater environmental flexibility than many standard control components.
Screw-Terminal Connection
The screw-terminal design provides a familiar and serviceable field-wiring solution for industrial electricians and maintenance technicians.
2 × 6 Terminal Connections
The module provides 12 terminal connection points arranged as two groups of six, giving compatible ET 200S electronic modules an organized field connection interface.
AUX1 and AUX1 Continuous Access
Access to AUX1 and AUX1 continuous provides additional flexibility for auxiliary power or potential distribution within the ET 200S station architecture.
Compact Construction
Although the terminal module is 157 mm high, its 15 mm width allows high-density installation in ET 200S systems.
Compatibility with 15 mm Electronic Modules
The TM-E15S26-A1 is specifically designed for 15 mm wide ET 200S electronic modules, making module matching straightforward when maintaining an existing system.
Practical Maintenance Solution
For older ET 200S installations, maintaining compatible terminal modules can reduce replacement complexity and help minimize downtime during field service.
Technical FAQs
1. What is the Siemens 6AG1193-4CA40-2AA0?
The 6AG1193-4CA40-2AA0 is a Siemens SIPLUS ET 200S TM-E15S26-A1 terminal module designed for compatible 15 mm wide ET 200S electronic modules.
2. What standard module is the 6AG1193-4CA40-2AA0 based on?
The SIPLUS terminal module is based on the standard 6ES7193-4CA40-0AA0.
3. What type of terminals does the module use?
The module uses screw terminals rather than spring-loaded terminals.
4. How many terminal connections are available?
The TM-E15S26-A1 provides 2 × 6 terminal connections, giving a total of 12 terminal connection points.
5. Does the module provide AUX1 access?
Yes. The 6AG1193-4CA40-2AA0 provides terminal access to AUX1 and AUX1 continuous.
6. What width of electronic module is compatible with this terminal module?
The terminal module is designed for ET 200S electronic modules with a 15 mm width.
7. Does the 6AG1193-4CA40-2AA0 have conformal coating?
Yes. This SIPLUS version uses conformal coating to provide enhanced environmental protection.
8. What is the operating temperature range?
The product specification identifies an operating temperature range of -40 to +70 °C.
9. Is the 6AG1193-4CA40-2AA0 an electronic I/O module?
No. It is a terminal module. Its function is to provide the electrical and mechanical interface for a compatible ET 200S electronic module and its field wiring.
10. Can this terminal module be used with ET 200SP?
No. The 6AG1193-4CA40-2AA0 belongs to the ET 200S family. It should not be substituted directly with an ET 200SP terminal module. The electronic module type and complete station architecture should be verified before replacement.
