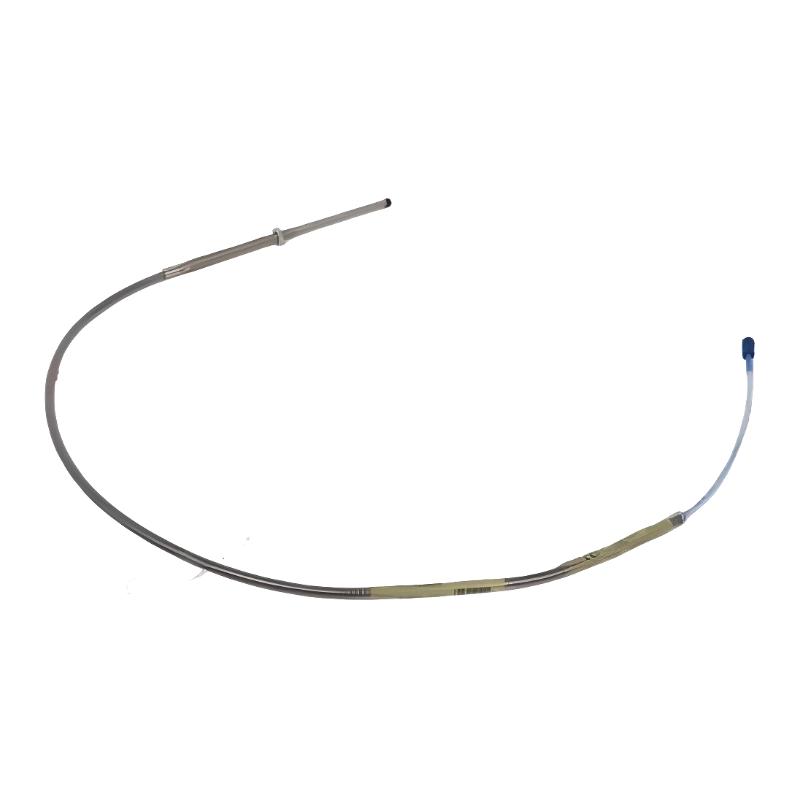

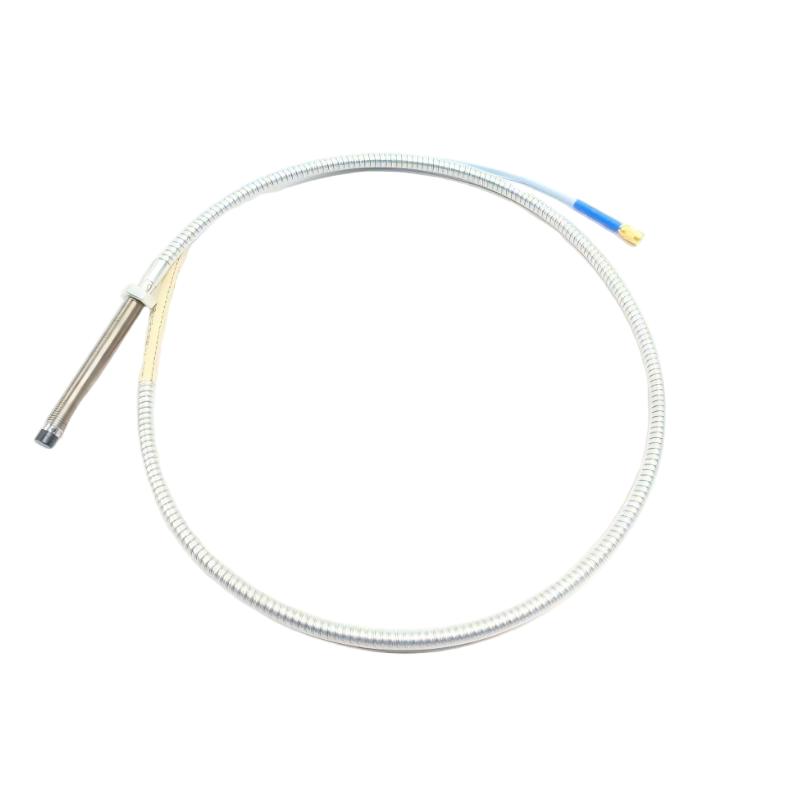

The Bently Nevada 330102-20-47-10-02-00 Proximity Probe is a member of the industry-proven 3300 XL 8 mm Proximity Transducer System, designed for accurate, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating equipment.
This configuration incorporates a 4.7-inch case length with a 2.0-inch unthreaded section, making it well-suited for installations requiring additional standoff distance between the mounting location and the measurement target. Its rugged stainless-steel construction and eddy-current sensing technology provide reliable long-term performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-20-47-10-02-00 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Principle | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 2.0 in |
| Case Length | 4.7 in |
| System Length | 1.0 m |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | Shielded Coaxial Cable |
| Function | Shaft Vibration, Position, Displacement |
| System Compatibility | Bently Nevada 3300 XL Systems |
| Material | Stainless Steel |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Case Length | 4.7 in (119.4 mm) |
| Unthreaded Length | 2.0 in (50.8 mm) |
| System Cable Length | 1.0 m |
| Approximate Weight | 0.35–0.60 kg |
| Construction | Stainless Steel |
