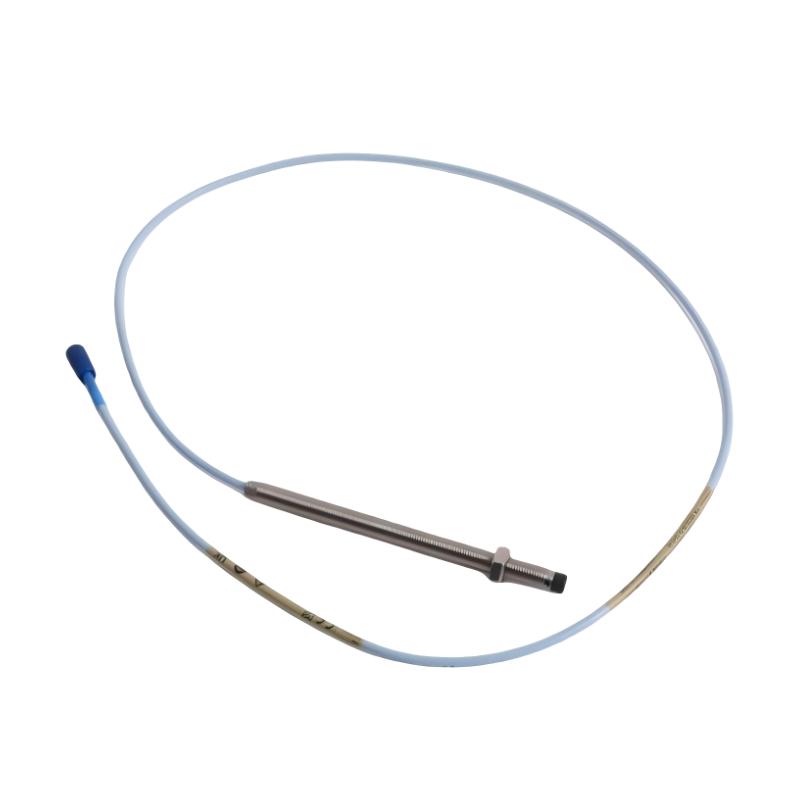

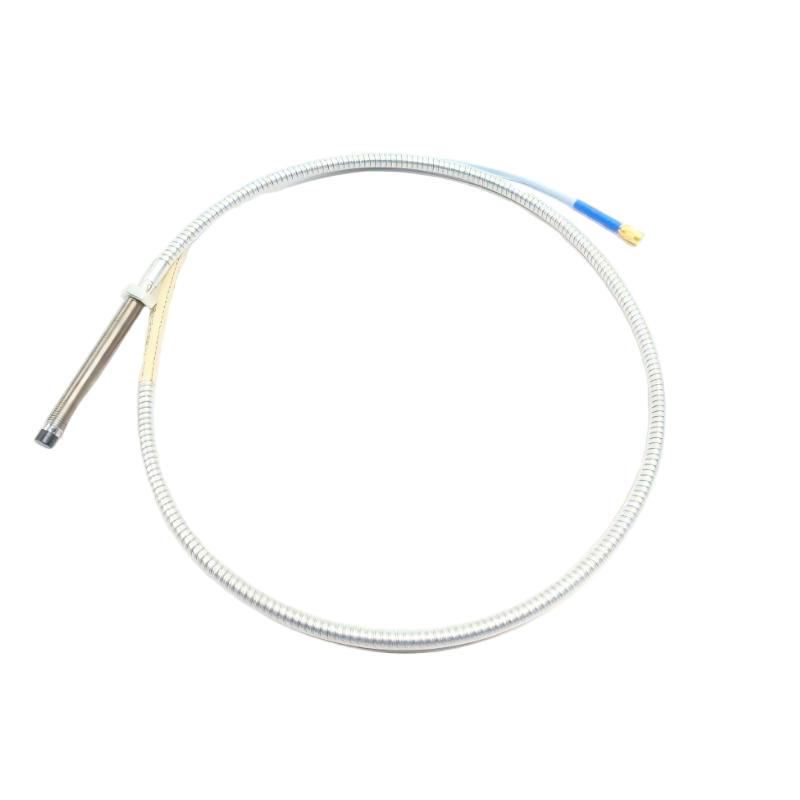

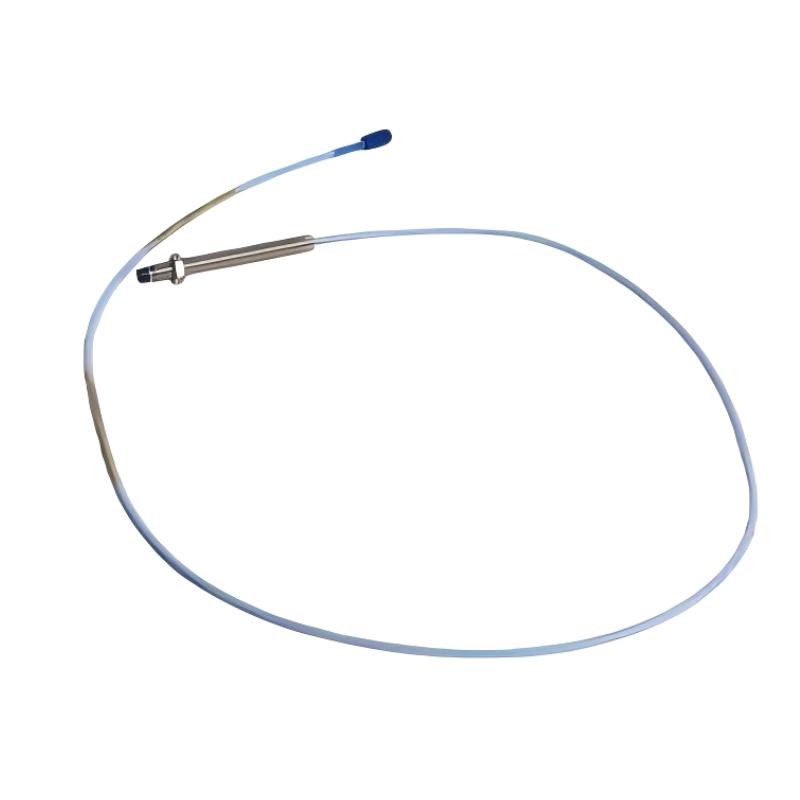

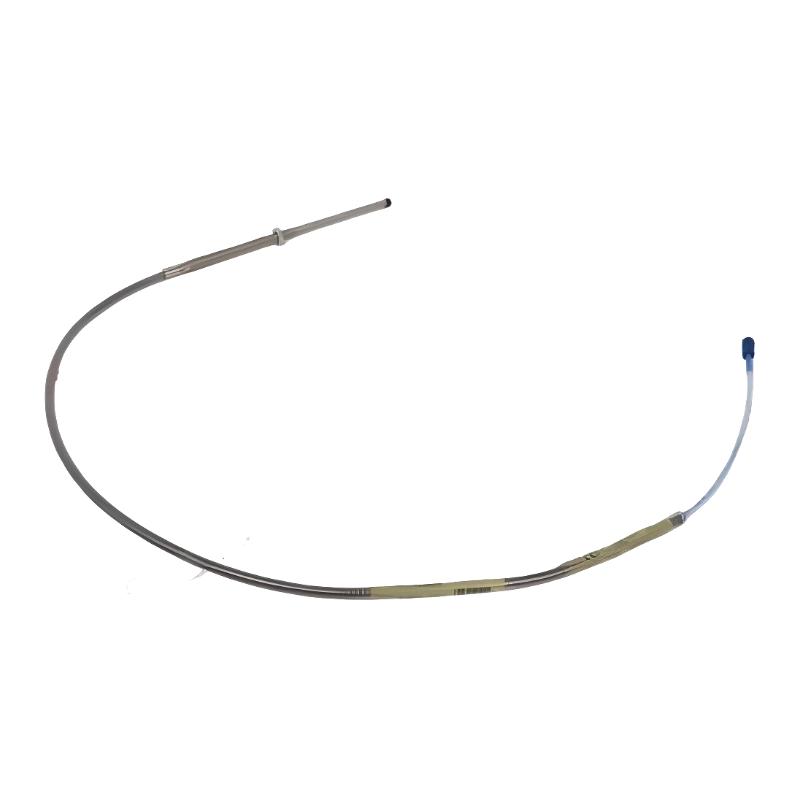

The Bently Nevada 330102-24-10-02-05 is part of the 3300 XL 8 mm proximity probe family, designed for precise non-contact measurement of shaft vibration and position in rotating machinery. It is typically used as one element of a complete proximity transducer system together with a Proximitor sensor and extension cable.
This probe is engineered for industrial condition monitoring applications where measurement stability, mechanical robustness, and long service life are required. It is commonly applied in turbines, compressors, pumps, and other critical rotating equipment where continuous monitoring is essential for asset protection and predictive maintenance strategies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-24-10-02-05 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm System |
| Measurement Principle | Eddy Current (Non-contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Probe Construction | Armored design |
| Connector Type | Miniature coaxial ClickLoc type |
| System Requirement | Requires Proximitor sensor + extension cable |
| Application | Vibration, displacement, position monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | Configuration-dependent (code “24”) |
| Case Length | Configuration-dependent |
| Total System Length | 1.0 m class system configuration |
| Net Weight | Approx. 0.30–0.35 kg (probe only class estimate) |
| Shipping Weight | Approx. 1.0–1.5 kg (packed assembly dependent) |
| Packaging Type | Industrial protective carton |
Note: The exact meaning of option codes (24 / 10 / 02 / 05) must be verified against the official Bently Nevada ordering guide for engineering-grade documentation. Length and configuration values may vary by production standard.
